| Item | Part No. | Part Name | Qty | Serial No. |
| (20T-54-00800) | OPERATOR'S CAB ASS'Y | 30001- | ||
| (20T-54-00850) | OPERATOR'S CAB ASS'Y | 30001- | ||
| (20T-54-00860) | OPERATOR'S CAB ASS'Y | 30001- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-07A0. | ||||

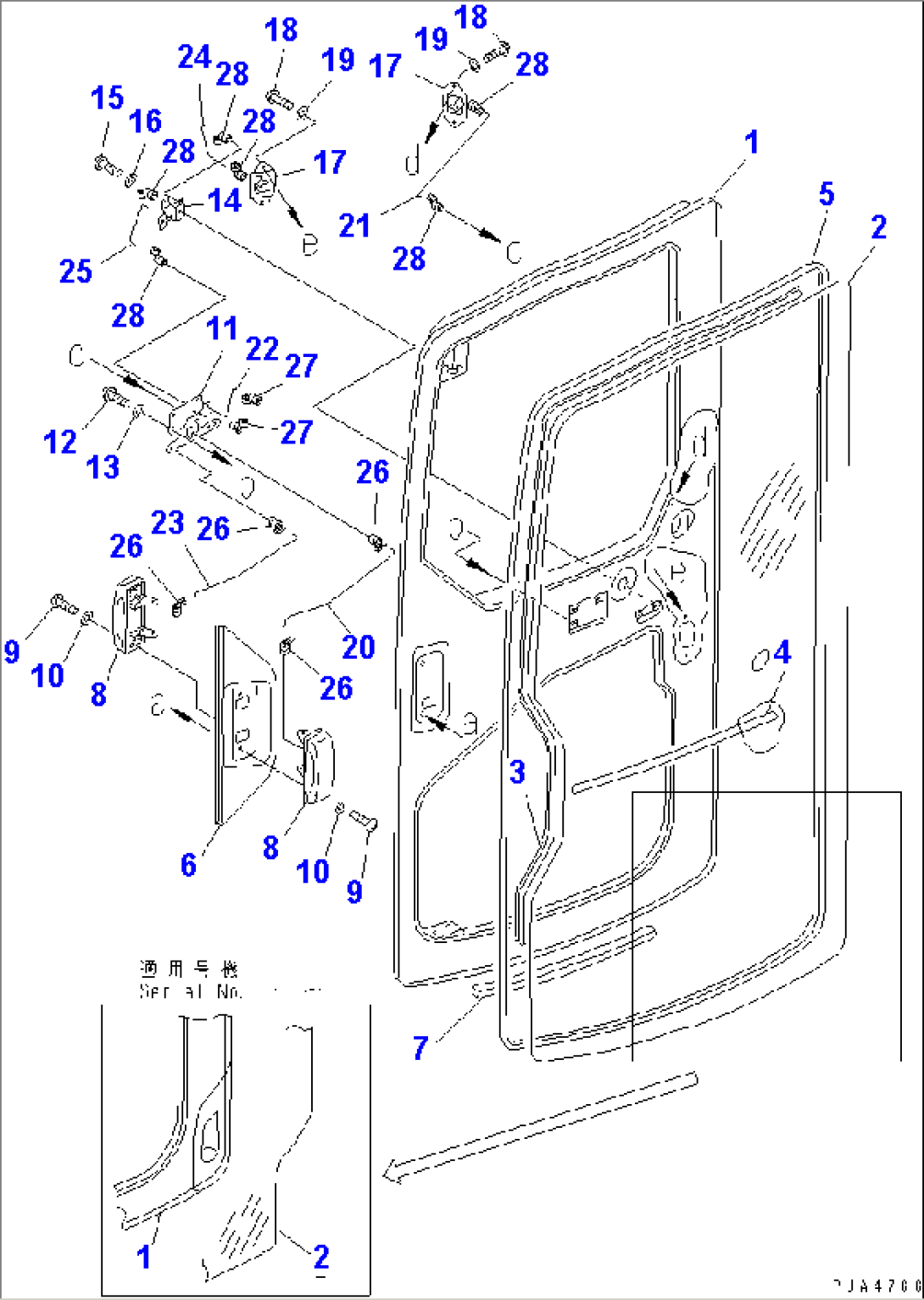

| 20U-54-00065 | DOOR ASS'Y | 31190- | ||
| 20U-54-00063 | DOOR ASS'Y | 30001-31189 | ||
| THESE ASSEMBLISE CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-04A0 AND K0210-05A0. | ||||
| 1 | 20U-54-24313 | DOOR | 31190- | |
| 1 | 20U-54-24312 | DOOR | 30001-31189 | |
| 2 | 20U-54-24343 | GLASS | 31190- | |
| 2 | 20U-54-24342 | GLASS,DOOR | 30001-31189 | |
| 3 | 20U-54-24411 | DAM,(L=3850) | 30001- | |
| 4 | 20U-54-24421 | DAM,(L=500) | 30001- | |
| 5 | 20U-54-24431 | TRIM | 30001- | |
| 6 | 20U-54-25471 | COVER | 30001- | |
| 7 | 20U-54-24451 | SEAL,DOOR, LOWER | 30001- | |
| 8 | 20U-54-24470 | HANDLE | 30001- | |
| 9 | 01220-70612 | SCREW | 30001- | |
| 10 | 01641-20608 | WASHER | 30001- | |
| 11 | 20U-54-24351 | REMOTE CONTROL A. | 30001- | |
| 12 | 01220-40608 | SCREW | 30001- | |
| 13 | 01643-30623 | WASHER | 30001- | |
| 14 | 20U-54-24390 | LINK ASS'Y | 30001- | |
| 15 | 01220-40608 | SCREW | 30001- | |
| 16 | 01643-30623 | WASHER | 30001- | |
| 17 | 20Y-54-14520 | LOCK ASS'Y | 30001- | |
| 18 | 01010-80616 | BOLT | 30001- | |
| 19 | 01643-30623 | WASHER | 30001- | |
| 20 | 20U-54-24362 | ROD,(OUT-RIMOC) | 30001- | |
| 21 | 20U-54-24371 | ROD,(RIMOC-LOCK) | 30001- | |
| 22 | 20U-54-25381 | ROD,(KEY CYLINDER) | 30001- | |
| 23 | 20U-54-25392 | ROD,(HANDLE-RIMOC) | 30001- | |
| 24 | 20U-54-25421 | ROD,(LINK-RIMOC) | 30001- | |
| 25 | 20U-54-25430 | ROD | 30001- | |
| 26 | 20U-54-25461 | SNAP | 30001- | |
| 27 | 205-54-71830 | SNAP | 30001- | |
| 28 | 205-54-71840 | SNAP | 30001- |
