| Item | Part No. | Part Name | Qty | Serial No. |
| (20U-54-00088) | CAB ASS'Y | 12802- | ||
| (20U-54-00087) | CAB ASS'Y | 12801-12801 | ||
| (20U-54-00086) | CAB ASS'Y | 12800-12800 | ||
| (20U-54-00085) | CAB ASS'Y | 12762-12799 | ||
| (20U-54-00081) | CAB ASS'Y | 10835-12761 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A1 TO K0210-08A1. | ||||
| (20U-54-00065) | DOOR ASS'Y | 12801- | ||
| (\0\20U-54-00064) | DOOR ASS'Y | 12800-12800 | ||
| (20U-54-00063) | DOOR ASS'Y | 12762-12799 | ||
| (\0\20U-54-00061) | DOOR ASS'Y | 10835-12761 | ||

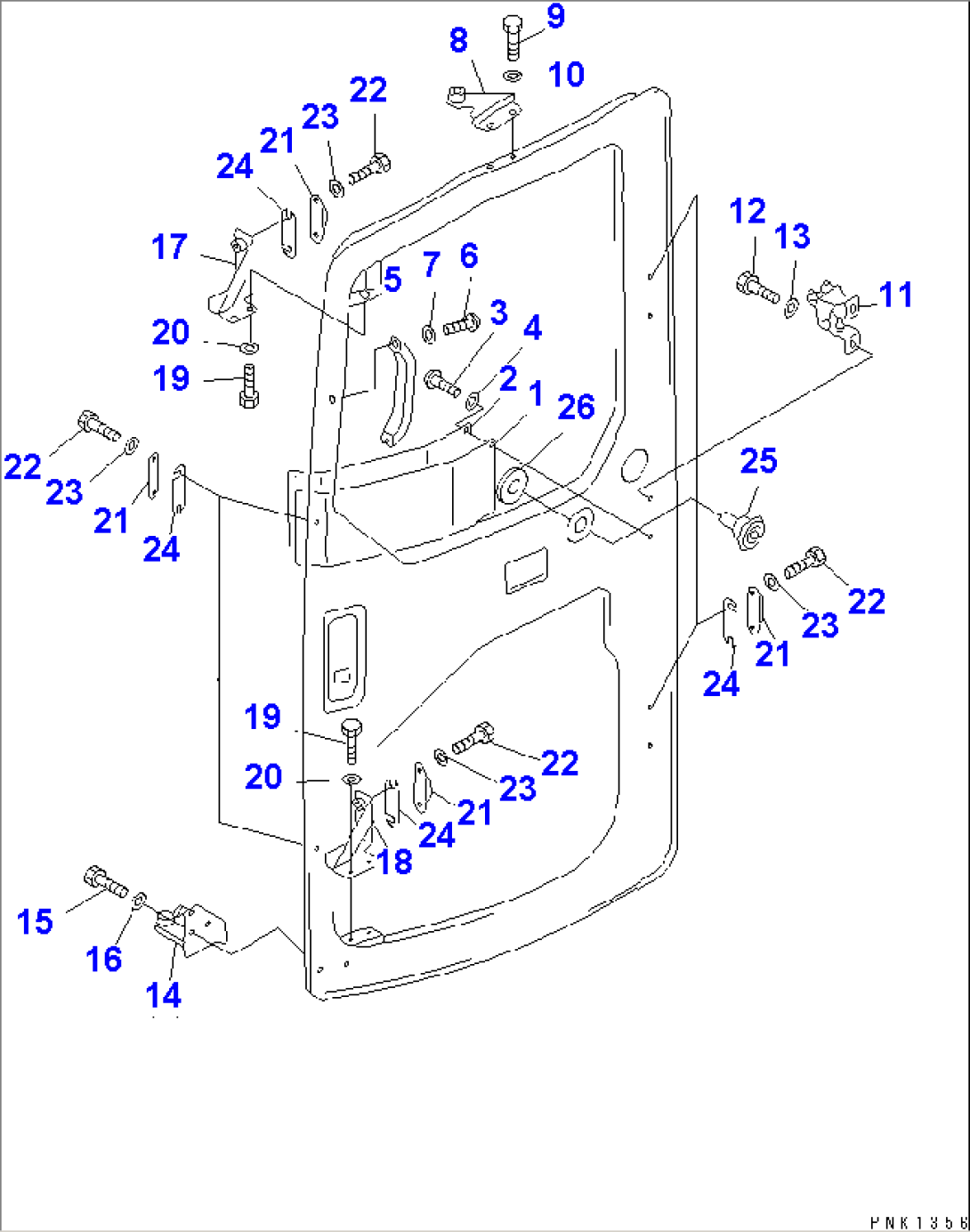

| THESE ASSEMBLISE CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-04A1 AND K0210-05A1. | ||||
| 1 | 21W-54-34460 | COVER | 12800- | |
| 1 | 20U-54-24461 | COVER | 10835-12799 | |
| 2 | 21W-54-34480 | PACKING,VINYL | 12800- | |
| 2 | 20U-54-25490 | COVER,VINYL | 10835-12799 | |
| 3 | 01220-70612 | SCREW | 10835- | |
| 4 | 01643-70623 | WASHER | 10835- | |
| 5 | 20U-54-25920 | GRIP | 12776- | |
| 5 | 20N-54-39980 | GRIP | 10835-12775 | |
| 6 | 01220-40512 | SCREW | 10835- | |
| 7 | 01601-20513 | WASHER | 10835- | |
| 8 | 20U-54-24911 | ROLLER ASS'Y,UPPER | 10835- | |
| 9 | 01010-80816 | BOLT | 10835- | |
| 10 | 01643-30823 | WASHER | 10835- | |
| 11 | 20U-54-24922 | ROLLER ASS'Y,CENTER | 12800- | |
| 11 | 20U-54-24921 | ROLLER ASS'Y,CENTER | 10835-12799 | |
| 12 | 01010-80816 | BOLT | 10835- | |
| 13 | 01643-30823 | WASHER | 10835- | |
| 14 | 20U-54-24933 | ROLLER ASS'Y,LOWER | 12800- | |
| 14 | 20U-54-24932 | ROLLER ASS'Y,LOWER | 12762-12799 | |
| 14 | 20U-54-24931 | ROLLER ASS'Y,LOWER | 10835-12761 | |
| 15 | 01010-80816 | BOLT | 10835- | |
| 16 | 01643-30823 | WASHER | 10835- | |
| 17 | 20U-54-25261 | BRACKET | 10835- | |
| 18 | 20U-54-25271 | BRACKET | 10835- | |
| 19 | 01010-D1225 | BOLT | 10835- | |
| 20 | 01643-71232 | WASHER | 10835- | |
| 21 | 20U-54-25321 | STRIKER | 10835- | |
| 22 | 01010-80610 | BOLT | 10835- | |
| 23 | 01641-50608 | WASHER | 10835- | |
| 24 | 20U-54-25341 | SHIM, 1.0MM | 10835- | |
| 25 | 205-54-71642 | LOCK ASS'Y | 10835- | |
| 26 | 21W-54-34490 | PACKING, 8.0MM | 12800- |
