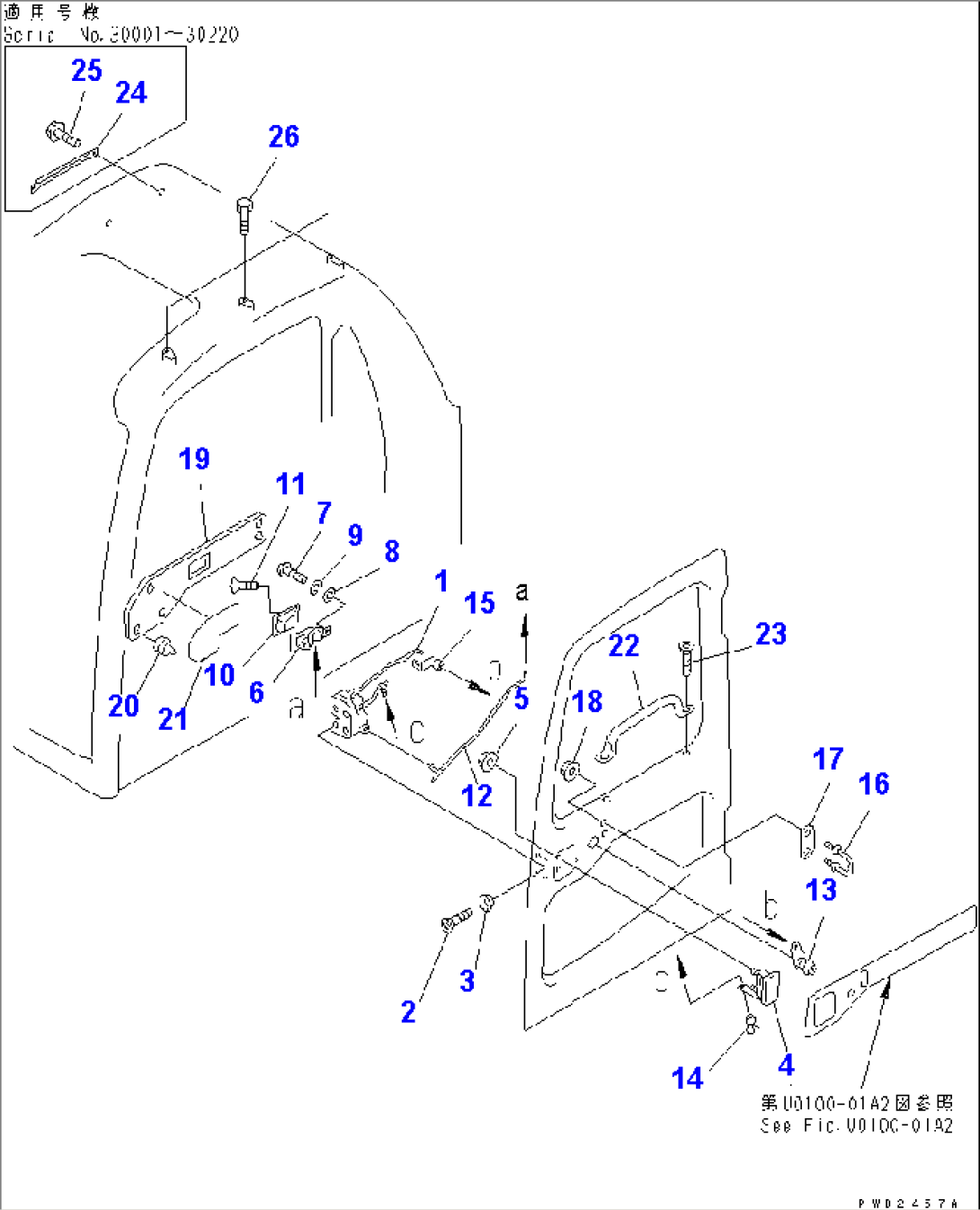

| Item | Part No. | Part Name | Qty | Serial No. |
| (20Y-54-00525) | DOOR ASS'Y | 33001- | ||
| (20Y-54-00524) | DOOR ASS'Y | 30001-32999 | ||
| 1 | 20Y-54-35941 | LATCH,DOOR | 30001- | |
| 2 | 01240-00616 | SCREW | 30001- | |
| 3 | 195-Z11-1690 | WASHER | 30001- | |
| 4 | 20Y-54-35932 | HANDLE ASS'Y | 30001- | |
| 5 | 01584-00605 | NUT | 30001- | |
| 6 | 20Y-54-35910 | HANDLE | 30001- | |
| 7 | 01220-40512 | SCREW | 30001- | |
| 8 | 01641-20508 | WASHER | 30001- | |
| 9 | 01601-20513 | WASHER | 30001- | |
| 10 | 20Y-54-35920 | COVER | 30001- | |
| 11 | 20Y-54-35880 | SCREW | 30001- | |
| 12 | 20Y-54-35951 | ROD ASS'Y | 30001- | |
| 13 | 20Y-54-35890 | LOCK ASS'Y | 30001- | |
| 14 | 14X-911-1740 | SNAP,ROD | 30001- | |
| 15 | 205-54-71840 | SNAP | 30001- | |
| 16 | 20Y-54-35961 | STRIKER | 30001- | |
| 17 | 20Y-54-35710 | PLATE | 30001- | |
| 18 | 01584-01008 | NUT | 30001- | |
| 19 | 20Y-54-35760 | COVER | 30001- | |
| 20 | 20Y-54-14560 | CLIP ASS'Y | 30001- | |
| 21 | 20Y-54-35771 | SEAL | 30001- | |
| 22 | 20Y-54-35690 | GRIP | 30001- | |
| 23 | 01240-00820 | SCREW | 30001- | |
| 24 | 20Y-54-35550 | GUARD | 30001-30220 | |
| 25 | 01435-30616 | BOLT | 30001-30220 | |
| 26 | 01010-31218 | BOLT | 30001- |
