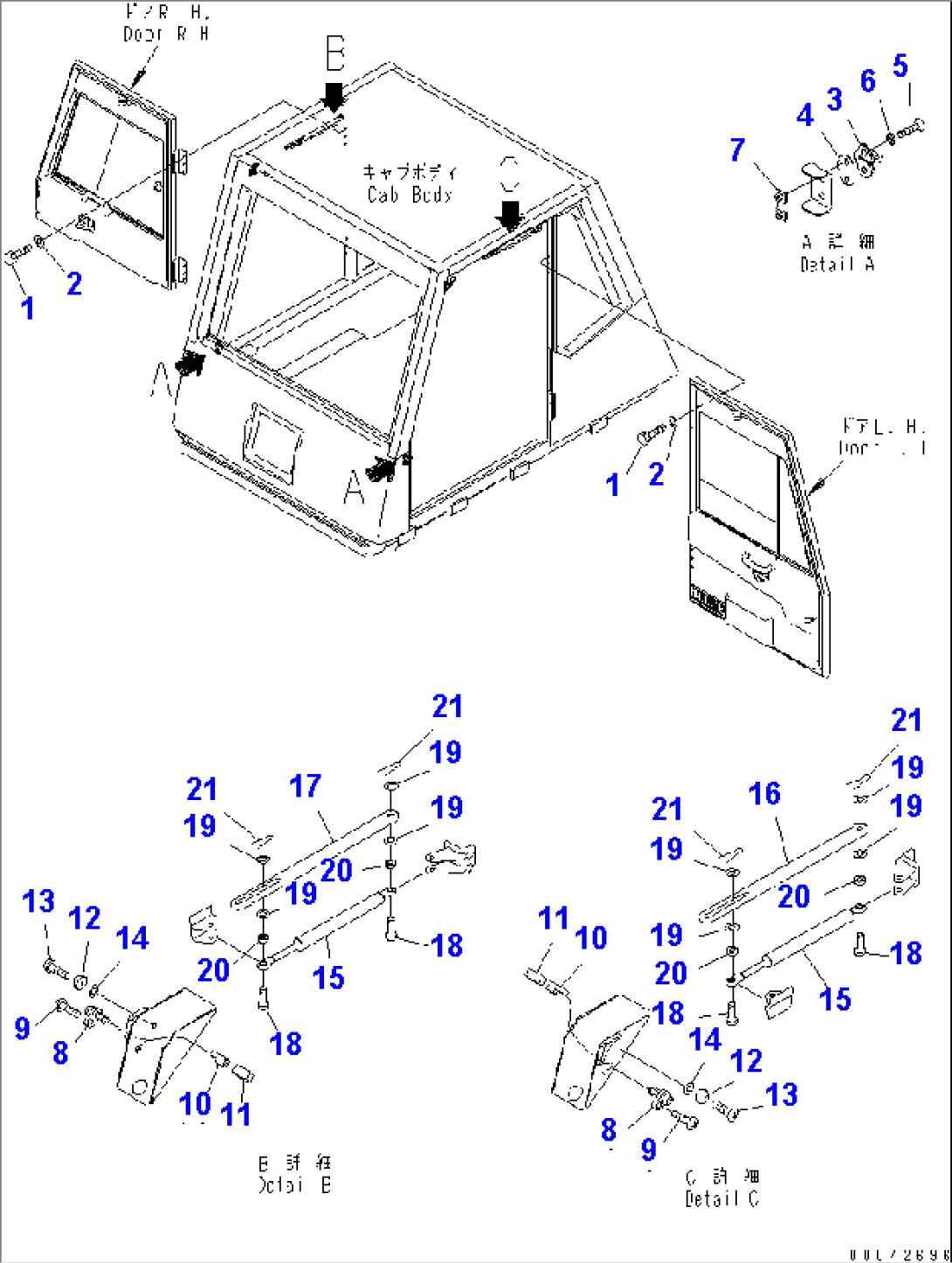

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81020 | BOLT | 7001- | |
| 2 | 01643-31032 | WASHER | 7001- | |
| 3 | 20Y-53-11810 | STRIKER | 7001- | |
| 4 | 20Y-54-35480 | SHIM | 7001- | |
| 5 | 01240-00825 | SCREW | 7001- | |
| 6 | 421-54-15760 | WASHER | 7001- | |
| 7 | 426-926-3K40 | PLATE | 7001- | |
| 8 | 424-926-3490 | SWITCH | 7001- | |
| 9 | 419-923-2130 | SCREW | 7001- | |
| 10 | 08056-00111 | CONNECTOR | 7001- | |
| 11 | 08056-00130 | HOLDER | 7001- | |
| 12 | 421-926-2950 | CUSHION | 7001- | |
| 13 | 01023-70416 | SCREW | 7001- | |
| 14 | 419-43-17760 | WASHER | 7169- | |
| 15 | 561-54-84780 | GAS SPRING | 7001- | |
| 16 | 561-54-84712 | PLATE | 7001- | |
| 17 | 561-54-84722 | PLATE | 7001- | |
| 18 | 04205-30835 | PIN | 7001- | |
| 19 | 426-925-3980 | WASHER | 7001- | |
| 20 | 426-925-3990 | SPACER | 7001- | |
| 21 | 04050-12015 | PIN | 7001- |
