| Item | Part No. | Part Name | Qty | Serial No. |
| 56E-54-24505 | DOOR ASS'Y,R.H. | 3001- | ||

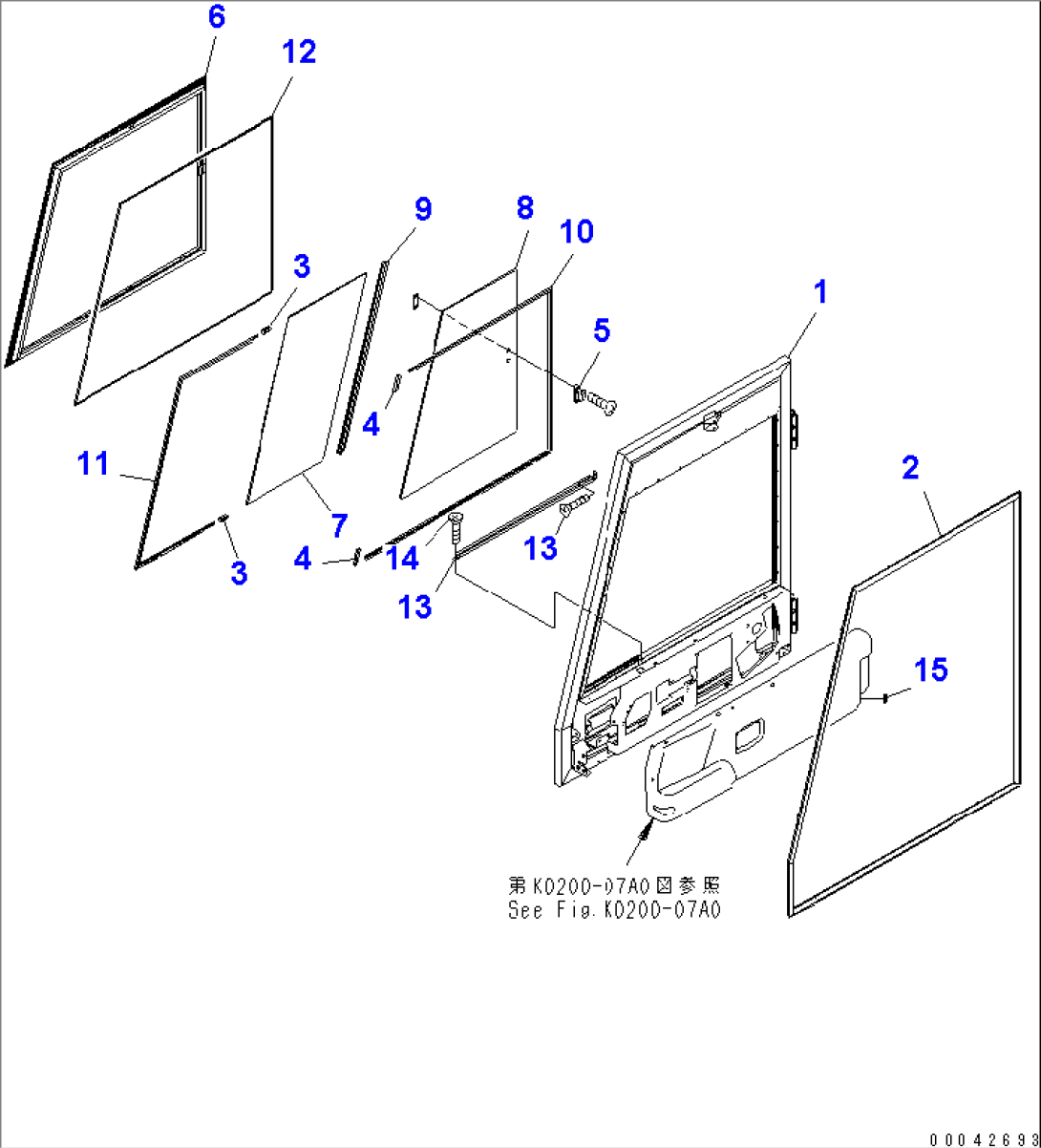

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0200-05A1 TO K0200-07A0. | ||||
| 1 | 561-54-84514 | DOOR ASS'Y | 3001- | |
| 1 | 14X-911-1330 | HINGE WELDED | 3001- | |
| 2 | 561-54-84532 | SEAL | 3011- | |
| 2 | \0\561-54-84531 | SEAL | 3001-3010 | |
| 56E-54-24812 | SASH ASS'Y | 3001- | ||
| 3 | 21X-54-34170 | STOPPER | 3001- | |
| 4 | 22B-54-17390 | STOPPER | 3001- | |
| 5 | 22M-54-16540 | LOCK ASS'Y | 3001- | |
| 6 | 56E-54-24822 | FRAME | 3001- | |
| 7 | 56E-54-24333 | GLASS | 3001- | |
| 8 | 56E-54-24343 | GLASS | 3001- | |
| 9 | 56E-54-24373 | SEAL | 3001- | |
| 10 | 56E-54-24882 | CHANNEL | 3001- | |
| 11 | 56E-54-24892 | CHANNEL | 3001- | |
| 12 | 56E-54-24411 | SEAL | 3001- | |
| 13 | 56E-54-24421 | RAIL | 3001- | |
| 14 | 01224-40408 | SCREW | 3001- | |
| 15 | 09415-01008 | CAP | 3001- |
