| Item | Part No. | Part Name | Qty | Serial No. |
| 569-35-61120 | VALVE ASS'Y,CHECK | 4001- | ||
| 1 | (281-34-12300) | VALVE ASS'Y | 4001- | |
| 2 | 281-35-12110 | BRACKET | 4001- | |
| 3 | 01010-80612 | BOLT | 4001- | |
| 4 | 01580-10605 | NUT | 4001- | |
| 5 | 01602-20619 | WASHER,SPRING | 4001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5 s/n 4001 up
- Operator's compartment and control system
- Operator's cab (double check valve) (treadle valve)
Поиск по каталогу

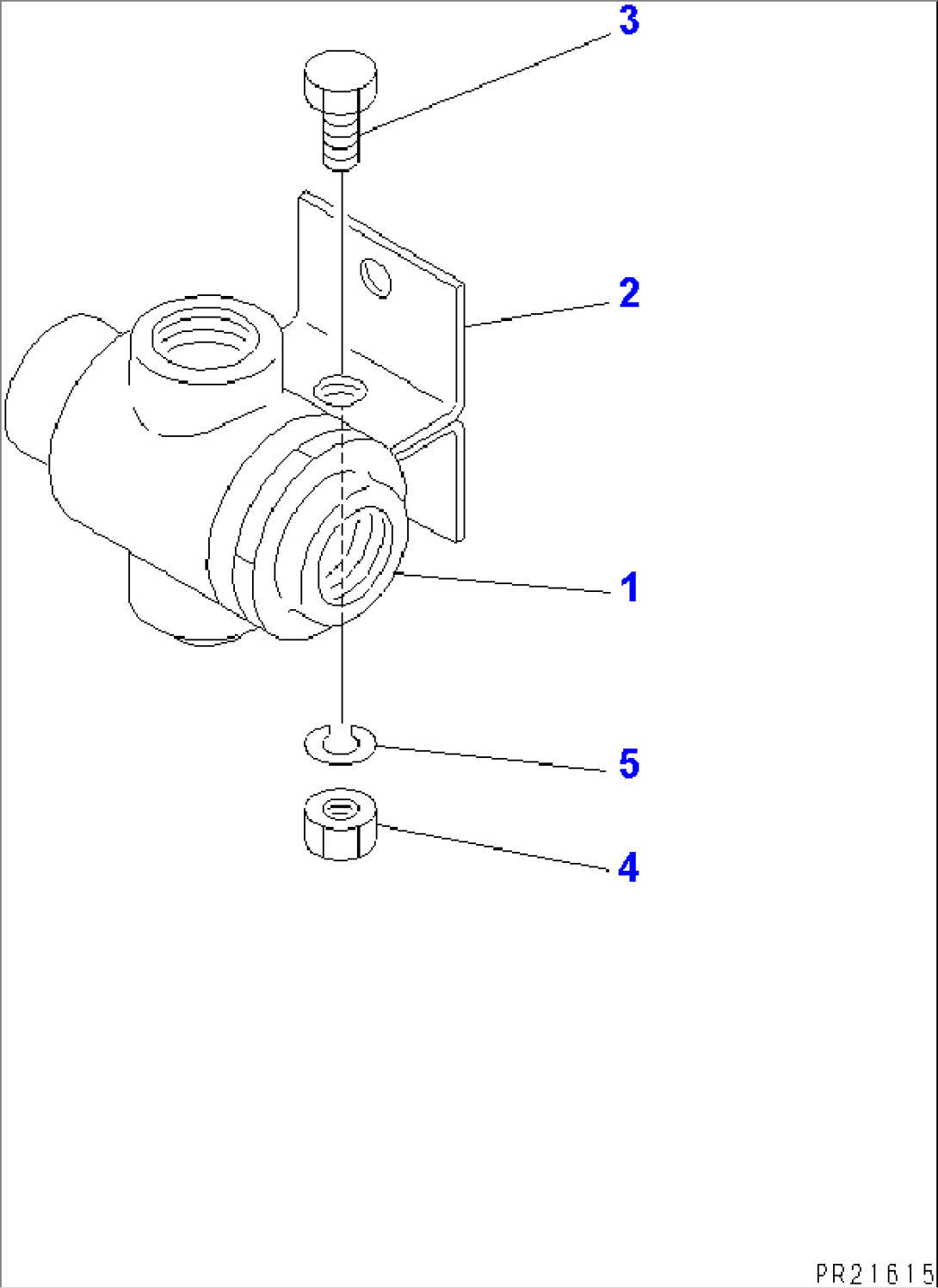

OPERATOR'S CAB (DOUBLE CHECK VALVE) (TREADLE VALVE)
