| Item | Part No. | Part Name | Qty | Serial No. |

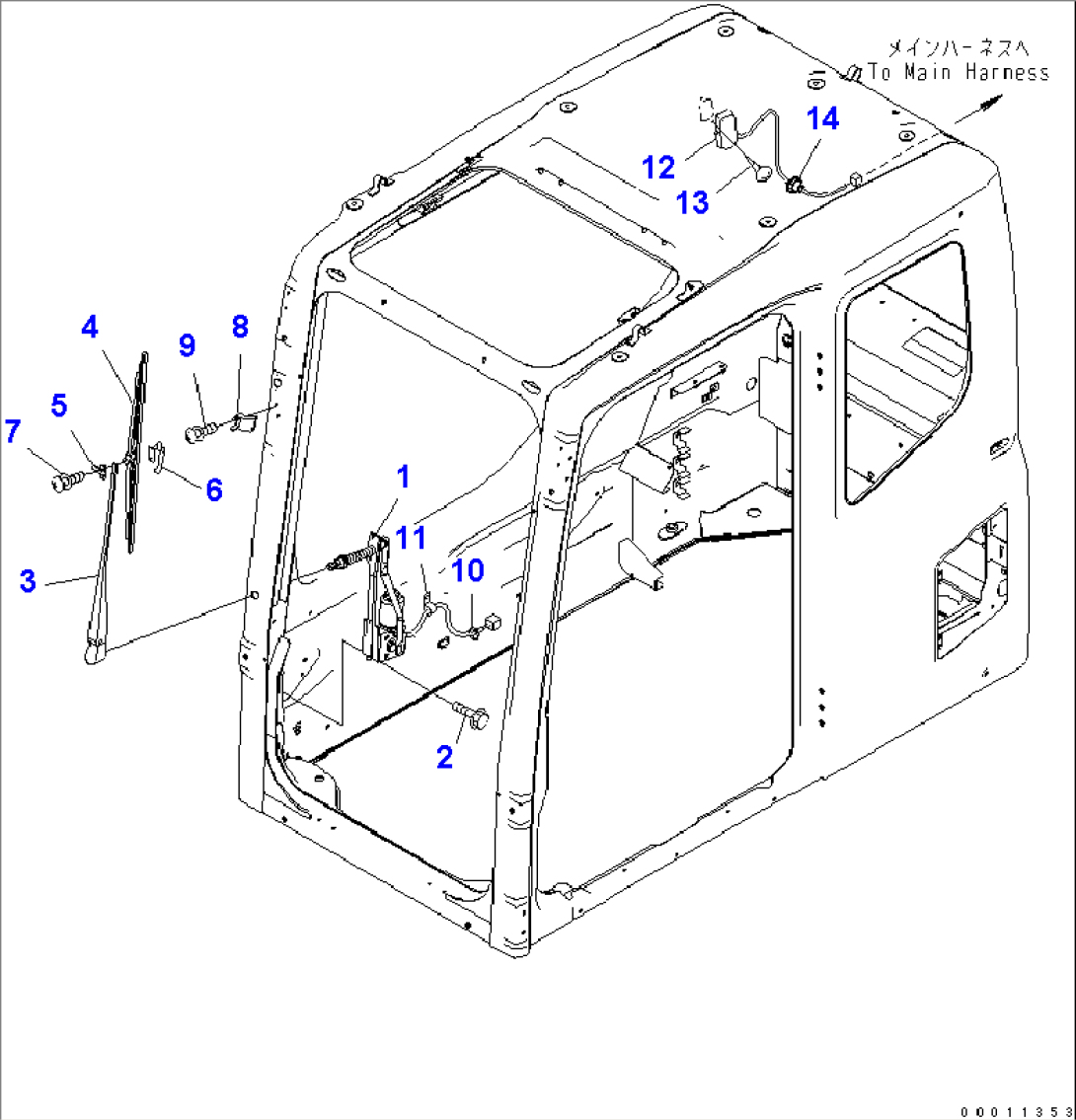

| (20J-54-10010) | CAB ASSEMBLY | K40001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K1110-01A0 TO K1110-12A0. | ||||
| 1 | 208-53-12780 | WIPER MOTOR ASSEMBLY | K40001- | |
| 2 | 01435-40616 | BOLT | K40001- | |
| 20Y-54-52221 | WIPER ASSEMBLY | K40001- | ||
| 3 | 20Y-54-52350 | ARM | K40001- | |
| 4 | 20Y-54-39450 | BLADE | K40001- | |
| 5 | 20Y-54-39460 | SLIDER | K40001- | |
| 6 | 20Y-54-39480 | PLATE | K40001- | |
| 7 | ND949007-2350 | SCREW AND WASHER | K40001- | |
| 8 | 20Y-54-52231 | STOPPER | K40001- | |
| 9 | 01023-20620 | SCREW | K40001- | |
| 10 | 08034-20414 | BAND | K40001- | |
| 11 | 08059-00310 | CLIP | K40001- | |
| 12 | 208-53-12790 | ROOM LAMP | K40001- | |
| 08116-02410 | BULB¤ 10W | K40001- | ||
| 13 | 01370-00420 | SCREW | K40001- | |
| 14 | 08037-11025 | GROMMET | K40001- |
