| Item | Part No. | Part Name | Qty | Serial No. |
| (20Y-54-00482) | OPERATOR'S CAB ASS'Y | K32000-K32022 | ||
| (20Y-54-K9290) | OPERATOR'S CAB ASS'Y | K30595-K31999 | ||
| (20Y-54-00480) | OPERATOR'S CAB ASS'Y | K30001-K30594 | ||

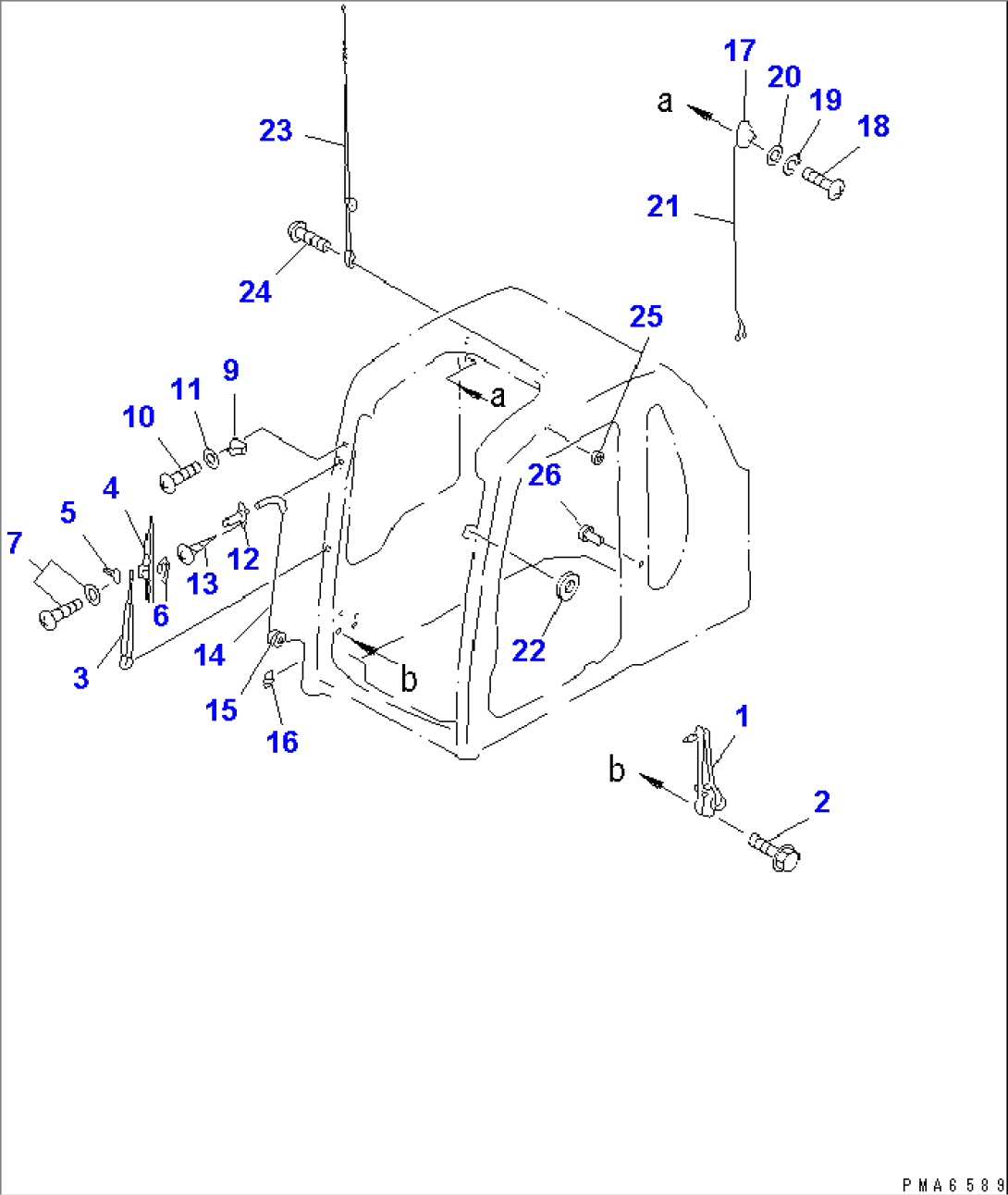

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-07A0. | ||||
| 1 | 20Y-54-39402 | WIPER MOTOR ASS'Y | K30001-@ | |
| 2 | 01435-30610 | BOLT | K30001-@ | |
| 20Y-54-39501 | WIPER ASS'Y | K30001-@ | ||
| 3 | 20Y-54-39441 | ARM | K30001-@ | |
| 4 | 20Y-54-39450 | BLADE | K30001-@ | |
| 5 | 20Y-54-39460 | SLIDER | K30001-@ | |
| 6 | 20Y-54-39480 | PLATE | K30001-@ | |
| 7 | ND949007-2540 | SCREW AND WASHER | K30001-@ | |
| 9 | 20Y-54-39471 | STOPPER | K30001-@ | |
| 10 | 01220-70620 | SCREW | K30001-@ | |
| 11 | 01641-20608 | WASHER | K30001-@ | |
| 12 | 20Y-54-39511 | NOZZLE | K30001-K32022 | |
| 13 | 01370-10520 | SCREW | K30001-@ | |
| 14 | 17M-911-2670 | HOSE | K30001-@ | |
| 15 | 08037-01008 | GROMMET | K30001-@ | |
| 16 | 08051-00801 | CLIP | K30001-@ | |
| 17 | 08141-02400 | LAMP | K30001-@ | |
| 18 | 01220-40420 | SCREW | K30001-K32022 | |
| 19 | 01601-20410 | WASHER | K30001-K32022 | |
| 20 | 01641-20405 | WASHER | K30001-K32022 | |
| 21 | 205-06-71550 | WIRE | K30001-K32022 | |
| 22 | 20Y-54-36150 | GROMMET | K30001-K32022 | |
| 23 | 08912-00000 | ANTENNA | K30001-K32022 | |
| 24 | 01220-40420 | SCREW | K30001-@ | |
| 25 | 08037-01610 | GROMMET | K30001-@ | |
| 26 | 20Y-54-14540 | PLUG | K30001-K32022 |
