| Item | Part No. | Part Name | Qty | Serial No. |

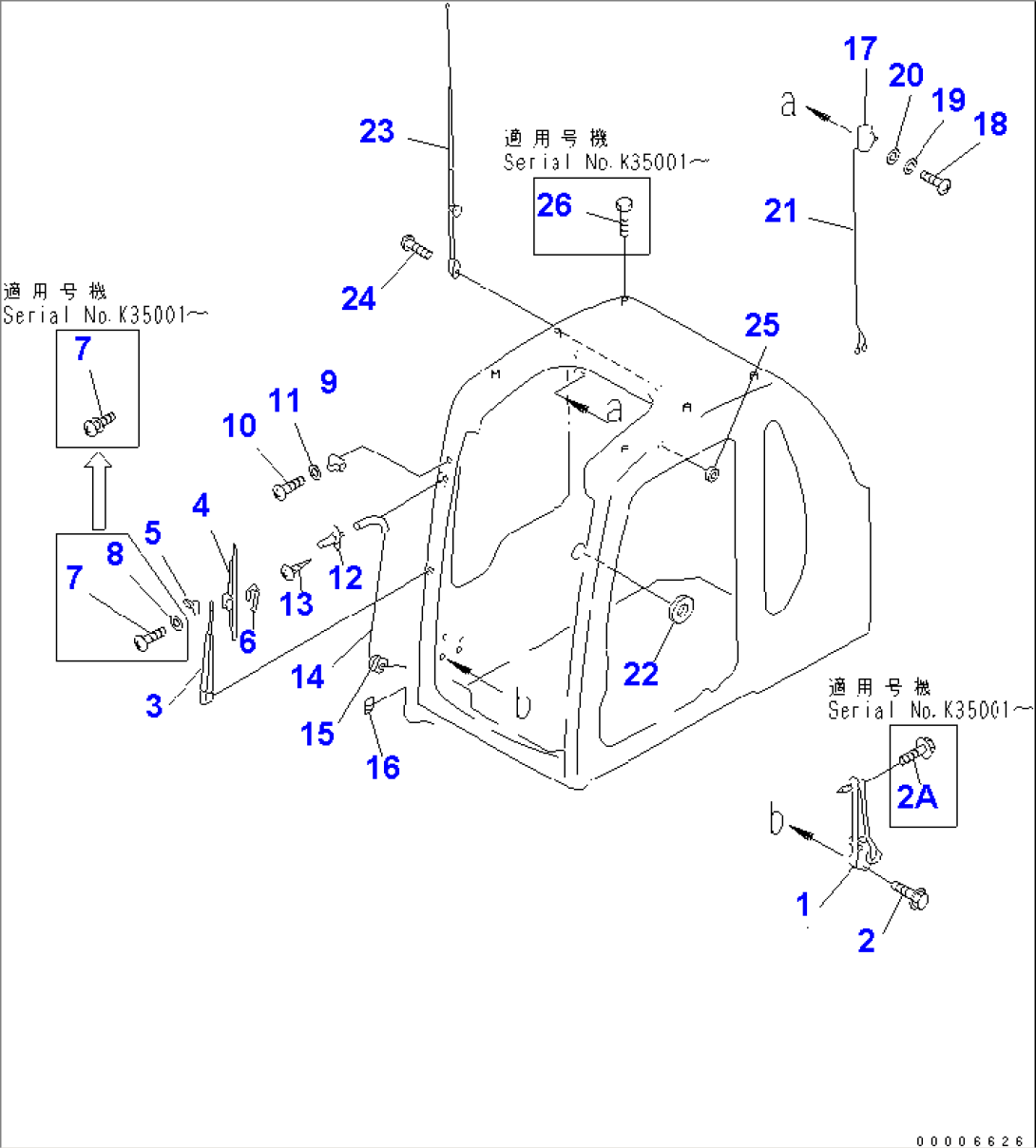

| (209-54-K2100) | OPERATOR'S CAB ASS'Y | K35001- | ||
| (20E-54-K6510) | OPERATOR'S CAB ASS'Y | K32001-K35000 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0B TO K0210-07A0B. | ||||
| 1 | 20Y-54-39402 | WIPER MOTOR ASS'Y | K30545- | |
| 2 | 01435-30610 | BOLT | K30545- | |
| 2A | 01435-30616 | BOLT | K35001- | |
| 20Y-54-39502 | WIPER ASS'Y | K35001- | ||
| 20Y-54-39501 | WIPER ASS'Y | K30545-K35000 | ||
| 3 | 20Y-54-39442 | ARM | K35001- | |
| 20Y-54-39441 | ARM | K30545-K35000 | ||
| 4 | 20Y-54-39450 | BLADE | K30545- | |
| 5 | 20Y-54-39460 | SLIDER | K30545- | |
| 6 | 20Y-54-39480 | PLATE | K30545- | |
| 7 | ND94900-72350 | SCREW | K35001- | |
| 01235-50306 | SCREW | K30545-K35000 | ||
| 8 | 01601-00307 | WASHER,SPRING | K30545-K35000 | |
| 9 | 20Y-54-39471 | STOPPER | K30545- | |
| 10 | 01220-70620 | SCREW | K30545- | |
| 11 | 01641-20608 | WASHER | K30545- | |
| 12 | 20Y-54-39511 | NOZZLE | K32001- | |
| 13 | 01370-10520 | SCREW | K30545- | |
| 14 | 17M-911-2670 | HOSE | K30545- | |
| 15 | 08037-01008 | GROMMET | K30545- | |
| 16 | 08051-00801 | CLIP | K30545- | |
| 17 | 08141-02400 | LAMP,ROOM | K30545- | |
| 08116-02410 | BULB¤ 10W | K30545- | ||
| 18 | 01220-40420 | SCREW | K32001- | |
| 19 | 01601-20410 | WASHER,SPRING | K32001- | |
| 20 | 01641-20405 | WASHER | K32001- | |
| 21 | 205-06-71550 | WIRE | K32001- | |
| 22 | 20Y-54-36150 | GROMMET | K32001- | |
| 23 | 08912-00000 | ANTENNA | K32001- | |
| 24 | 01220-40420 | SCREW | K30545- | |
| 25 | 08037-01610 | GROMMET | K30545- | |
| 26 | 01010-61218 | BOLT | K35001- |
