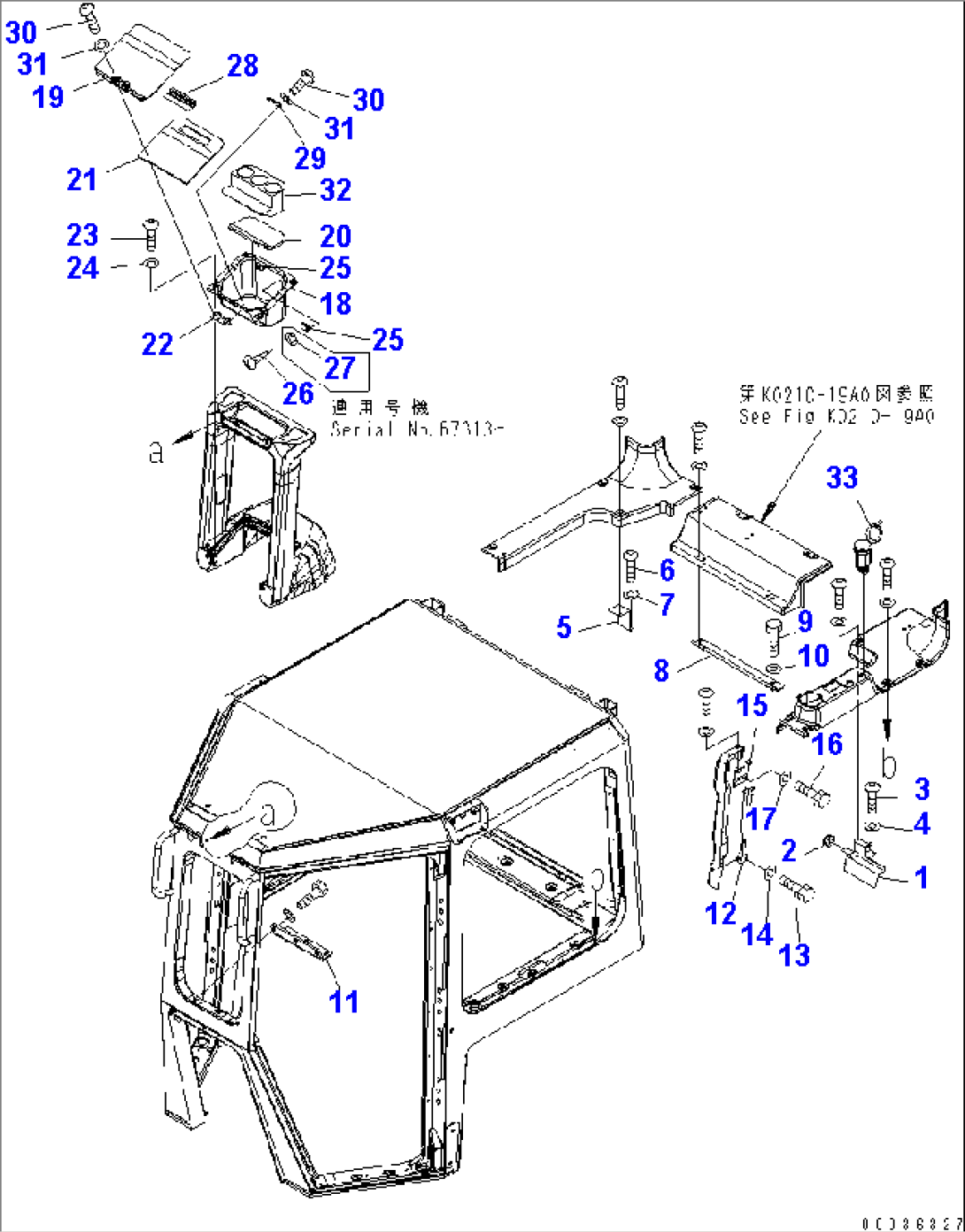

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-Z11-1970 | BRACKET | 67001- | |
| 2 | 09415-01008 | CAP | 67001- | |
| 3 | 01245-00620 | SCREW | 67001- | |
| 4 | 01643-70623 | WASHER | 67001- | |
| 5 | 17A-Z11-1980 | BRACKET | 67001- | |
| 6 | 01245-00620 | SCREW | 67001- | |
| 7 | 01643-70623 | WASHER | 67001- | |
| 8 | 17A-Z11-1990 | BRACKET | 67001- | |
| 9 | 01010-81016 | BOLT | 67001- | |
| 10 | 01643-31032 | WASHER | 67001- | |
| 11 | 17A-Z11-3531 | BRACKET | 67001- | |
| 12 | 134-54-75580 | BRACKET | 67001- | |
| 13 | 01010-80816 | BOLT | 67001- | |
| 14 | 01643-30823 | WASHER | 67001- | |
| 15 | 134-54-75590 | BRACKET | 67001- | |
| 16 | 01010-80816 | BOLT | 67001- | |
| 17 | 01643-30823 | WASHER | 67001- | |
| 17A-Z11-3860 | BOX ASS'Y | 67001- | ||
| 18 | \6\ | BOX | 67001- | |
| 19 | 17A-Z11-3941 | PLATE | 67001- | |
| 20 | 17A-Z11-2970 | CUSHION | 67001- | |
| 21 | 17A-Z11-2992 | SHEET (BONDED) | 67001- | |
| 22 | 17A-Z11-3982 | HINGE | 67261- | |
| 22 | (\2\17A-Z11-3981) | HINGE | (67001-67260) | |
| 23 | 01245-00616 | SCREW | 67001- | |
| 24 | 01643-70623 | WASHER | 67001- | |
| 25 | 17A-Z11-3970 | LOCK ASS'Y | 67001- | |
| 26 | 01370-10308 | SCREW | 67001- | |
| 27 | 17A-Z11-7850 | WASHER | 67313- | |
| 28 | 17A-Z11-2590 | PLATE | 67001- | |
| 29 | 17A-Z11-2890 | PLATE | 67001- | |
| 30 | 01245-00616 | SCREW | 67001- | |
| 31 | 01643-70623 | WASHER | 67001- | |
| 32 | 17A-Z11-2960 | CUSHION | 67001- | |
| 33 | 22U-00-21510 | PLATE | 67001- | |
| 34 | 198-Z11-3960 | SEAL,NOT SHOWN | 67994- |
