| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-54-83121 | PLATE | 10011- | |
| 2 | 01245-00820 | SCREW | 10011- | |
| 3 | 01643-70823 | WASHER | 10011- | |
| 4 | 201-54-83151 | PLATE | 10011- | |
| 5 | 01010-81025 | BOLT | 10011- | |
| 6 | 01643-31032 | WASHER | 10011- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc70 8 s/n 10011 up
- Operator's compartment and control system
- Operator's cab (floor) (base front cover)
Поиск по каталогу

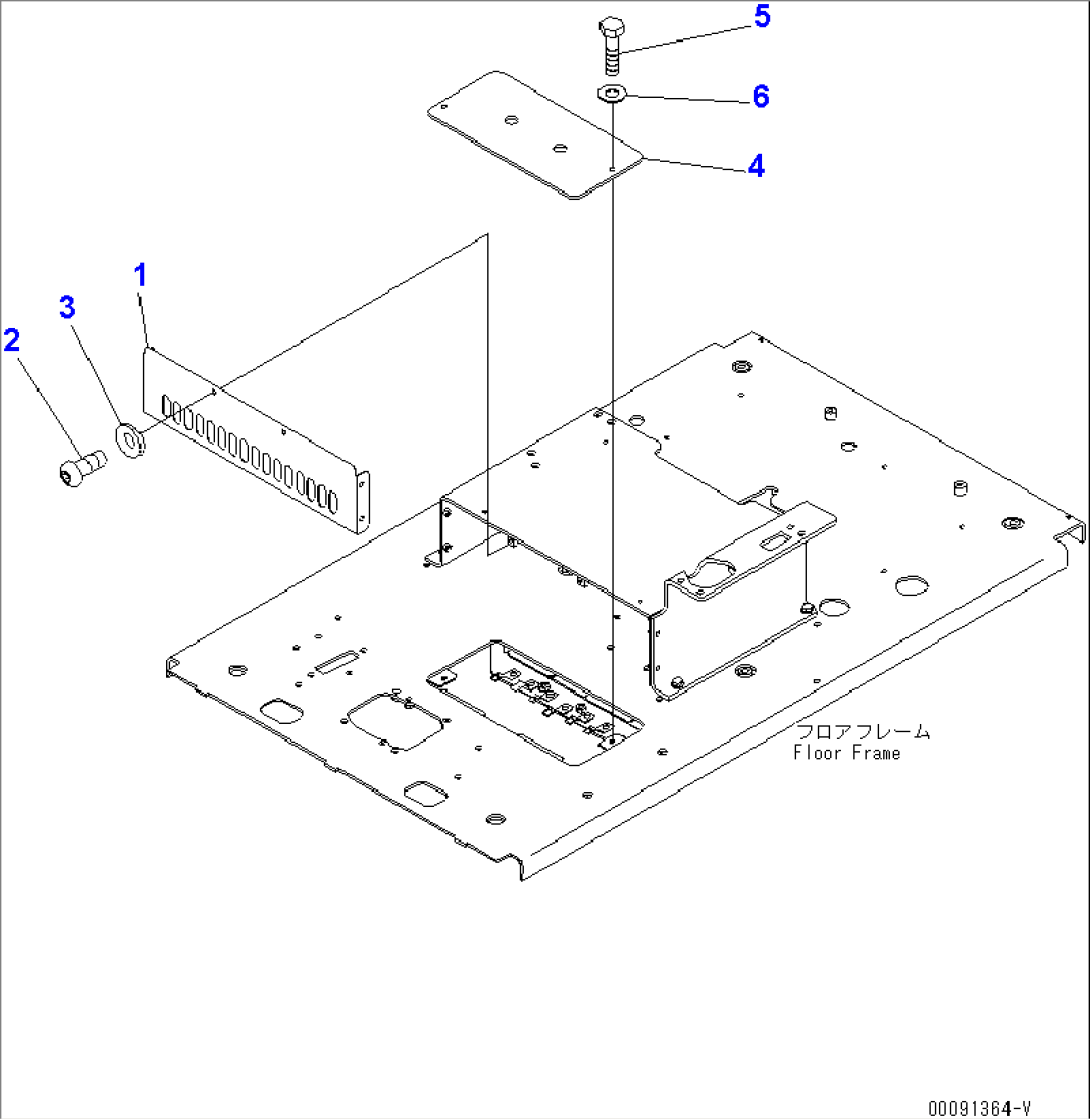

OPERATOR'S CAB (FLOOR) (BASE FRONT COVER)
