| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-54-25120 | Footrest | B50001- | |
| 2 | 22U-54-25531 | Plate | B50001- | |
| 3 | 01010-81025 | Bolt | B50001- | |
| 4 | 01643-31032 | Washer | B50001- | |
| 5 | 01010-81020 | Bolt | B50001- | |
| 6 | 01643-31032 | Washer | B50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 8m0/pc200lc 8m0 s/n b50001 up
- Operator's compartment and control system
- Operator's cab (floor) (footrest¤ r.h.)
Поиск по каталогу

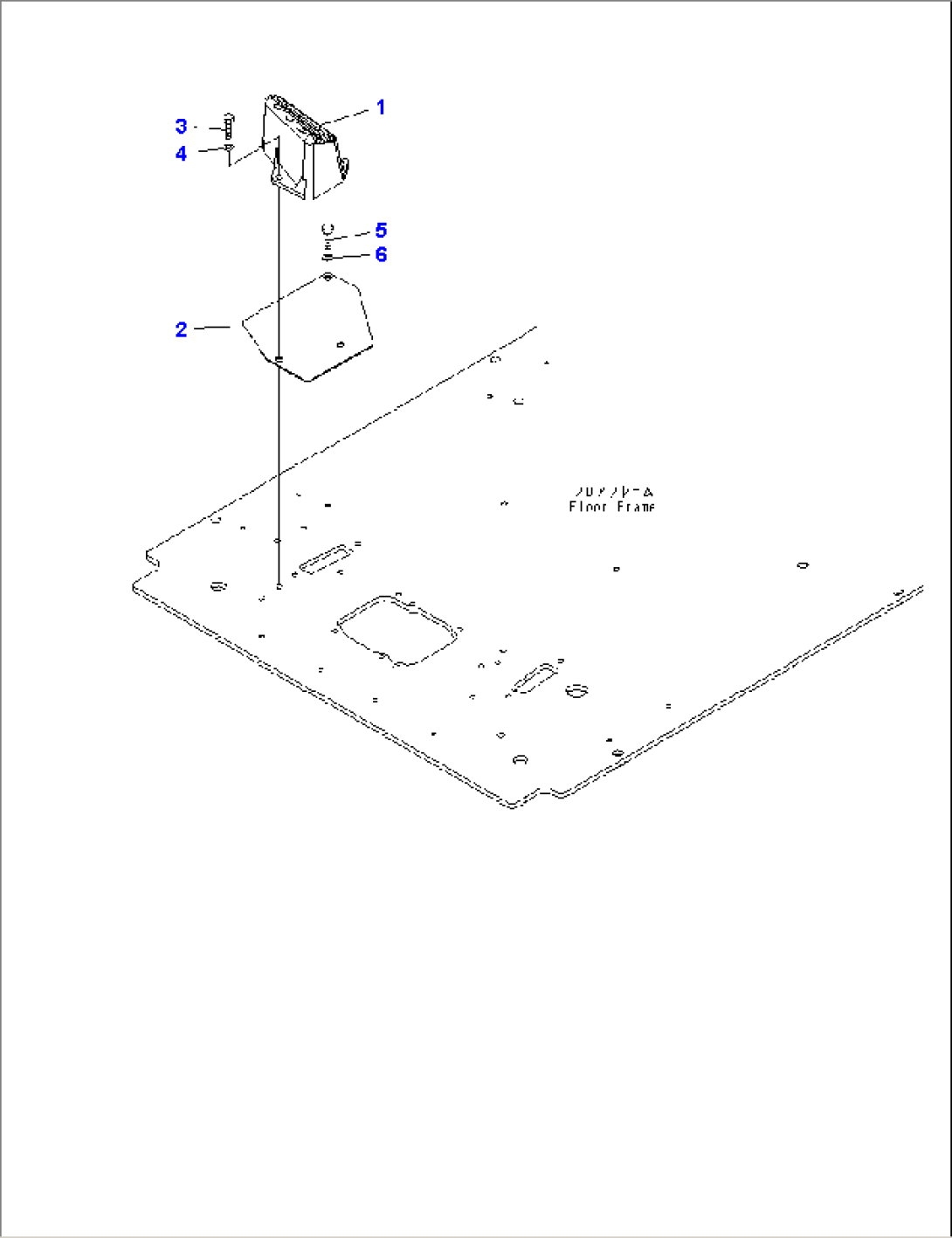

Operator's Cab (Floor) (Footrest¤ R.H.)
