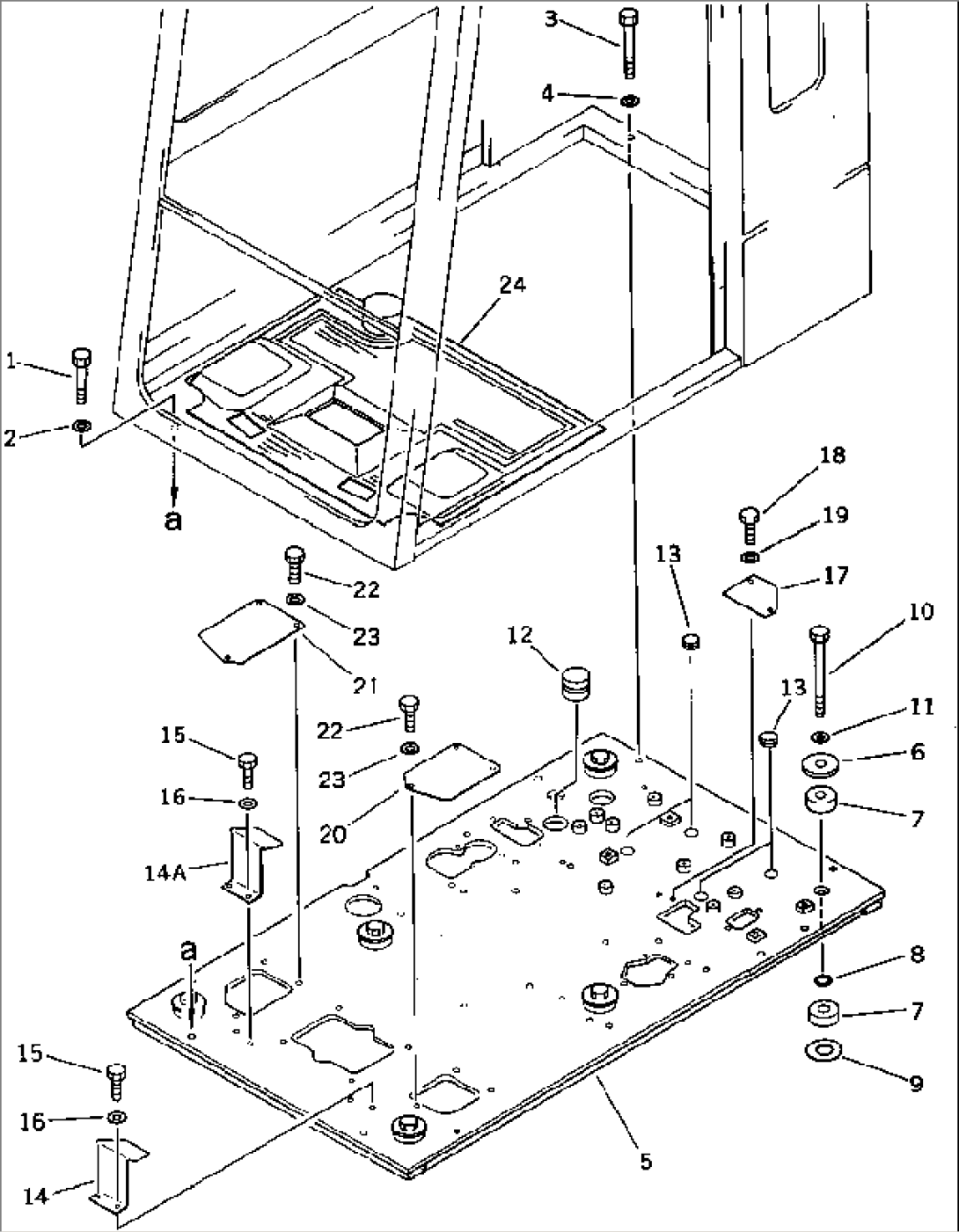

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-51250 | BOLT | 12001-@ | |
| 2 | 01643-31232 | WASHER | 12001-@ | |
| 3 | 01010-51270 | BOLT | 12001-@ | |
| 4 | 01643-31232 | WASHER | 12001-@ | |
| 5 | 207-54-33132 | FRAME,FLOOR | 12001-12888 | |
| 6 | 205-54-71691 | PLATE | 12001-@ | |
| 7 | 205-54-71680 | CUSHION | 12001-@ | |
| 8 | 07000-03028 | O-RING | 12001-@ | |
| 9 | 205-54-72640 | SPACER | 12001-@ | |
| 10 | 01010-51690 | BOLT | 12001-@ | |
| 11 | 01643-31645 | WASHER | 12001-@ | |
| 12 | 09415-05016 | CAP | 12001-@ | |
| 13 | 09415-02520 | CAP | 12001-@ | |
| 14 | 203-43-42572 | BRACKET,L.H. | 12662-@ | |
| 14 | 205-43-73590 | BRACKET,L.H. | 12266-12661 | |
| 14 | 203-43-42572 | BRACKET,L.H. | 12001-12265 | |
| 14A | 203-43-42572 | BRACKET,R.H. | 12662-@ | |
| 14A | 205-43-73610 | BRACKET,R.H. | 12266-12661 | |
| 14A | 203-43-42572 | BRACKET,R.H. | 12001-12265 | |
| 15 | 01010-51025 | BOLT | 12001-@ | |
| 16 | 01643-31032 | WASHER | 12001-@ | |
| 17 | 205-06-71771 | PLATE | 12001-@ | |
| 18 | 01010-51020 | BOLT | 12001-@ | |
| 19 | 01643-31032 | WASHER | 12001-@ | |
| 20 | 207-43-33170 | COVER,L.H. | 12001-@ | |
| 21 | 207-43-33180 | COVER,R.H. | 12001-@ | |
| 22 | 01010-51225 | BOLT | 12001-@ | |
| 23 | 01643-31232 | WASHER | 12001-@ | |
| 24 | 205-54-72421 | MAT,FLOOR | 12001-@ |
