| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-53-14120 | FLOOR FRAME | 30097- | |
| 1 | \0\20Y-53-14114 | FLOOR FRAME | 30001-30096 | |
| 2 | 22U-54-25581 | GROMMET | 30001- | |
| 3 | 07286-03828 | HOSE | 30001- | |
| 4 | 07280-04726 | CLAMP | 30001- | |
| 5 | 07048-01310 | PLUG | 30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc270 8 s/n 30001 30116
- Operator's compartment and control system
- Operator's cab (floor) (frame)(#30001 )
Поиск по каталогу

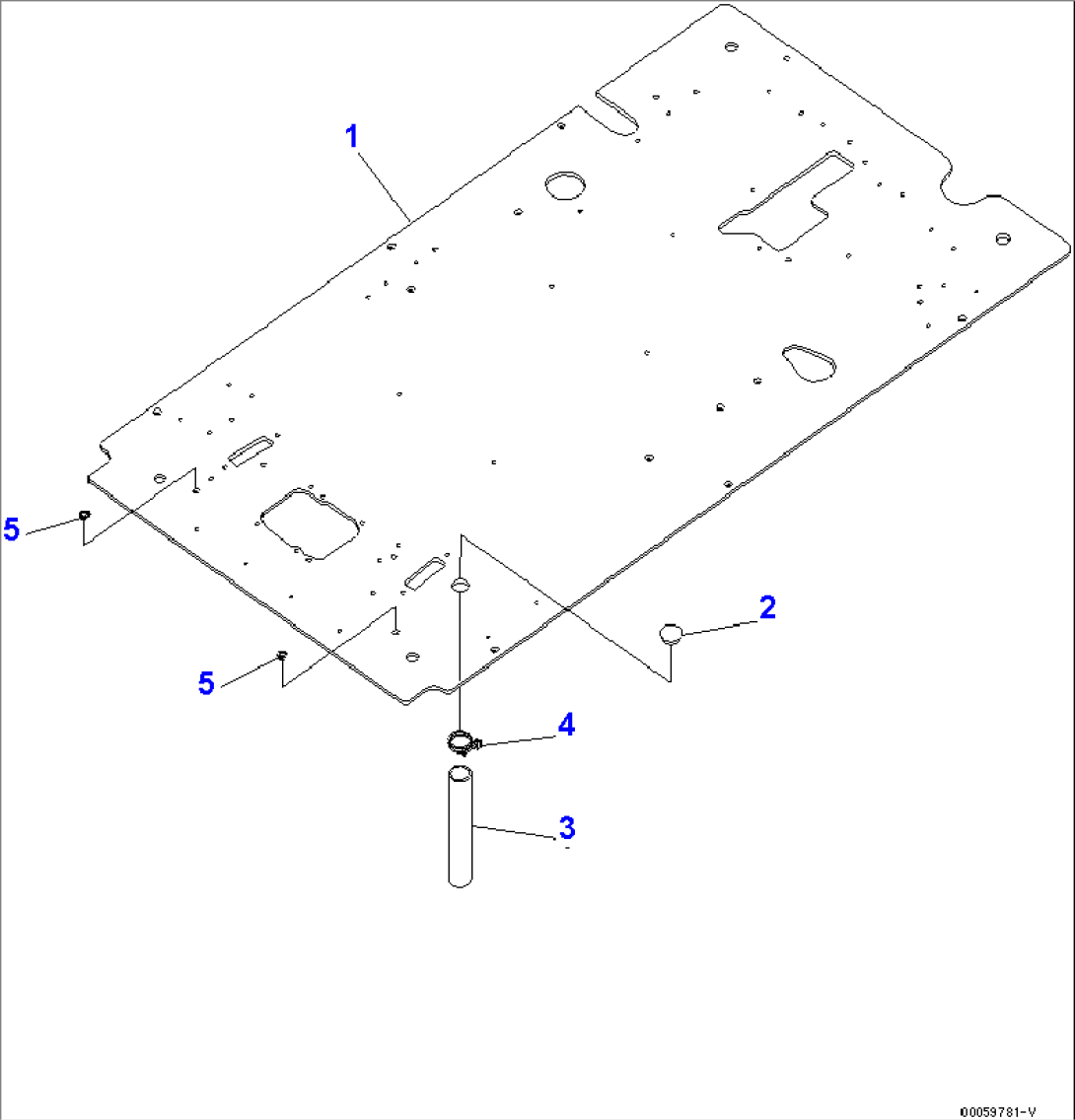

OPERATOR'S CAB (FLOOR) (FRAME)(#30001-)
