| Item | Part No. | Part Name | Qty | Serial No. |
| (\0\22B-54-00991) | CAB ASS'Y,(Q+V) | 24407- | ||

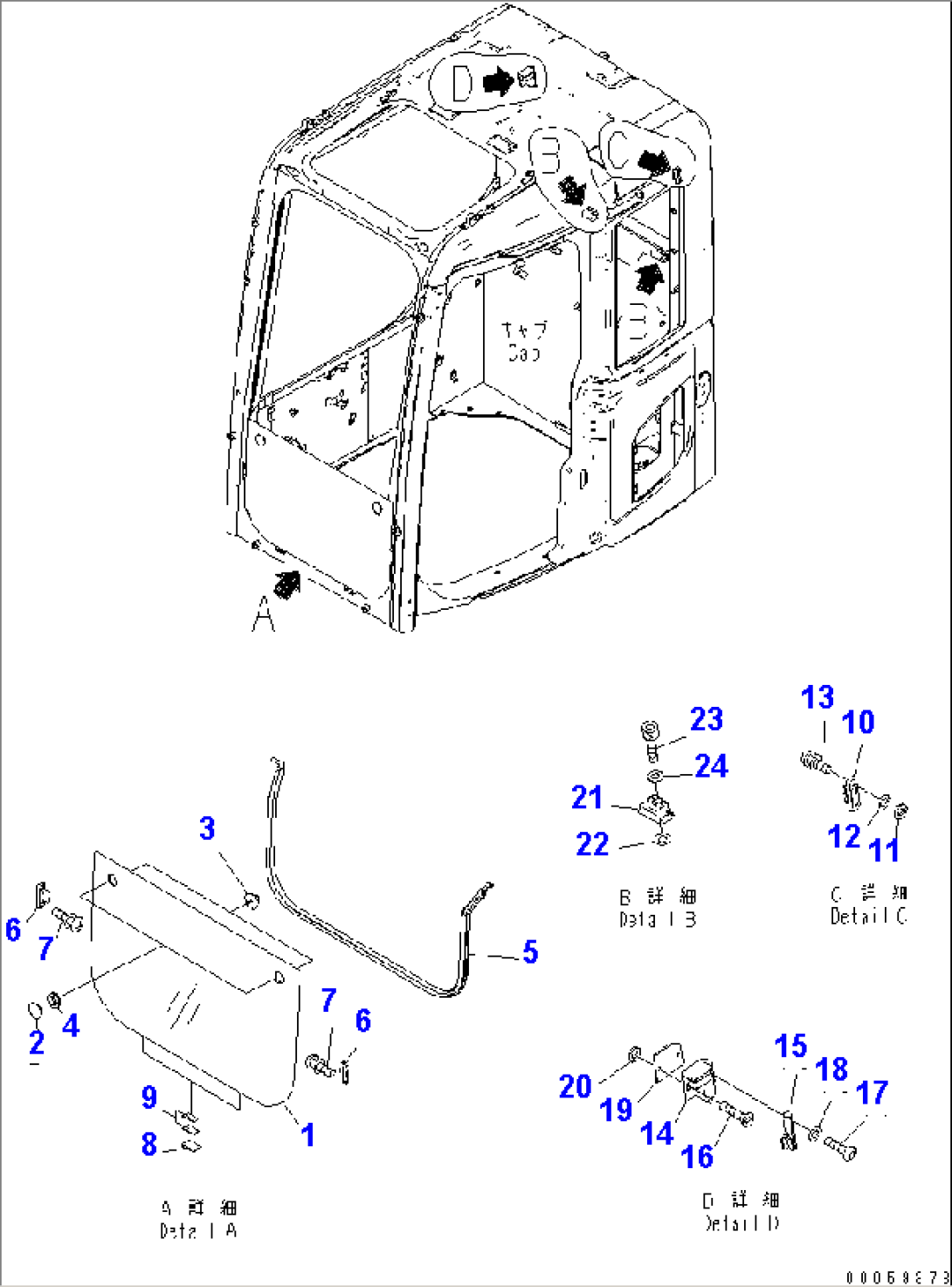

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-13B0. | ||||
| 22B-54-28400 | GLASS ASS'Y | 24407- | ||
| 1 | 22B-54-28410 | GLASS | 24407- | |
| 2 | 22B-54-15970 | RETAINER | 24407- | |
| 3 | 22B-54-15980 | KNOB | 24407- | |
| 4 | 08037-02512 | GROMMET | 24407- | |
| 5 | 22B-54-28420 | TRIM | 24407- | |
| 6 | 20Y-53-11940 | SEAT | 24407- | |
| 7 | 01023-20610 | SCREW | 24407- | |
| 8 | 22B-54-28281 | SHEET (BONDED) | 24407- | |
| 9 | 22B-54-28610 | RUBBER | 24407- | |
| 10 | 20Y-53-12611 | SEAT | 24407- | |
| 11 | 20Y-54-52651 | SPACER | 24407- | |
| 12 | 01643-70623 | WASHER | 24407- | |
| 13 | 01023-20616 | SCREW | 24407- | |
| 14 | 20Y-54-52171 | LOCK | 24407- | |
| 15 | 20Y-54-52371 | BRACKET | 24407- | |
| 16 | 01240-00620 | SCREW | 24407- | |
| 17 | 01245-00625 | SCREW | 24407- | |
| 18 | 01641-50608 | WASHER | 24407- | |
| 19 | 20Y-54-52380 | PLATE | 24407- | |
| 20 | 20Y-54-52651 | SPACER | 24407- | |
| 21 | 208-53-12110 | SEAT | 24407- | |
| 22 | 01640-20610 | WASHER | 24407- | |
| 23 | 01252-80620 | BOLT | 24407- | |
| 24 | 01643-70623 | WASHER | 24407- |
