| Item | Part No. | Part Name | Qty | Serial No. |
| (22B-54-00914) | CAB ASS'Y | | 23169- |
| (22B-54-00913) | CAB ASS'Y,(N+U+V) | | 22252-23168 |
| (\0\22B-54-00912) | CAB ASS'Y,(N+U+V) | | 21563-22251 |
| (\0\22B-54-00911) | CAB ASS'Y,(N+U+V) | | 20001-21562 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A3 TO K0210-13A3. | | |
| (22B-54-00864) | CAB ASS'Y,(D) | | 23169- |
| (22B-54-00863) | CAB ASS'Y,(D) | | 22252-23168 |
| (\0\22B-54-00862) | CAB ASS'Y,(D) | | 21563-22251 |
| (\0\22B-54-00861) | CAB ASS'Y,(D) | | 20001-21562 |
| (22B-54-00933) | CAB ASS'Y,(D+Q) | | 23169- |
| (22B-54-00932) | CAB ASS'Y,(D+Q) | | 22252-23168 |
| (\0\22B-54-00931) | CAB ASS'Y,(D+Q) | | 21563-22251 |
| (\0\22B-54-00930) | CAB ASS'Y,(D+Q) | | 20001-21562 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A4 TO K0210-13A4. | | |
| (22B-54-00953) | CAB ASS'Y,(N+T+U+V) | | 23169- |
| (22B-54-00952) | CAB ASS'Y,(N+T+U+V) | | 22252-23168 |
| (\0\22B-54-00951) | CAB ASS'Y,(N+T+U+V) | | 21563-22251 |
| (\0\22B-54-00950) | CAB ASS'Y,(N+T+U+V) | | 20001-21562 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A9 TO K0210-13A3. | | |
| (22B-54-00963) | CAB ASS'Y,(D+N+T+U) | | 23169- |
| (22B-54-00962) | CAB ASS'Y,(D+N+T+U) | | 22252-23168 |
| (\0\22B-54-00961) | CAB ASS'Y,(D+N+T+U) | | 21563-22251 |
| (\0\22B-54-00960) | CAB ASS'Y,(D+N+T+U) | | 20001-21562 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A9 TO K0210-13A4. | | |
| (22B-54-00973) | CAB ASS'Y,(V) | | 23169- |
| (22B-54-00972) | CAB ASS'Y,(V) | | 22252-23168 |
| (\0\22B-54-00971) | CAB ASS'Y,(V) | | 21563-22251 |
| (\0\22B-54-00970) | CAB ASS'Y,(V) | | 20001-21562 |
| (22B-54-00983) | CAB ASS'Y,(Q+V) | | 23169- |
| (22B-54-00982) | CAB ASS'Y,(Q+V) | | 22252-23168 |
| (\0\22B-54-00981) | CAB ASS'Y,(Q+V) | | 21563-22251 |
| (\0\22B-54-00980) | CAB ASS'Y,(Q+V) | | 20001-21562 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A4 TO K0210-13A3. | | |
| | D = KOMTRAX | | |
| | N = VANDLSIM PROTECT | | |
| | Q = DOOR SASH | | |
| | T = FOR AUSTRALIA | | |
| | U = 12V POWER SUPPLY | | |
| | V = KOMTRAX LESS | | |

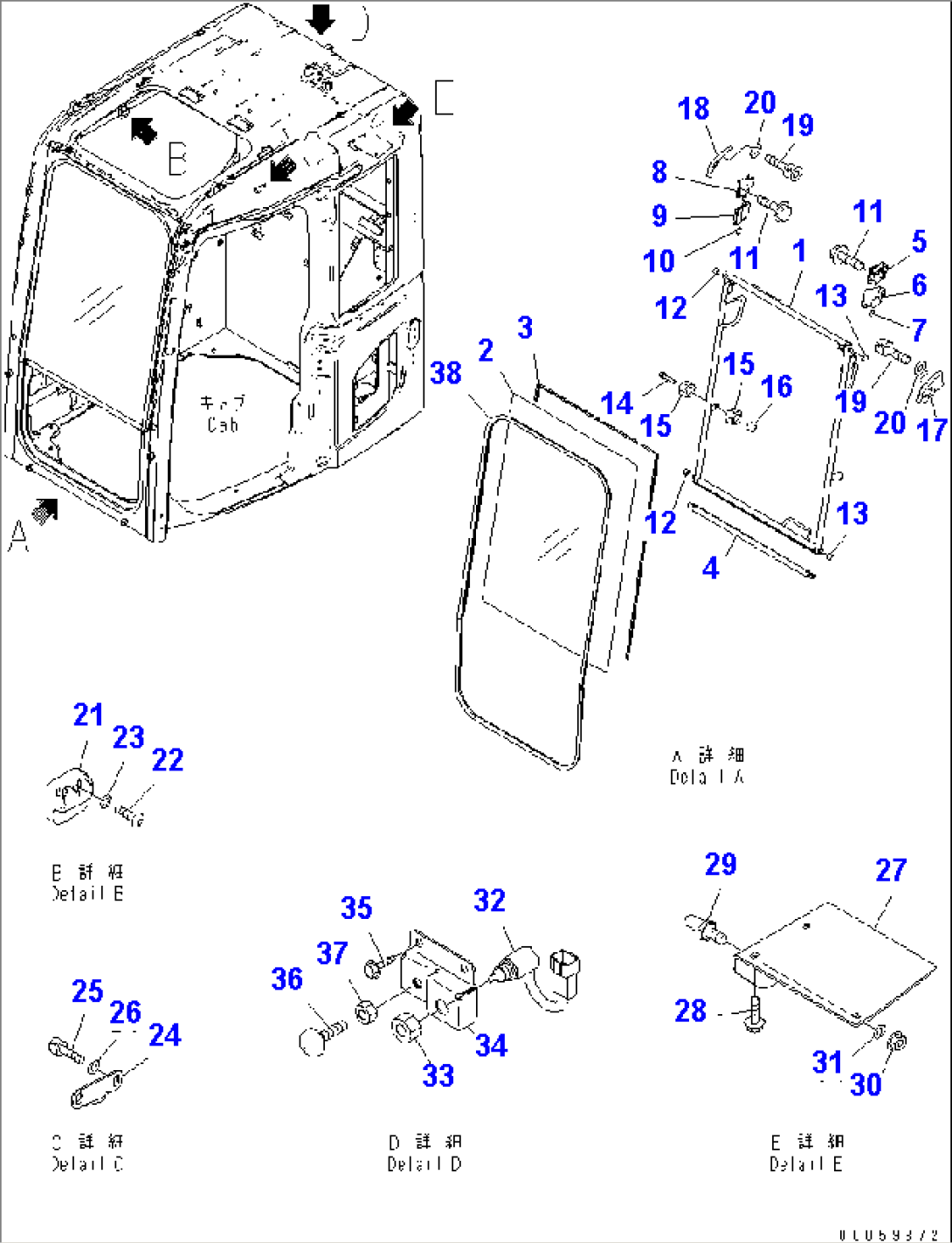

| 22B-54-28301 | FRONT WINDOW ASS'Y | | 20001- |
| 1 | \6\ | FRAME | | 20001- |
| 2 | 22B-54-28321 | GLASS | | 20001- |
| 3 | 22B-54-28360 | SEAL (BONDED) | | 20001- |
| 4 | 22B-54-28371 | SEAL,LOWER (BONDED) | | 20001- |
| 5 | 22B-54-15411 | LOCK ASS'Y,L.H. | | 20001- |
| 6 | 22B-54-15440 | CASE,L.H. | | 20001- |
| 7 | 22B-54-15470 | KNOB,L.H. | | 20001- |
| 8 | 22B-54-15421 | LOCK ASS'Y,R.H. | | 20001- |
| 9 | 22B-54-15450 | CASE,R.H. | | 20001- |
| 10 | 22B-54-15480 | KNOB,R.H. | | 20001- |
| 11 | 01435-40812 | BOLT | | 20001- |
| 12 | 22B-54-28591 | ROLLER | | 20001- |
| 13 | 20Y-54-52681 | ROLLER | | 20001- |
| 14 | 22B-54-15560 | STOPPER | | 20001- |
| 15 | 01580-11008 | NUT | | 20001- |
| 16 | 20Y-54-65540 | CAP | | 20001- |
| 17 | 22B-54-28380 | BRACKET,L.H. | | 20001- |
| 18 | 20Y-53-11661 | BRACKET,R.H. | | 20001- |
| 19 | 01245-00816 | SCREW | | 20001- |
| 20 | 01643-70823 | WASHER | | 20001- |
| 21 | 22B-54-15682 | BLOCK,STOPPER | | 20001- |
| 22 | 01245-00625 | SCREW | | 20001- |
| 23 | 01641-50608 | WASHER | | 20001- |
| 24 | 22B-54-28440 | STOPPER | | 20001- |
| 25 | 01252-80616 | BOLT | | 20001- |
| 26 | 01643-70623 | WASHER | | 20001- |
| 27 | 22B-54-28391 | BRACKET | | 20001- |
| 28 | 01435-40616 | BOLT | | 20001- |
| 29 | 20Y-54-51621 | STRIKER | | 20001- |
| 30 | 01584-31008 | NUT | | 20001- |
| 31 | 01643-71032 | WASHER | | 20001- |
| 32 | 21J-06-12440 | SWITCH | | 20001- |
| 33 | 01583-11811 | NUT | | 20001- |
| 34 | 22B-54-15771 | BRACKET | | 20001- |
| 35 | 01435-40820 | BOLT | | 20001- |
| 36 | 20Y-54-11611 | STOPPER | | 20001- |
| 37 | 01580-11008 | NUT | | 20001- |
| 38 | 22B-54-28350 | SEAL | | 20001- |
