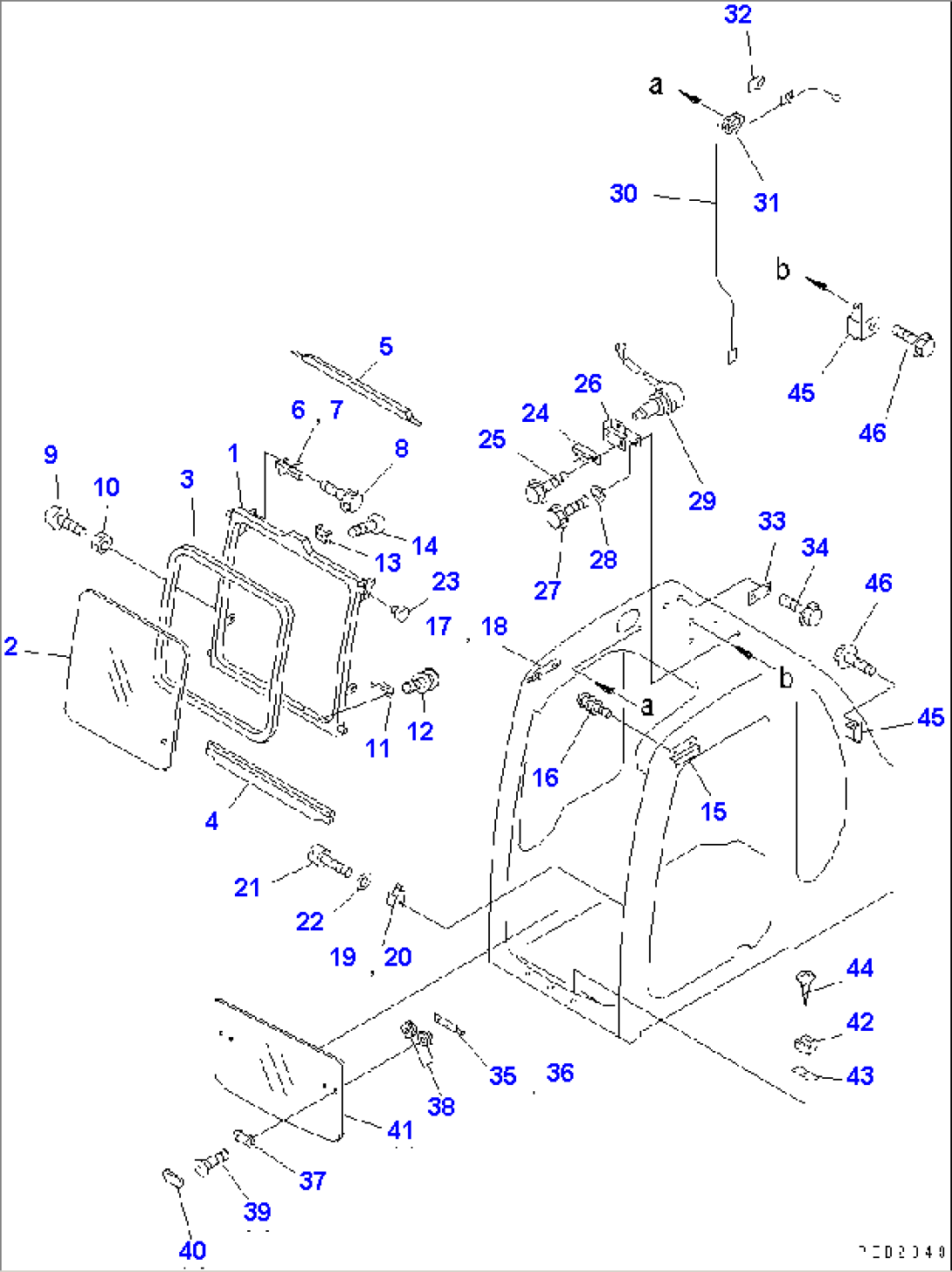

OPERATOR'S CAB (FRONT WINDOW)(#K32001-)

Item	Part No.	Part Name	Qty	Serial No.
	(208-54-K2200)	OPERATOR'S CAB ASS'Y		K32001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A1 TO K0210-07A1.
	20G-54-K2890	FRONT WINDOW ASS'Y		K32001-
1	20G-54-K2880	WINDOW		K32001-
2	20Y-54-38122	GLASS		K30001-
3	20Y-54-38132	WEATHER STRIP		K30001-
4	20Y-54-38142	SEAL		K30001-
5	20Y-54-38152	SEAL		K30001-
6	20Y-54-43130	LATCH ASS'Y,L.H.		K30001-
7	20Y-54-43140	LATCH ASS'Y,R.H.		K30001-
8	01435-30816	BOLT		K30001-
9	20Y-54-14290	STOPPER		K30001-
10	01580-11008	NUT		K30001-
11	20Y-54-14590	HANDLE		K30001-
12	01023-10616	SCREW		K30001-
13	20Y-54-14310	STRIKER		K30001-
14	20Y-54-14280	SCREW		K30001-
15	20Y-54-37810	STOPPER,L.H.		K30001-
16	01023-70416	SCREW		K30001-
17	20Y-54-37820	STOPPER,R.H.		K30001-
18	01023-70416	SCREW		K30001-
19	20Y-54-36834	BLOCK,L.H.		K30001-
20	20Y-54-36844	BLOCK,R.H.		K30001-
21	01252-50635	BOLT		K30001-
22	01641-50608	WASHER		K30001-
23	20Y-54-39152	ROLLER		K30001-
24	205-54-63310	LOCK ASS'Y		K30001-
25	01435-30820	BOLT		K30001-
26	20Y-54-39363	BRACKET		K30001-
27	01435-30820	BOLT		K30001-
28	154-61-16570	WASHER		K30001-
29	08074-40000	SWITCH		K30001-
30	20Y-54-39590	WIRING HARNESS		K30001-
31	20Y-54-36150	GROMMET		K30001-
32	08051-00801	CLIP		K30001-
33	20Y-54-14721	LOCK		K30001-
34	01435-30820	BOLT		K30001-
	20Y-54-43201	LOWER WINDOW ASS'Y		K30001-
35	20Y-54-43210	LATCH ASS'Y,L.H.		K30001-
36	20Y-54-43220	LATCH ASS'Y,R.H.		K30001-
37	20Y-54-36142	PLATE		K30001-
38	08037-01610	GROMMET		K30001-
39	01225-70612	SCREW		K30001-
40	20Y-54-36211	COVER		K30001-
41	20Y-54-36113	GLASS		K30001-
42	20Y-54-36171	SEAT		K30001-
43	20Y-54-36230	SHIMÂ¤ 2.0MM		K30001-
44	01370-00620	SCREW		K30001-
45	20Y-54-36182	STOPPER		K30001-
46	01435-30820	BOLT		K30001-
