| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-83130 | GLASS | 7001- | |
| 2 | 561-54-83240 | WEATHER STRIP | 7001- | |
| 3 | 561-54-83150 | GLASS | 7001- | |
| 4 | 561-54-83160 | GLASS | 7001- | |
| 5 | 561-54-83180 | DAM | 7001- | |
| 6 | 561-54-83170 | GLASS | 7001- | |
| 7 | 561-54-83190 | DAM | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Operator's compartment and control system
- Operator's cab (glass)(#7001 )
Поиск по каталогу

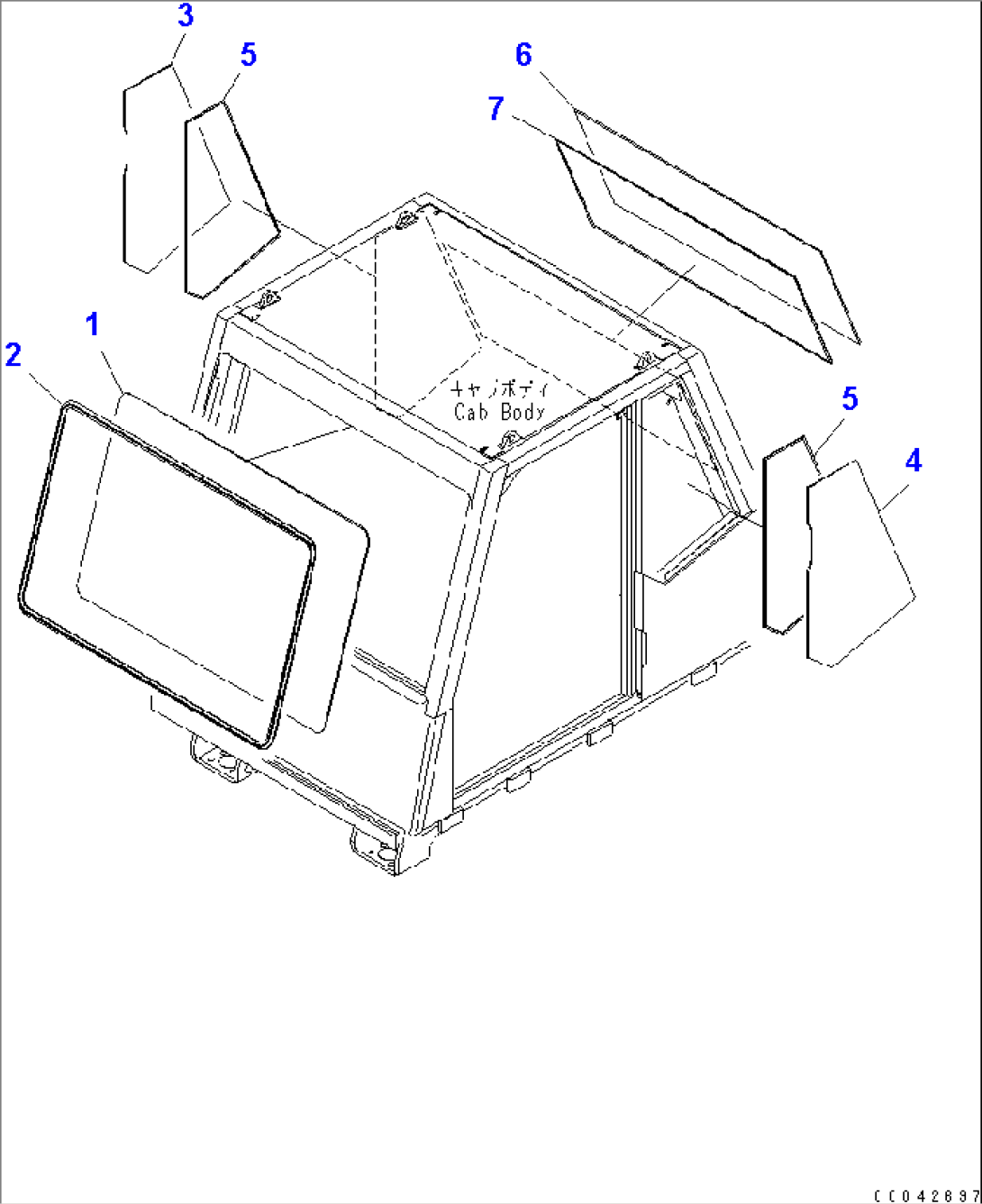

OPERATOR'S CAB (GLASS)(#7001-)
