| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81275 | BOLT | 30042- | |
| 2 | 01643-31232 | WASHER | 30042- | |
| 3 | 01580-11613 | NUT | 30042- | |
| 4 | 01643-31645 | WASHER | 30042- | |
| 5 | 01010-81230 | BOLT | 30042- | |
| 6 | 01643-31232 | WASHER | 30042- | |
| 7 | 20Y-54-13480 | PLUG | 30042- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400 6z s/n 30001 up (excel spec.)
- Operator's compartment and control system
- Operator's cab (installation parts)(#30042 )
Поиск по каталогу

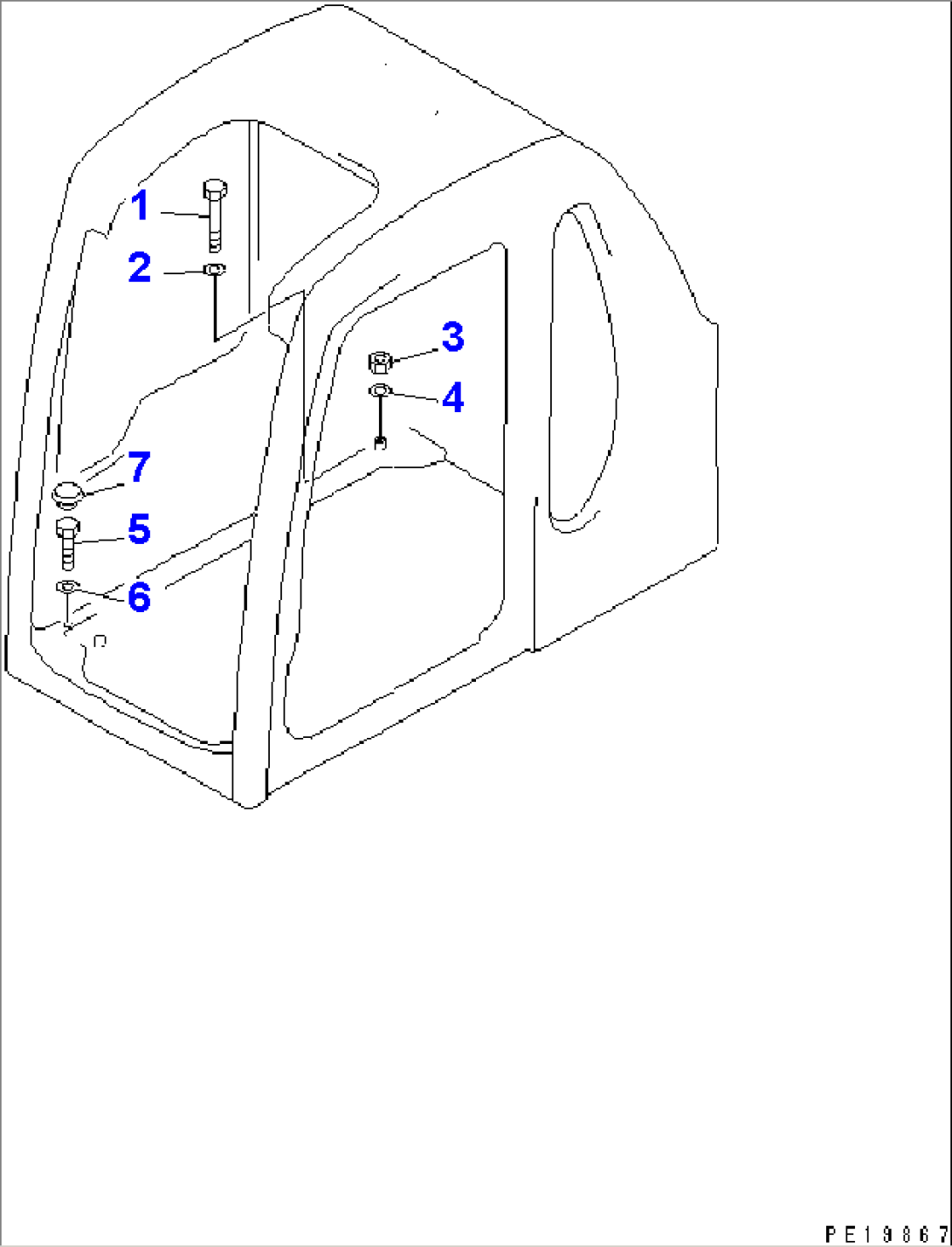

OPERATOR'S CAB (INSTALLATION PARTS)(#30042-)
