| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-51275 | BOLT | K30001-@ | |
| 2 | 01643-31232 | WASHER | K30001-@ | |
| 3 | 01580-11613 | NUT | K30001-@ | |
| 4 | 01643-31645 | WASHER | K30001-@ | |
| 5 | 01010-51230 | BOLT | K30001-@ | |
| 6 | 01643-31232 | WASHER | K30001-@ | |
| 7 | 20Y-54-13480 | PLUG | K30001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc240lc 6k s/n k30001 up
- Operator's compartment and control system
- Operator's cab (installation parts)(#k30001 k31999)
Поиск по каталогу

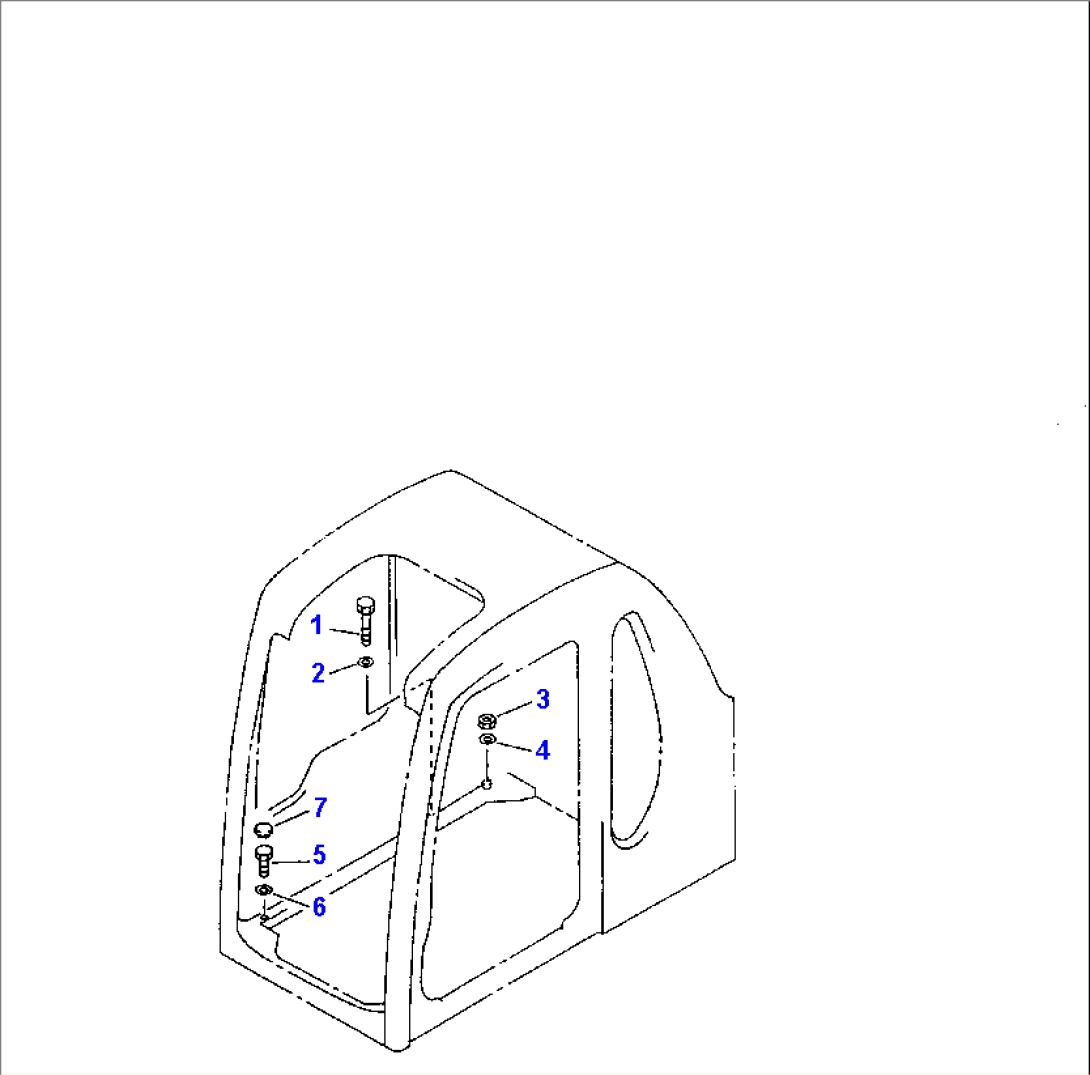

OPERATOR'S CAB (INSTALLATION PARTS)(#K30001-K31999)
