| Item | Part No. | Part Name | Qty | Serial No. |
| (561-54-84201) | DOOR ASS'Y,L.H. | 7582- | ||
| (561-54-84200) | DOOR ASS'Y,L.H. | 7001-7581 | ||

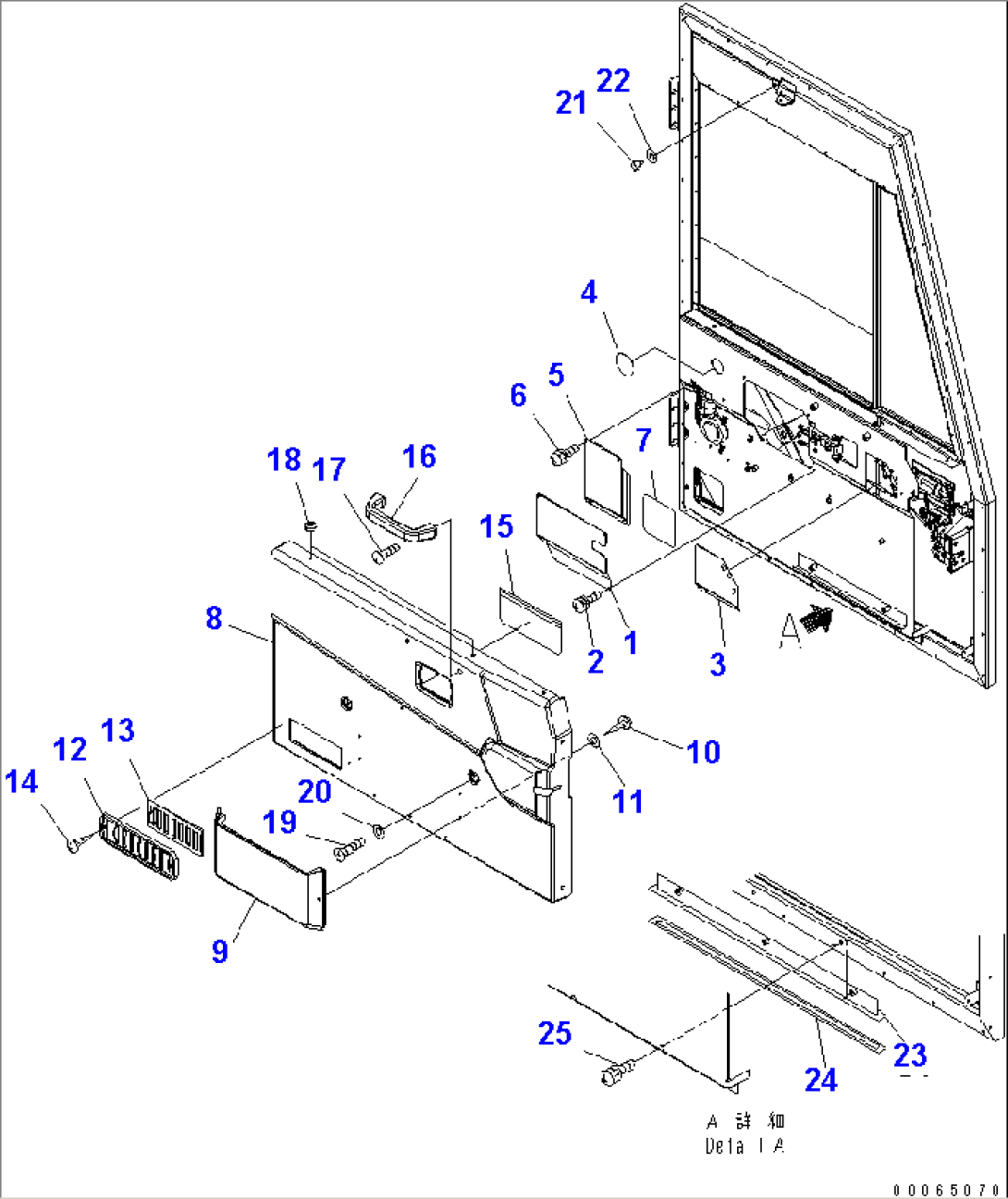

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0200-02A0 TO K0200-04A0. | ||||
| 1 | 561-54-84220 | PLATE | 7001- | |
| 2 | 01023-60410 | SCREW | 7001- | |
| 3 | 561-54-84230 | SHEET | 7001- | |
| 4 | 569-54-84690 | SHEET | 7001- | |
| 5 | 561-54-84240 | COVER | 7001- | |
| 6 | 01023-60410 | SCREW | 7001- | |
| 7 | 561-54-84640 | SHEET | 7001- | |
| 8 | 561-54-84123 | COVER | 7001- | |
| 9 | 56E-54-24470 | 7001- | ||
| 10 | 01370-00412 | SCREW | 7244- | |
| 10 | 01370-00416 | SCREW | 7001-7243 | |
| 11 | 01640-20408 | WASHER | 7001- | |
| 12 | 566-54-24811 | GRILLE | 7001- | |
| 13 | 566-54-24821 | SHUTTER ASS'Y | 7001- | |
| 14 | 01370-00616 | SCREW | 7001- | |
| 15 | 561-54-84650 | RUBBER | 7001- | |
| 16 | 361-54-21150 | HANDLE | 7001- | |
| 17 | 01245-00816 | SCREW | 7001- | |
| 18 | 08037-01008 | GROMMET | 7001- | |
| 19 | 01225-70616 | SCREW | 7001- | |
| 20 | 418-926-3490 | WASHER | 7001- | |
| 21 | 56B-54-13340 | STOPPER | 7001- | |
| 22 | 01640-20816 | WASHER | 7001- | |
| 23 | 561-54-84271 | COVER | 7001- | |
| 24 | 561-54-84770 | SHEET | 7001- | |
| 25 | 01023-60616 | SCREW | 7001- |
