| Item | Part No. | Part Name | Qty | Serial No. |
| (567-54-73005) | ROPS CAB ASS'Y | 1201-1424 | ||
| \6\ | ROPS CAB ASS'Y,REWORK (ENGINE SIDE COVER) | 1201- | ||
| (567-54-73002) | ROPS CAB ASS'Y | 1001-1200 | ||

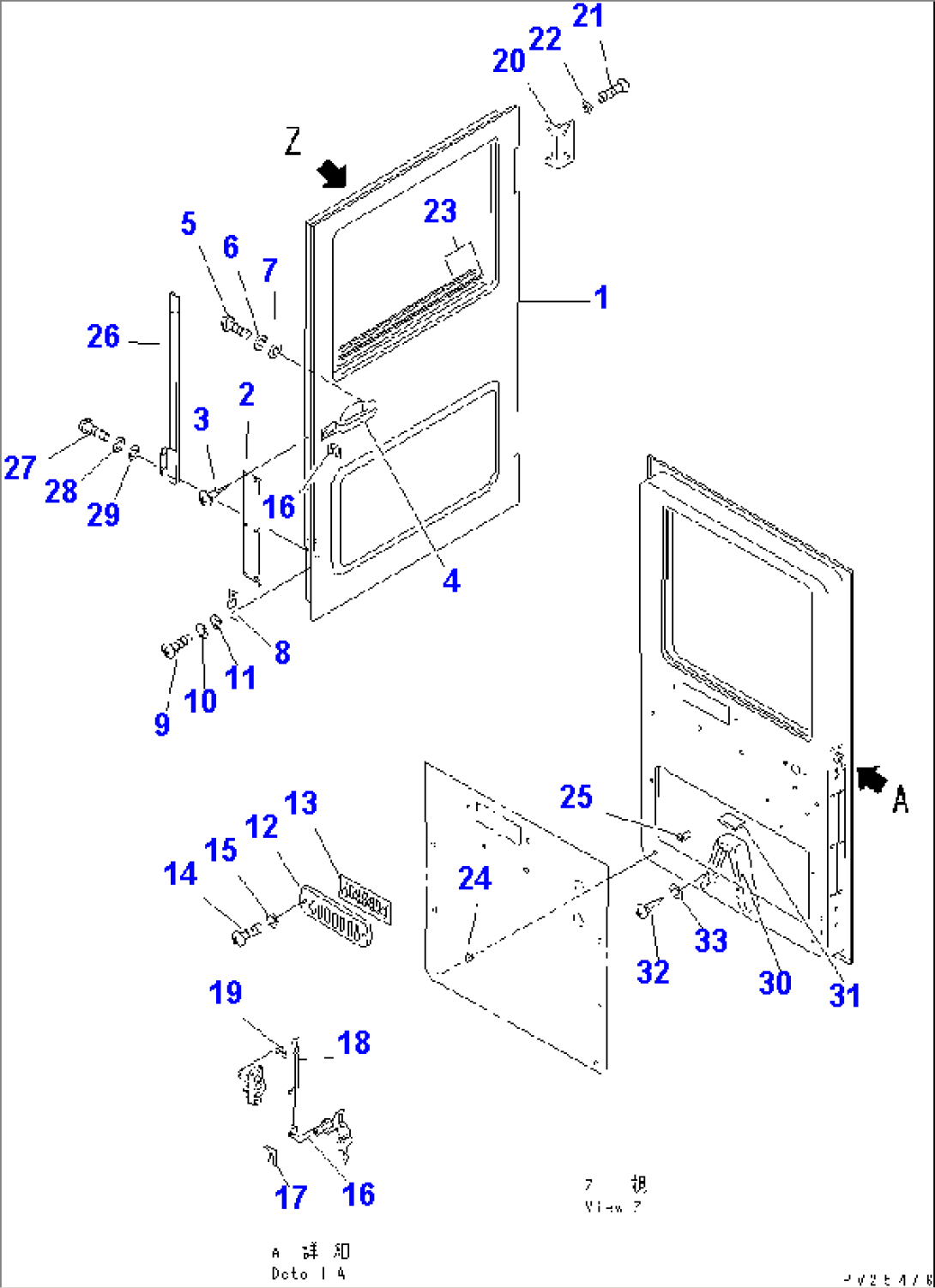

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-09A0. | ||||
| 567-54-74101 | DOOR ASS'Y,L.H. | 1201- | ||
| 567-54-74100 | DOOR ASS'Y,L.H. | 1001-1200 | ||
| 1 | 567-54-74120 | DOOR | 1001- | |
| 2 | 566-54-24251 | COVER | 1001- | |
| 3 | 01370-00510 | SCREW | 1001- | |
| 4 | 566-54-44510 | HANDLE,DOOR | 1001- | |
| 5 | 01220-40610 | SCREW | 1001- | |
| 6 | 01602-20619 | WASHER | 1001- | |
| 7 | 01640-20610 | WASHER | 1001- | |
| 8 | 566-54-23470 | DOVE TAIL | 1001- | |
| 9 | 01220-40616 | SCREW | 1001- | |
| 10 | 01602-20619 | WASHER | 1001- | |
| 11 | 01640-20610 | WASHER | 1001- | |
| 12 | 566-54-24811 | GRILLE | 1001- | |
| 13 | 566-54-24821 | SHUTTER ASS'Y | 1001- | |
| 14 | 01220-70625 | SCREW | 1001- | |
| 15 | 01602-50619 | WASHER | 1001- | |
| 16 | 566-54-24442 | KEY ASS'Y | 1001- | |
| 17 | 566-54-24920 | CLIP | 1001- | |
| 18 | 566-54-24830 | ROD | 1001- | |
| 19 | 566-54-24840 | SNAP | 1001- | |
| 20 | 566-54-24240 | HINGE | 1001- | |
| 21 | 01224-40820 | SCREW | 1001- | |
| 22 | 566-54-13570 | WASHER | 1001- | |
| 23 | 566-54-44920 | SEAL | 1001- | |
| 24 | 566-54-23951 | CLIP | 1001- | |
| 25 | 566-54-23960 | GROMMET | 1001- | |
| 26 | 566-54-24162 | CHANNEL,L.H. | 1001- | |
| 27 | 01220-40616 | SCREW | 1001- | |
| 28 | 01602-20619 | WASHER | 1001- | |
| 29 | 01640-20610 | WASHER | 1001- | |
| 30 | 566-54-24132 | STOPPER | 1001- | |
| 31 | 566-54-24141 | STOPPER,RUBBER | 1001- | |
| 32 | 01370-00510 | SCREW | 1001- | |
| 33 | 01601-20513 | WASHER | 1001- |
