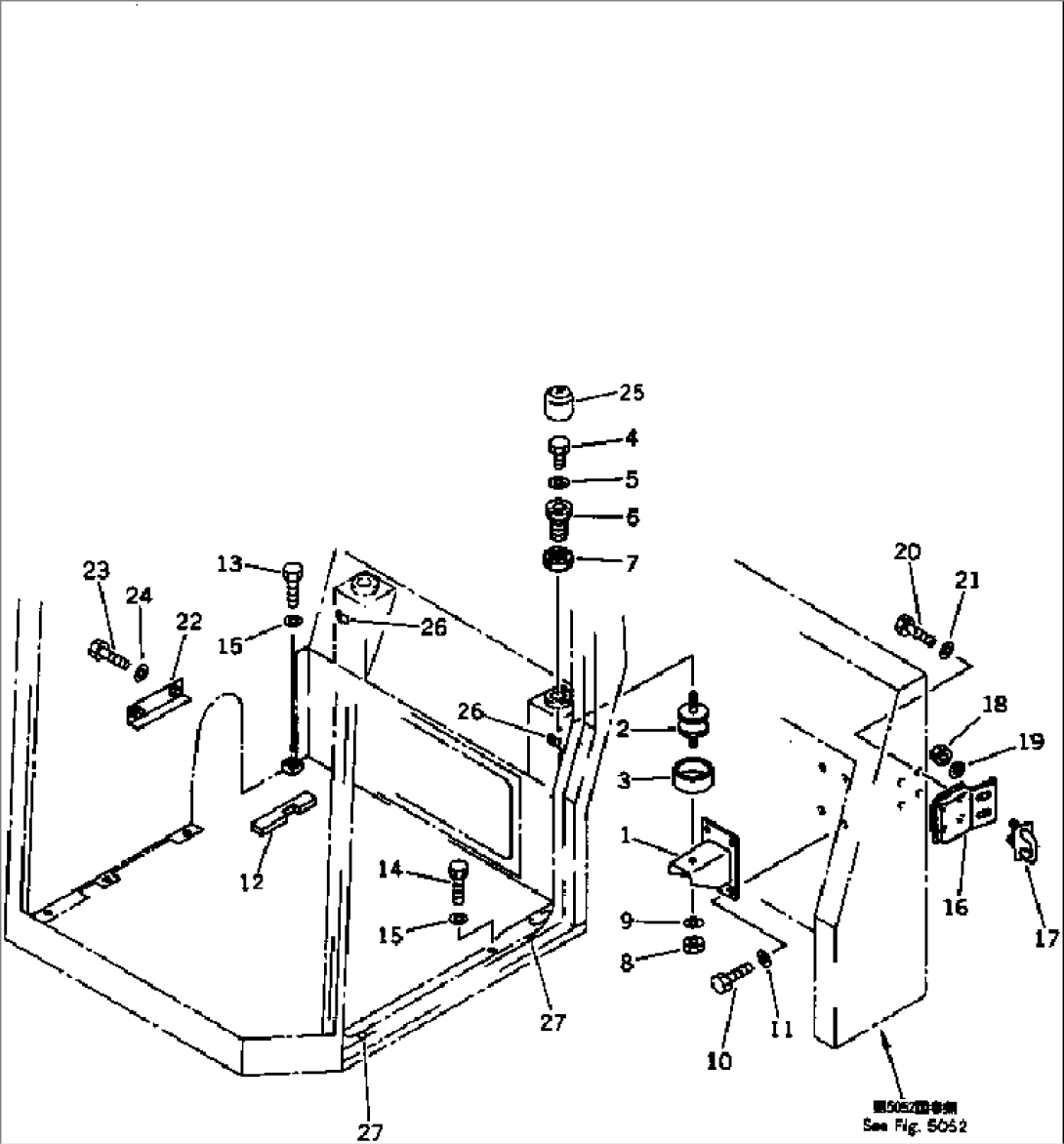

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21W-54-12130 | BRACKET | 1001- | |
| 2 | 20R-01-12111 | CUSHION | 1001- | |
| 3 | 21W-54-12210 | STOPPER | 1001- | |
| 4 | 21W-54-12150 | BOLT | 1001- | |
| 5 | 203-26-51240 | WASHER | 1001- | |
| 6 | 21W-54-12140 | JOINT | 1001- | |
| 7 | 21W-54-12240 | NUT | 1001- | |
| 8 | 01580-11210 | NUT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 01010-51025 | BOLT | 1001- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 21W-54-14150 | SHEET | 1001- | |
| 13 | 01010-51085 | BOLT | 1151- | |
| 01010-51045 | BOLT | 1001-1150 | ||
| 14 | 01010-51025 | BOLT | 1151- | |
| 01010-51025 | BOLT | 1001-1150 | ||
| 15 | 01643-31032 | WASHER | 1151- | |
| 01643-31032 | WASHER | 1001-1150 | ||
| 16 | 21W-54-14932 | BRACKET | 1680- | |
| 21W-54-14931 | BRACKET | 1001-1679 | ||
| 17 | 21W-54-14921 | BRACKET | 1680- | |
| 21W-54-14920 | BRACKET | 1001-1679 | ||
| 18 | 01580-11008 | NUT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 01010-51025 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 21W-54-11831 | PLATE | 1680- | |
| 21W-54-11830 | PLATE | 1001-1679 | ||
| 23 | 01010-51016 | BOLT | 1001- | |
| 24 | 01643-31032 | WASHER | 1001- | |
| 25 | 21W-54-14990 | CAP | 1149- | |
| 26 | 08051-00801 | CLIP | 1001- | |
| 27 | 20U-54-13530 | SHEET | 1001- |
