| Item | Part No. | Part Name | Qty | Serial No. |

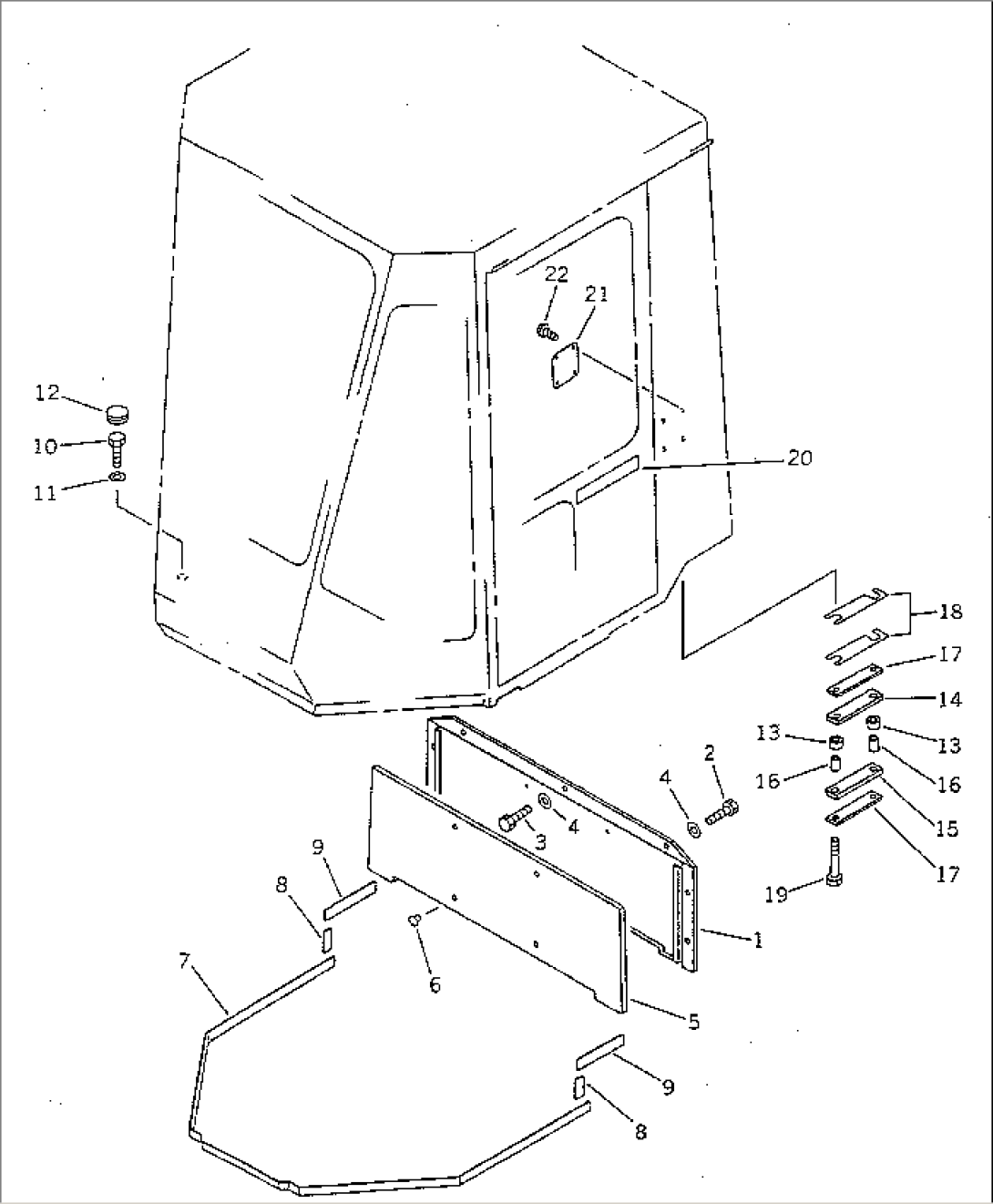

| 417-54-15011 | OPERATOR'S CAB ASS'Y | 12001- | ||
| 1 | 417-54-15414 | PLATE | 12001- | |
| 2 | 01010-50816 | BOLT | 12001- | |
| 3 | 01010-50825 | BOLT | 12001- | |
| 4 | 01643-30823 | WASHER | 12001- | |
| 5 | 417-54-15512 | PAD | 12001- | |
| 6 | 09416-10000 | BUTTON | 12001- | |
| 7 | 417-54-15110 | SEAL | 12001- | |
| 8 | 417-54-15120 | SEAL | 12001- | |
| 9 | 417-54-15130 | SEAT | 12001- | |
| 10 | 01010-51225 | BOLT | 12001- | |
| 11 | 01643-31232 | WASHER | 12001- | |
| 12 | 09415-02512 | CAP | 12001- | |
| 13 | 417-54-15521 | CUSHION | 12001- | |
| 14 | 417-54-15570 | CUSHION | 12001- | |
| 15 | 417-54-15560 | CUSHION | 12001- | |
| 16 | 417-54-15541 | SPACER | 12001- | |
| 17 | 417-54-15580 | PLATE | 12001- | |
| 18 | 417-54-15470 | SHIM, 1.0MM | 12001- | |
| 19 | 01010-51280 | BOLT | 12001- | |
| 20 | 417-93-11280 | PLATE, NAME,KOMATSU | 12001- | |
| 21 | \6\ | PLATE, SAFETY,(LIMITED SUPPLY) | 12001- | |
| 22 | 04418-13060 | SCREW | 12001- |
