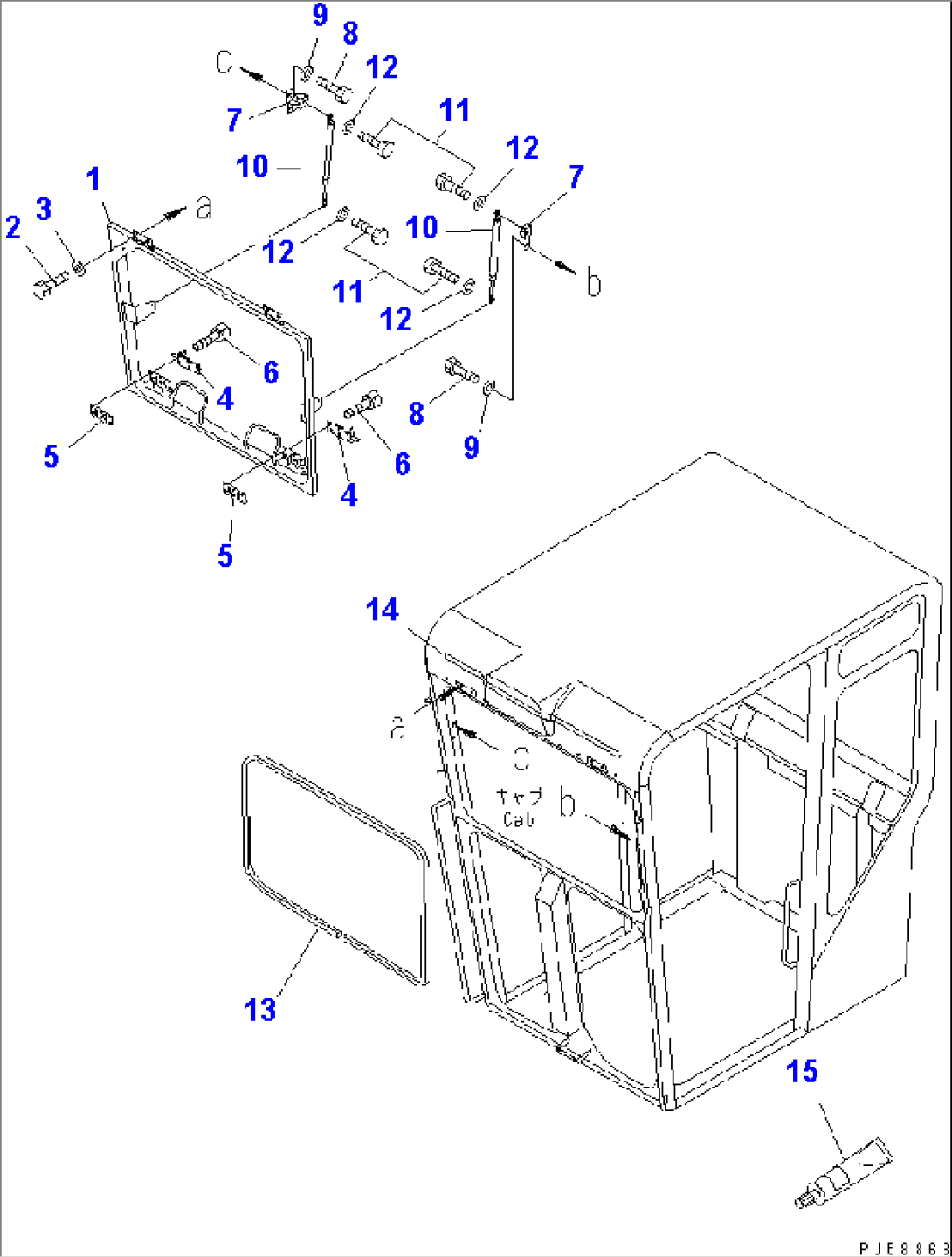

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-950-9440 | DOOR | 5001- | |
| 2 | 01010-81020 | BOLT | 5001- | |
| 3 | 01643-31032 | WASHER | 5001- | |
| 4 | 23D-950-9560 | LATCH,L.H. | 5001- | |
| 23D-950-9570 | LATCH,R.H. | 5001- | ||
| 5 | 23D-950-9540 | PLATE | 5001- | |
| 6 | 01252-60516 | BOLT | 5001- | |
| 7 | 23D-950-9420 | BRACKET,L.H. | 5001- | |
| 23D-950-9430 | BRACKET,R.H. | 5001- | ||
| 8 | 01010-80816 | BOLT | 5001- | |
| 9 | 01643-30823 | WASHER | 5001- | |
| 10 | 205-54-63650 | GAS SPRING ASS'Y | 5001- | |
| 11 | 23D-950-5280 | BOLT | 5001- | |
| 12 | 01643-30823 | WASHER | 5001- | |
| 13 | 23B-951-3260 | SEAL | 5001- | |
| 14 | 23D-950-4520 | SEAL | 5001- | |
| 15 | 120-Y79-4910 | ADHESIVE | 5001- |
