| Item | Part No. | Part Name | Qty | Serial No. |
| (56D-80-16300) | CAB ASS'Y,ROPS | 1001- | ||

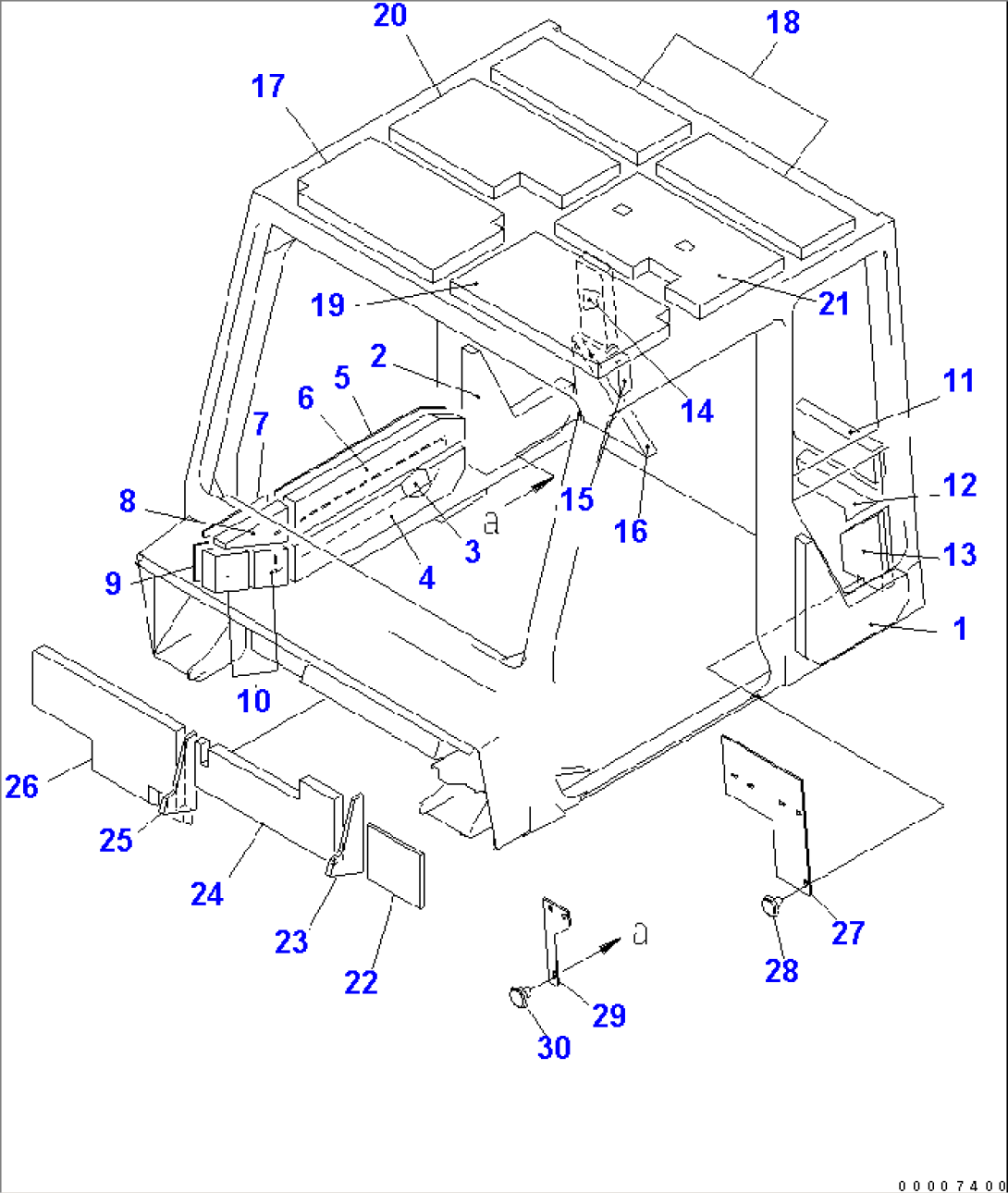

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0200-01A0 TO K0200-18A0. | ||||
| 1 | 56B-54-13860 | SHEET | 1001- | |
| 2 | 56B-54-13870 | SHEET | 1001- | |
| 3 | 56B-54-14520 | DUMPER | 1001- | |
| 4 | 56B-54-13881 | SHEET | 1001- | |
| 5 | 56B-54-14530 | DUMPER | 1001- | |
| 6 | 56B-54-14930 | SHEET | 1001- | |
| 7 | 56B-54-14540 | DUMPER | 1001- | |
| 8 | 56B-54-14940 | SHEET | 1001- | |
| 9 | 56B-54-14610 | DUMPER | 1001- | |
| 10 | 56B-54-14950 | SHEET | 1001- | |
| 11 | 56D-80-16640 | SHEET | 1001- | |
| 12 | 56D-80-16651 | SHEET | 1001- | |
| 13 | 56D-80-16660 | SHEET | 1001- | |
| 14 | 56D-80-16680 | SHEET | 1001- | |
| 15 | 56D-80-16690 | SHEET | 1001- | |
| 16 | 56B-54-13430 | SHEET | 1001- | |
| 17 | 56B-54-13670 | SHEET | 1001- | |
| 18 | 56B-54-13680 | SHEET | 1001- | |
| 19 | 56B-54-13620 | SHEET | 1001- | |
| 20 | 56B-54-13940 | SHEET | 1001- | |
| 21 | 56B-54-13951 | SHEET | 1001- | |
| 22 | 56B-54-14841 | SHEET | 1001- | |
| 23 | 56B-54-14852 | SHEET | 1001- | |
| 24 | 56B-54-14861 | SHEET | 1001- | |
| 25 | 56B-54-14870 | SHEET | 1001- | |
| 26 | 56B-54-14891 | SHEET | 1001- | |
| 27 | 56D-80-16671 | PAD | 1001- | |
| 28 | 20Y-54-14560 | CLIP ASS'Y | 1001- | |
| 29 | 56D-80-16710 | PAD | 1001- | |
| 30 | 20Y-54-14560 | CLIP ASS'Y | 1001- |
