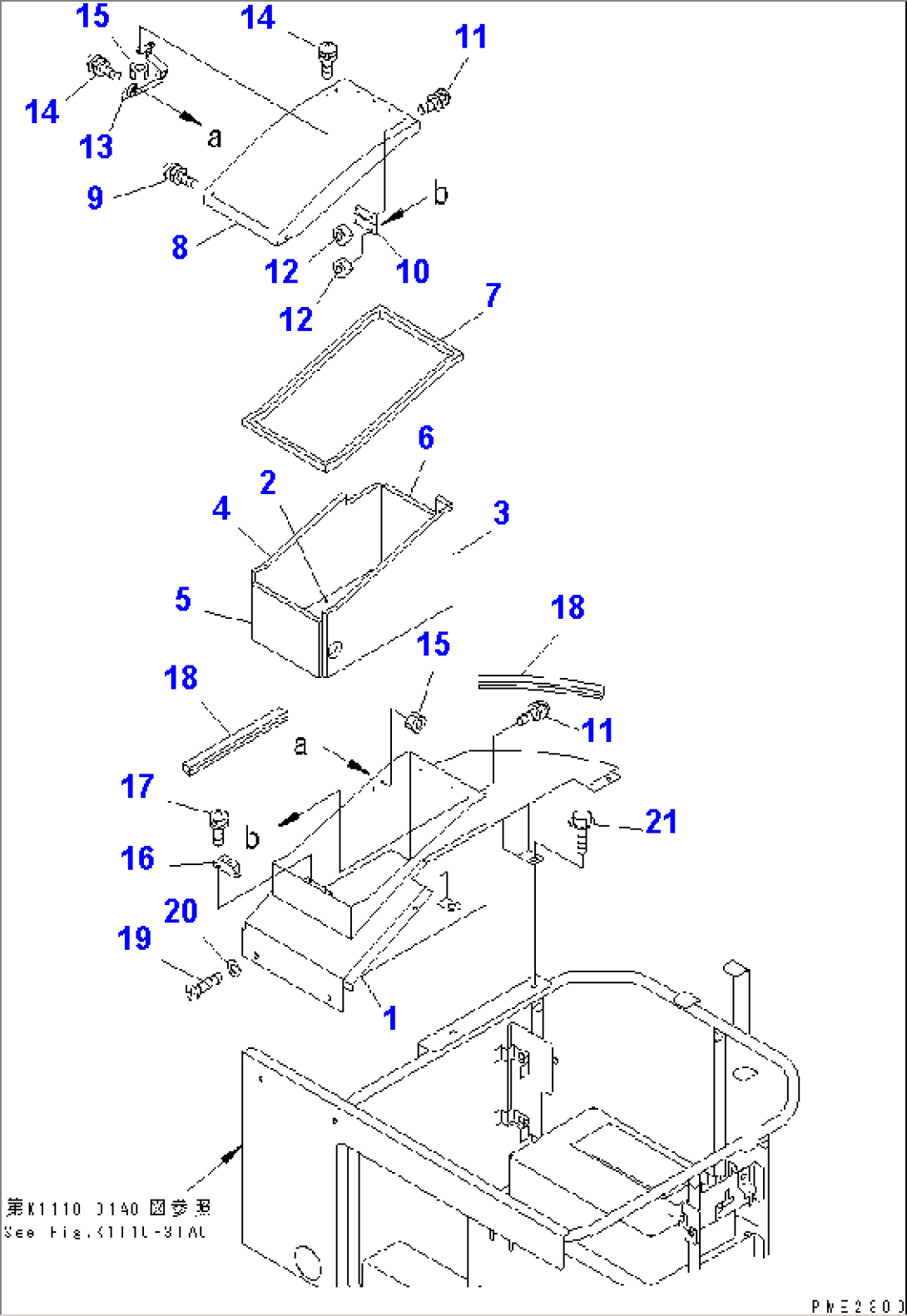

| Item | Part No. | Part Name | Qty | Serial No. |
| 22T-46-23100 | COVER ASS'Y | 10001- | ||
| 1 | 22T-46-23130 | COVER | 10001- | |
| 2 | 22T-56-23230 | SHEET | 10001- | |
| 3 | 22T-56-23320 | SHEET | 10001- | |
| 4 | 22T-56-23330 | SHEET | 10001- | |
| 5 | 22T-56-23340 | SHEET | 10001- | |
| 6 | 22T-56-23350 | SHEET | 10001- | |
| 7 | 23S-56-32320 | SEAL | 10001- | |
| 8 | 23S-56-53860 | COVER | 10001- | |
| 9 | 01023-20412 | SCREW | 10001- | |
| 10 | 09455-02013 | HINGE | 10001- | |
| 11 | 01023-20310 | SCREW | 10001- | |
| 12 | 01580-10302 | NUT | 10001- | |
| 13 | 23S-46-53330 | STAY | 10001- | |
| 14 | 01023-20310 | SCREW | 10001- | |
| 15 | 01580-10302 | NUT | 10001- | |
| 16 | 22T-54-17610 | CATCHER | 10001- | |
| 17 | 01023-20310 | SCREW | 10001- | |
| 18 | 421-56-21780 | FINISHER | 10001- | |
| 19 | 01225-70616 | SCREW | 10001- | |
| 20 | 23S-55-51970 | WASHER | 10001- | |
| 21 | 01435-00816 | BOLT | 10001- |
