| Item | Part No. | Part Name | Qty | Serial No. |
| (561-54-84504) | DOOR ASS'Y,R.H. | 7582- | ||
| (561-54-84503) | DOOR ASS'Y,R.H. | 7001-7581 | ||
| (56E-54-24505) | DOOR ASS'Y,R.H. | 7001- | ||

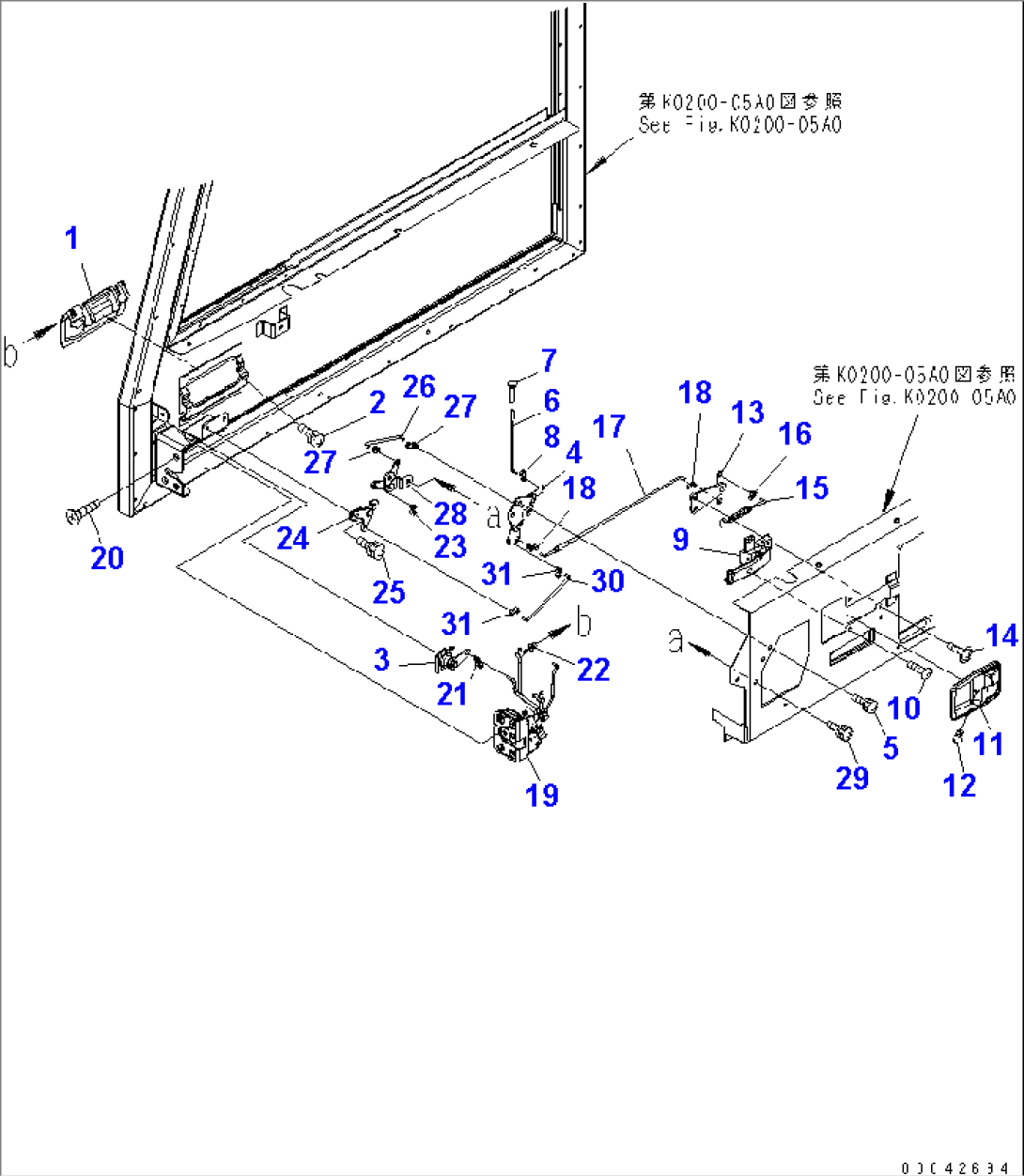

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0200-05A0 TO K0200-07A0. | ||||
| 1 | 56B-54-14270 | HANDLE | 7001- | |
| 2 | 01023-60612 | SCREW | 7001- | |
| 3 | 427-56-11790 | LOCK ASS'Y | 7001- | |
| 4 | 561-54-84420 | BRACKET | 7001- | |
| 5 | 01023-60616 | SCREW | 7001- | |
| 6 | 561-54-84251 | ROD | 7001- | |
| 7 | 419-54-16880 | KNOB | 7001- | |
| 8 | 421-56-11611 | HOOK | 7001- | |
| 9 | 421-56-11730 | HANDLE | 7001- | |
| 10 | 01245-00616 | SCREW | 7001- | |
| 11 | 421-56-11740 | COVER | 7001- | |
| 12 | 421-56-11860 | SCREW | 7001- | |
| 13 | 56E-54-24190 | BRACKET | 7001- | |
| 14 | 01023-60616 | SCREW | 7001- | |
| 15 | 423-56-21240 | ROD | 7001- | |
| 16 | 421-56-11611 | HOOK | 7001- | |
| 17 | 56E-54-24291 | ROD | 7001- | |
| 18 | 421-56-11611 | HOOK | 7001- | |
| 19 | 561-54-84550 | LOCK | 7001- | |
| 20 | 01224-70616 | SCREW | 7001- | |
| 21 | 205-54-71830 | SNAP | 7001- | |
| 22 | 22B-54-16340 | SNAP | 7001- | |
| 23 | 421-56-11611 | HOOK | 7001- | |
| 24 | 561-54-84440 | LINK ASS'Y | 7001- | |
| 25 | 01023-60616 | SCREW | 7001- | |
| 26 | 561-54-84170 | ROD | 7001- | |
| 27 | 421-56-11611 | HOOK | 7001- | |
| 28 | 561-54-84160 | LEVER | 7001- | |
| 29 | 01023-60616 | SCREW | 7001- | |
| 30 | 561-54-84181 | ROD | 7001- | |
| 31 | 421-56-11611 | HOOK | 7001- |
