| Item | Part No. | Part Name | Qty | Serial No. |
| (561-54-84504) | DOOR ASS'Y,R.H. | 11034- | ||
| (561-54-84503) | DOOR ASS'Y,R.H. | 11001-11033 | ||
| (56E-54-24505) | DOOR ASS'Y,R.H. | 11001- | ||

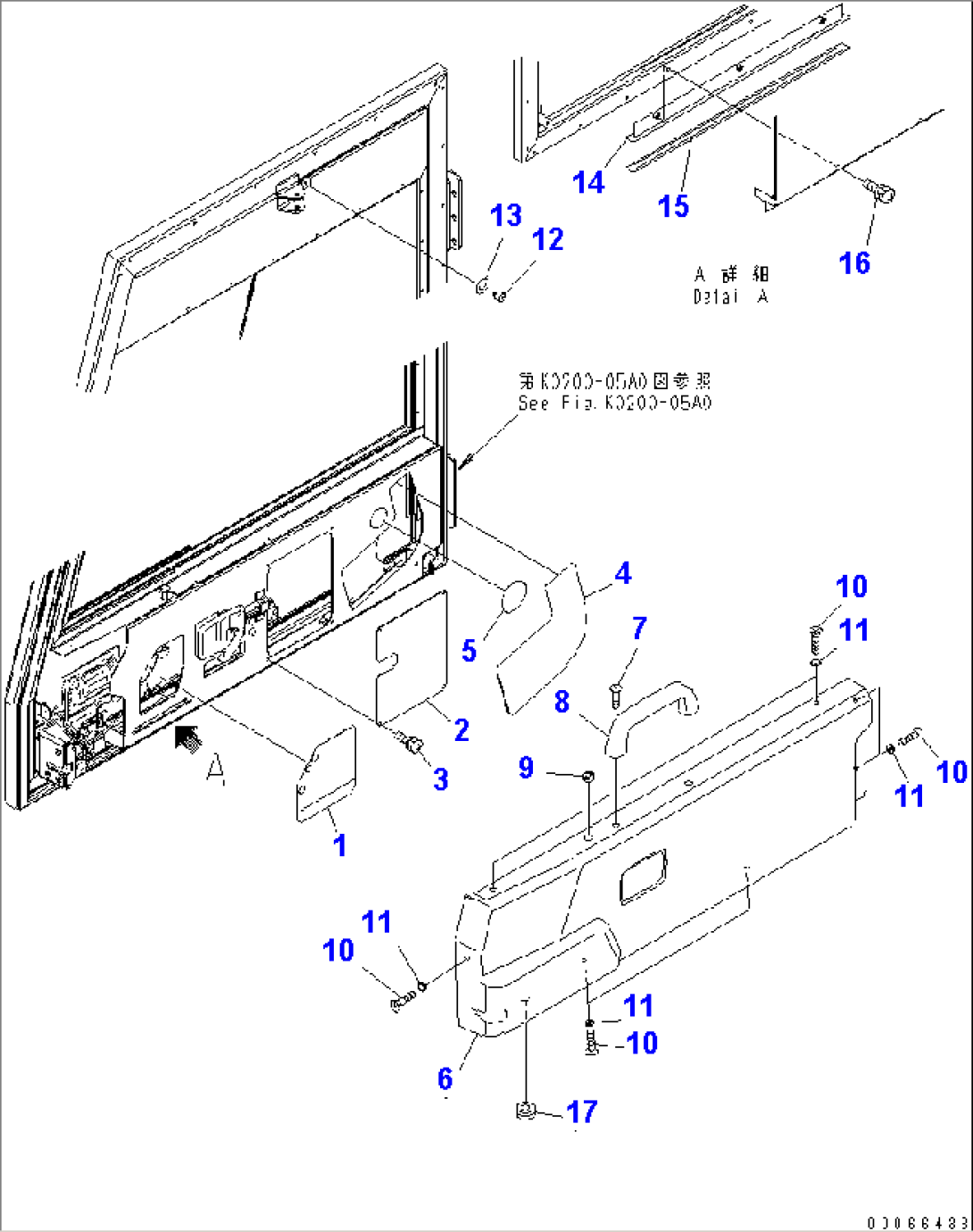

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0200-05A0 TO K0200-07A0. | ||||
| 1 | 561-54-84230 | SHEET | 11001- | |
| 2 | 561-54-84620 | PLATE | 11001- | |
| 3 | 01023-60410 | SCREW | 11001- | |
| 4 | 561-54-84630 | SHEET | 11001- | |
| 5 | 569-54-84690 | SHEET | 11001- | |
| 6 | 561-54-84523 | COVER | 11001- | |
| 7 | 361-54-21150 | HANDLE | 11001- | |
| 8 | 01245-00816 | SCREW | 11001- | |
| 9 | 08037-01008 | GROMMET | 11001- | |
| 10 | 01225-70616 | SCREW | 11001- | |
| 11 | 418-926-3490 | WASHER | 11001- | |
| 12 | 56B-54-13340 | STOPPER | 11001- | |
| 13 | 01640-20816 | WASHER | 11001- | |
| 14 | 561-54-84271 | COVER | 11001- | |
| 15 | 561-54-84770 | SHEET | 11001- | |
| 16 | 01023-60616 | SCREW | 11001- | |
| 17 | 09415-02512 | CAP | 11001- |
