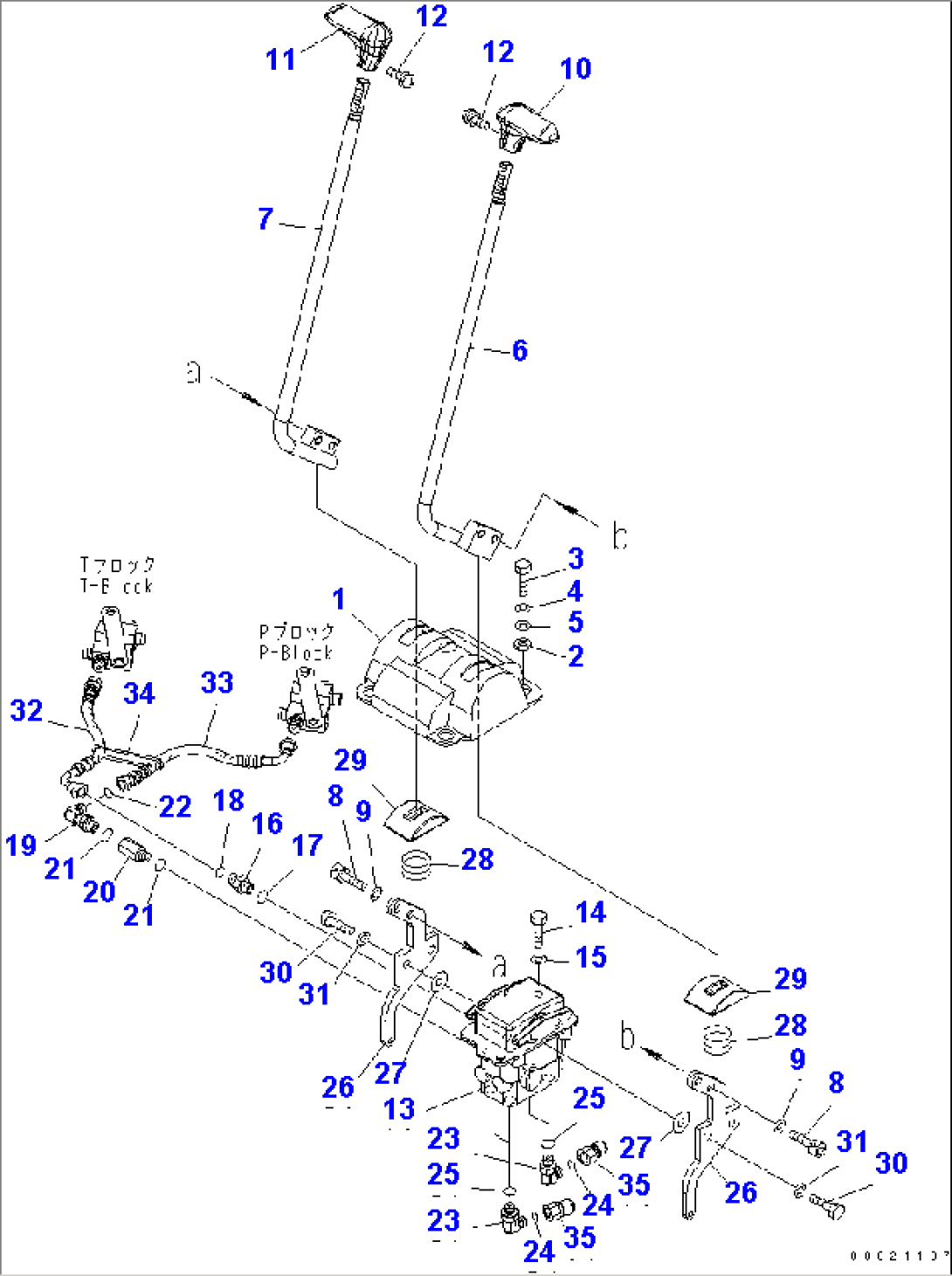

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 457-694 | COVER | 3001- | |
| 2 | 457-661 | COLLAR | 3001- | |
| 3 | 107-966 | BOLT | 3001- | |
| 4 | 455-132 | WASHER | 3001- | |
| 5 | 455-141 | WASHER | 3001- | |
| 6 | 457-988 | LEVER,L.H. | 3001- | |
| 7 | 457-986 | LEVER,R.H. | 3001- | |
| 8 | 456-877 | BOLT | 3001- | |
| 9 | 455-132 | WASHER | 3001- | |
| 10 | 453-088 | KNOB,L.H. | 3001- | |
| 11 | 453-089 | KNOB,R.H. | 3001- | |
| 12 | 455-251 | SCREW | 3001- | |
| 13 | 458-270 | PILOT VALVE,(SEE FIG.Y1670-01A0) | 3001- | |
| 14 | 107-966 | BOLT | 3001- | |
| 15 | 455-132 | WASHER | 3001- | |
| 16 | 453-390 | NIPPLE | 3001- | |
| 17 | 453-523 | O-RING | 3001- | |
| 18 | 453-688 | O-RING | 3001- | |
| 19 | 452-307 | ELBOW | 3001- | |
| 20 | 453-416 | NIPPLE | 3001- | |
| 21 | 453-523 | O-RING | 3001- | |
| 22 | 453-688 | O-RING | 3001- | |
| 23 | 457-767 | ELBOW | 3001- | |
| 24 | 453-688 | O-RING | 3001- | |
| 25 | 453-523 | O-RING | 3001- | |
| 26 | 458-529 | PLATE | 3001- | |
| 27 | 457-661 | COLLAR | 3001- | |
| 28 | 458-819 | SPRING | 3001- | |
| 29 | 457-696 | COVER | 3001- | |
| 30 | 107-985 | BOLT | 3001- | |
| 31 | 455-220 | WASHER | 3001- | |
| 32 | 457-939 | HOSE,BLUE¤ WHITE | 3001- | |
| 450-123 | BAND¤ BLUE | 3001- | ||
| 450-128 | BAND¤ WHITE | 3001- | ||
| 33 | 457-938 | HOSE,GREEN¤ RED | 3001- | |
| 450-125 | BAND¤ GREEN | 3001- | ||
| 450-127 | BAND¤ RED | 3001- | ||
| 34 | 450-105 | BAND | 3001- | |
| 35 | 457-969 | JOINT | 3001- |
