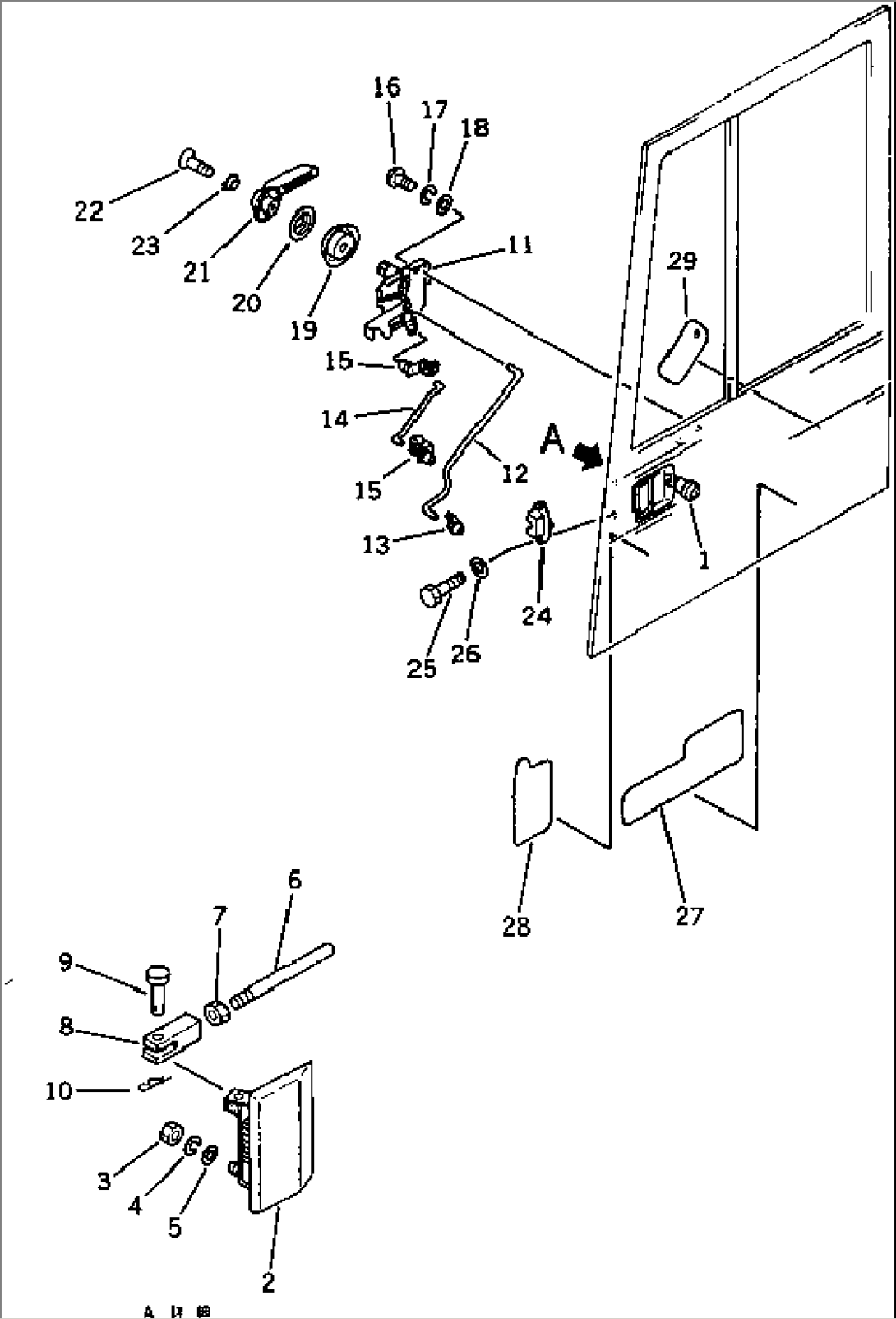

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (205-54-00322) | OPERATOR'S CAB ASS'Y | 15009-15033 | |
| \0\205-54-00321 | OPERATOR'S CAB ASS'Y | 15001-15008 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5201 TO 5211. | ||||
| (205-54-00274) | DOOR ASS'Y | 15009-15033 | ||
| \0\205-54-00273 | DOOR ASS'Y | 15001-15008 | ||
| 1 | 205-54-71642 | LOCK ASS'Y | 15001-@ | |
| 2 | 205-54-72101 | HANDLE ASS'Y | 15001-15033 | |
| 3 | 01580-10605 | NUT | 15001-15033 | |
| 4 | 01602-20619 | WASHER,SPRING | 15001-15033 | |
| 5 | 01641-20608 | WASHER | 15001-15033 | |
| 6 | 205-54-76290 | ROD | 15001-15033 | |
| 7 | 01580-10605 | NUT | 15001-15033 | |
| 8 | 04211-20634 | YOKE | 15001-@ | |
| 9 | 04205-10620 | PIN | 15001-@ | |
| 10 | 04052-00633 | PIN,SNAP | 15001-@ | |
| 205-54-71803 | CONTROL ASS'Y | 15001-15033 | ||
| 11 | 205-54-71812 | CONTROL | 15001-15033 | |
| 12 | 205-54-71721 | ROD | 15001-15033 | |
| 13 | 205-54-71840 | SNAP | 15001-@ | |
| 14 | 205-54-71822 | ROD | 15001-15033 | |
| 15 | 205-54-71830 | SNAP | 15001-@ | |
| 16 | 01220-40610 | SCREW | 15001-15033 | |
| 17 | 01602-20619 | WASHER,SPRING | 15001-15033 | |
| 18 | 01641-20608 | WASHER | 15001-15033 | |
| 19 | 566-54-24260 | BASE | 15001-@ | |
| 20 | 566-54-24270 | ESCUTCHEON | 15001-@ | |
| 21 | 205-54-71760 | HANDLE | 15001-15033 | |
| 22 | 01225-40510 | SCREW | 15001-15033 | |
| 23 | 205-54-71880 | WASHER,LOCK | 15001-15033 | |
| 24 | 205-54-71710 | LOCK ASS'Y | 15001-15033 | |
| 25 | 01010-50616 | BOLT | 15001-@ | |
| 26 | 01643-30623 | WASHER | 15001-@ | |
| 27 | 205-54-72481 | SEAL | 15001-15033 | |
| 28 | 205-54-72491 | SEAL | 15001-15033 | |
| 29 | 205-54-71780 | SEAL | 15001-15033 |
