| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-61150 | TANK ASS'Y | 7001- | |
| 2 | 01435-00620 | BOLT | 7001- | |
| 3 | 569-54-81691 | BRACKET | 7001- | |
| 4 | 01435-01016 | BOLT | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7 s/n 7001 up
- Operator's compartment and control system
- Operator's cab (window washer tank)
Поиск по каталогу

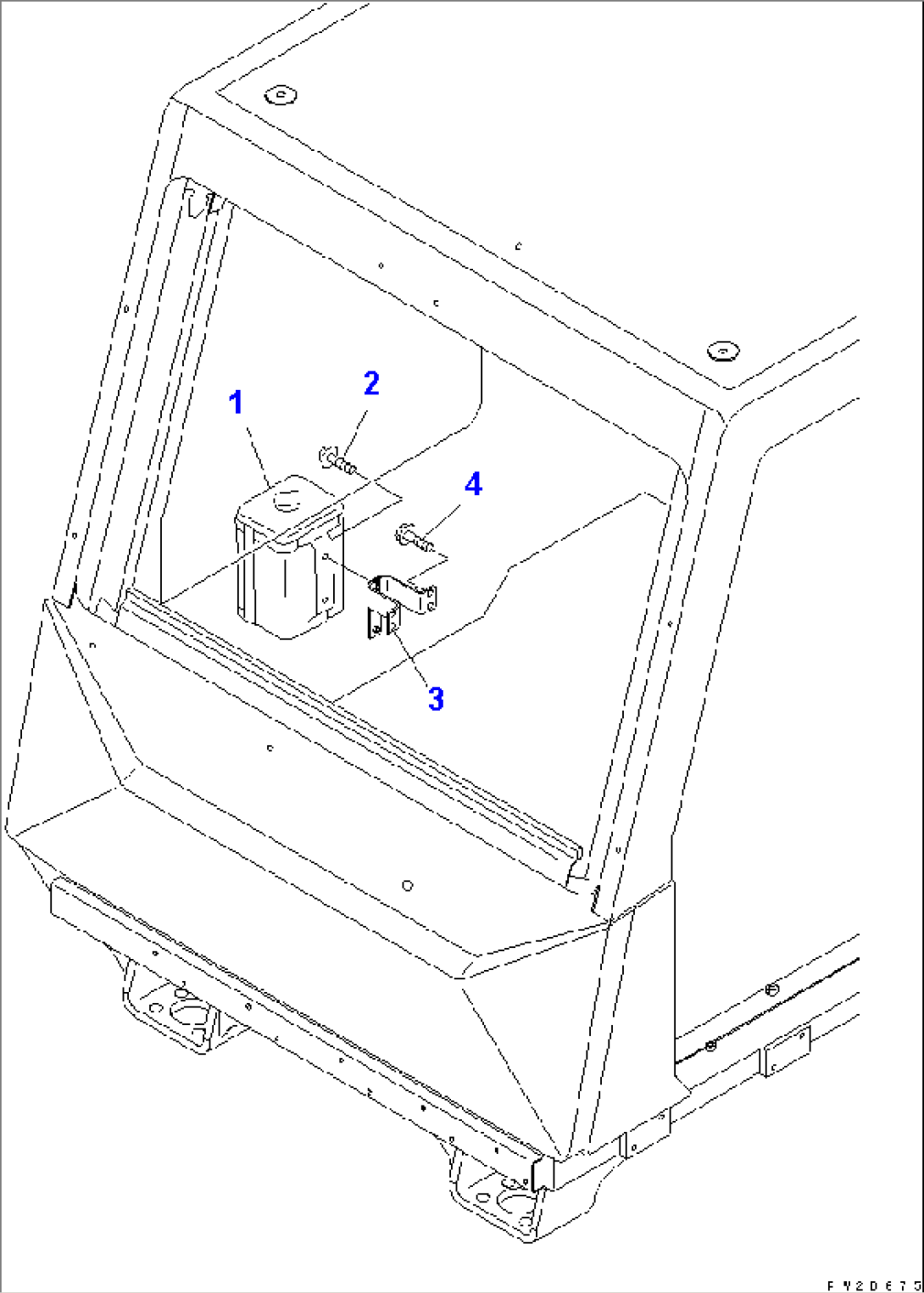

OPERATOR'S CAB (WINDOW WASHER TANK)
