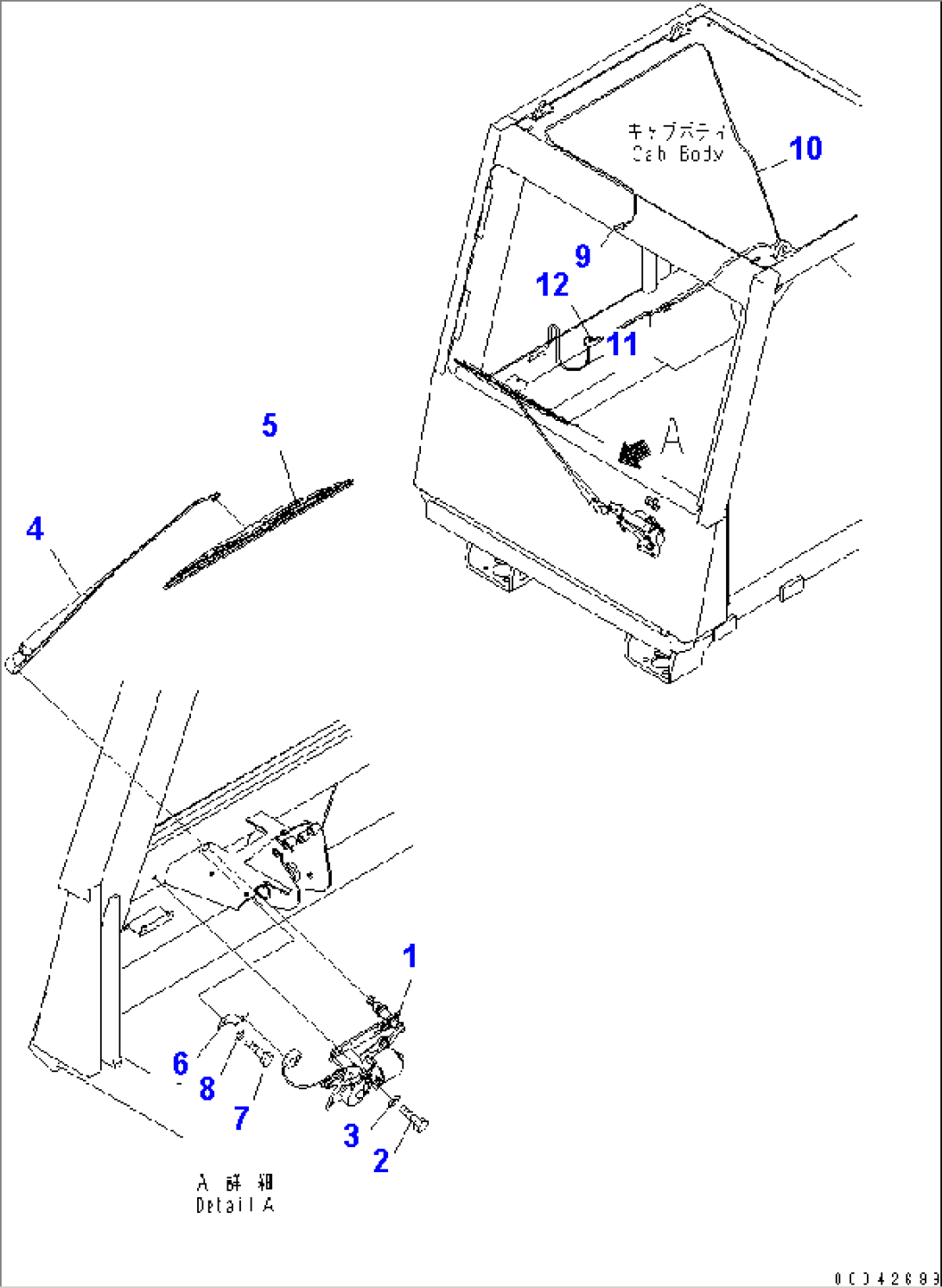

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-13220 | WIPER MOTOR ASS'Y | A10001- | |
| 2 | 01010-80616 | BOLT | A10001- | |
| 3 | 01643-30623 | WASHER | A10001- | |
| 4 | 569-54-83230 | ARM ASS'Y | A10001- | |
| 5 | 569-54-83240 | BLADE | A10001- | |
| 6 | 08053-01510 | CLIP | A10001- | |
| 7 | 01010-81016 | BOLT | A10001- | |
| 8 | 01643-31032 | WASHER | A10001- | |
| 9 | 22T-55-11630 | NOZZLE ASS'Y | A10001- | |
| 10 | 561-54-83291 | HOSE | A10001- | |
| 11 | 09415-01008 | CAP | A10001- | |
| 12 | 20Y-54-18980 | GROMMET | A10001- |
