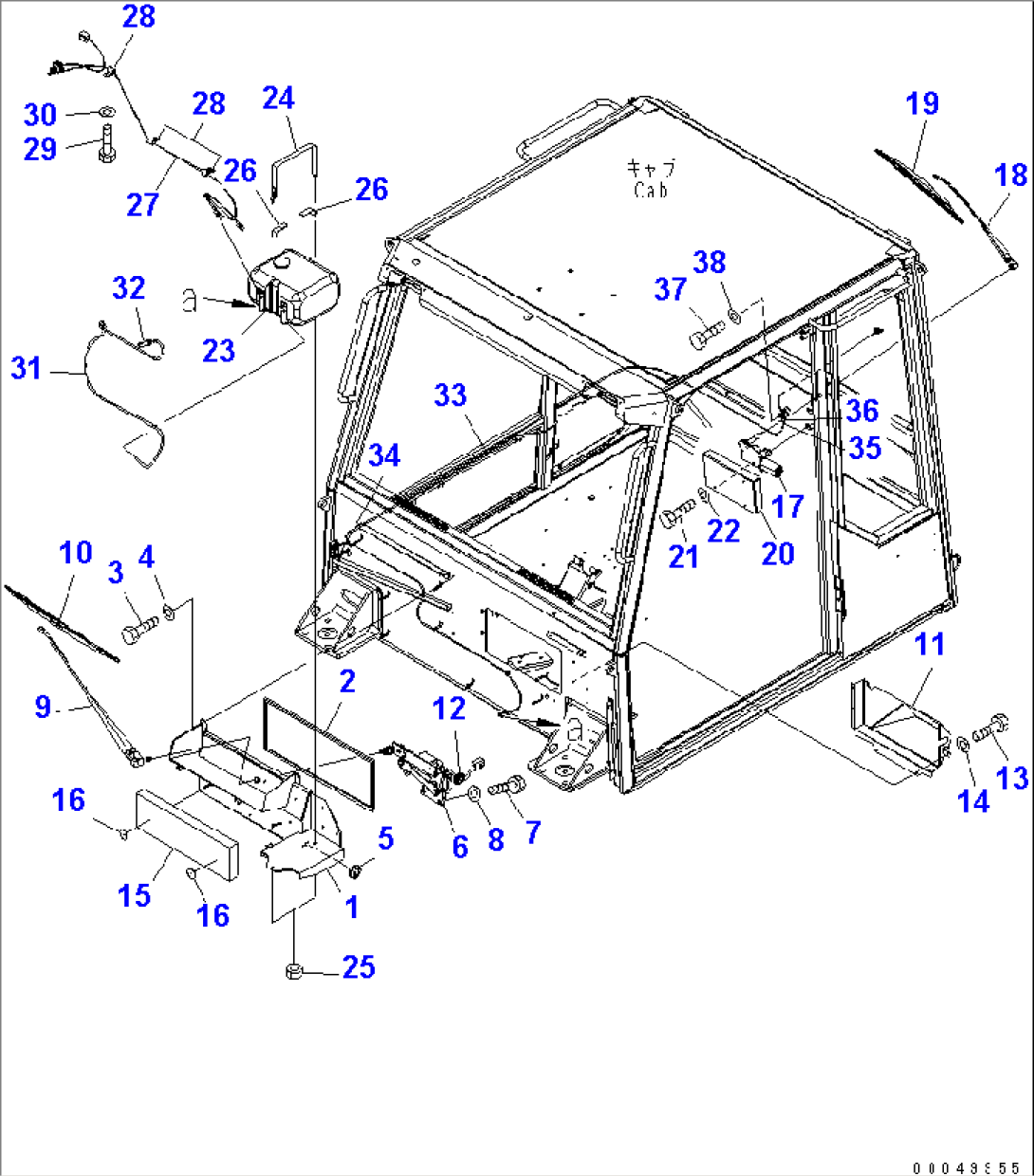

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-54-24912 | COVER | 7001-7019 | |
| 2 | 56D-54-24920 | SEAL | 7001-7019 | |
| 3 | 01010-80620 | BOLT | 7001-7019 | |
| 4 | 01643-30623 | WASHER | 7001-7019 | |
| 5 | 08037-01008 | GROMMET | 7001-@ | |
| 6 | 56B-54-13220 | WIPER MOTOR ASS'Y | 7001-@ | |
| 7 | 01010-80616 | BOLT | 7001-@ | |
| 8 | 01643-30623 | WASHER | 7001-@ | |
| 9 | 56B-54-13230 | ARM,FRONT | 7001-@ | |
| 10 | 56B-54-13240 | BLADE,FRONT | 7001-@ | |
| 11 | 56D-54-23280 | COVER | 7001-7019 | |
| 12 | 207-54-16860 | GROMMET | 7001-@ | |
| 13 | 01010-80612 | BOLT | 7001-@ | |
| 14 | 01643-30623 | WASHER | 7001-@ | |
| 15 | 56D-54-23990 | SHEET | 7001-7019 | |
| 16 | 04431-30000 | PLATE | 7001-@ | |
| 17 | 42C-56-11381 | WIPER MOTOR | 7001-@ | |
| 18 | 56E-54-23360 | ARM,REAR | 7001-@ | |
| 19 | 20T-54-74990 | BLADE,REAR | 7001-@ | |
| 20 | 56E-54-23291 | COVER | 7001-7019 | |
| 21 | 01010-80612 | BOLT | 7001-7019 | |
| 22 | 01643-30623 | WASHER | 7001-7019 | |
| 23 | 56B-54-13281 | TANK | 7001-@ | |
| 24 | 56B-54-13961 | BAND | 7001-@ | |
| 25 | 01584-00605 | NUT | 7001-@ | |
| 26 | 426-54-42430 | RUBBER | 7016-@ | |
| 26 | 56B-54-13990 | SEAL | 7001-7015 | |
| 27 | 56D-54-23420 | WIRING HARNESS | 7001-@ | |
| 28 | 04434-50610 | CLIP | 7001-@ | |
| 29 | 01010-81016 | BOLT | 7001-@ | |
| 30 | 01643-31032 | WASHER | 7001-@ | |
| 31 | 56D-54-23310 | HOSE | 7001-@ | |
| 32 | 22T-55-11630 | NOZZLE ASS'Y | 7001-@ | |
| 33 | 56D-54-23320 | HOSE | 7001-@ | |
| 34 | 08037-01008 | GROMMET | 7001-@ | |
| 35 | 56E-54-23352 | VALVE | 7001-@ | |
| 36 | 04434-50810 | CLIP | 7001-@ | |
| 37 | 01010-81016 | BOLT | 7001-@ | |
| 38 | 01643-31032 | WASHER | 7001-@ |
