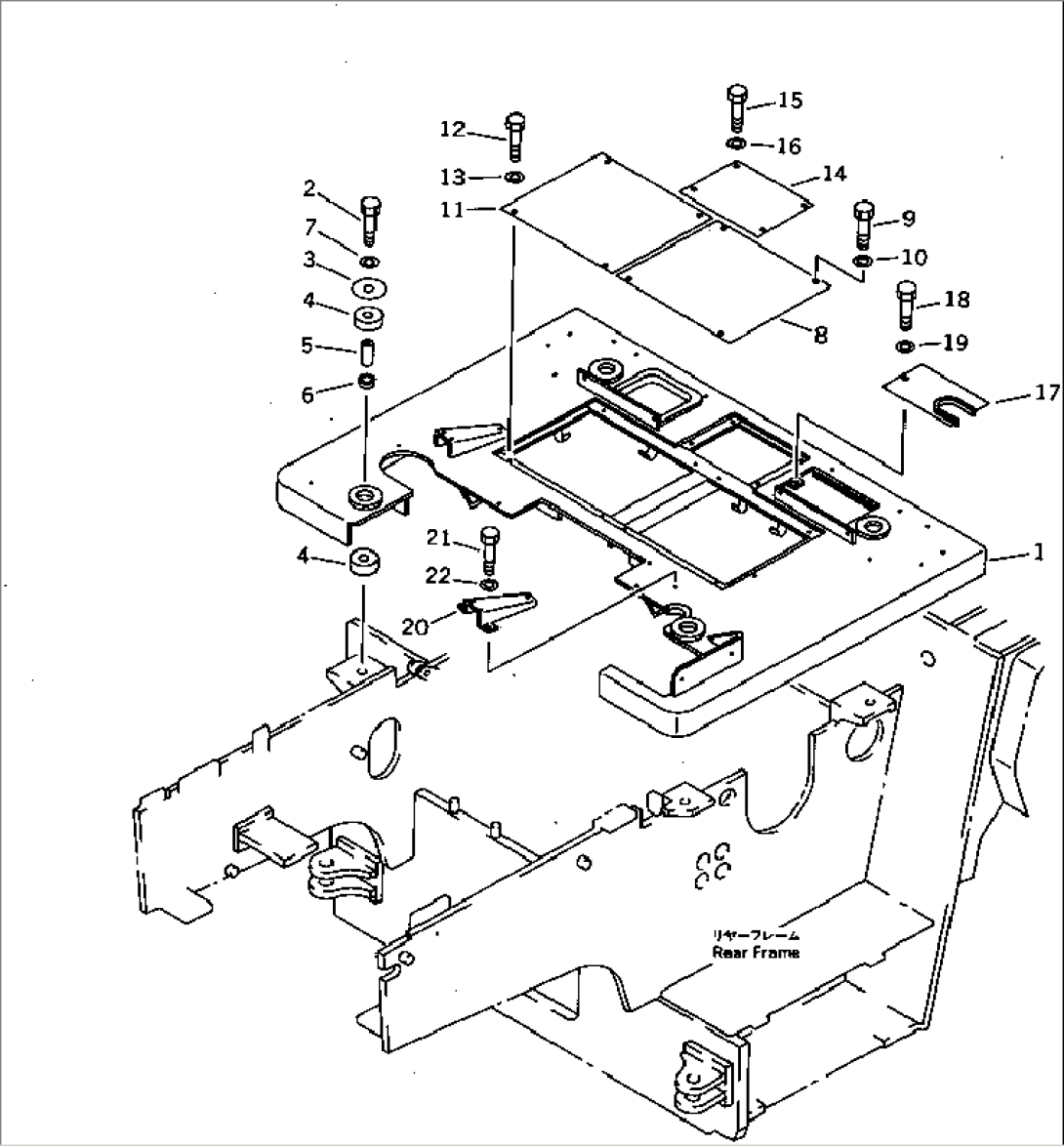

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 278-54-11110 | FRAME,FLOOR | 10001-@ | |
| 2 | 01010-51690 | BOLT | 10001-@ | |
| 3 | 234-54-11480 | PLATE | 10001-@ | |
| 4 | 273-54-11610 | CUSHION | 10001-@ | |
| 5 | 234-54-11470 | COLLAR | 10001-@ | |
| 6 | 07000-13025 | O-RING | 10001-@ | |
| 7 | 01643-31645 | WASHER | 10001-@ | |
| 8 | 278-54-11160 | PLATE | 10001-10002 | |
| 9 | 01010-51025 | BOLT | 10001-@ | |
| 10 | 01643-31032 | WASHER | 10001-@ | |
| 11 | 278-54-11170 | PLATE | 10001-@ | |
| 12 | 01010-51025 | BOLT | 10001-@ | |
| 13 | 01643-31032 | WASHER | 10001-@ | |
| 14 | 278-54-11180 | PLATE | 10001-@ | |
| 15 | 01010-51025 | BOLT | 10001-@ | |
| 16 | 01643-31032 | WASHER | 10001-@ | |
| 17 | 278-54-11430 | COVER | 10001-@ | |
| 18 | 01010-50610 | BOLT | 10001-@ | |
| 19 | 01643-30623 | WASHER | 10001-@ | |
| 20 | 278-54-11450 | BRACKET | 10001-10002 | |
| 21 | 01010-51025 | BOLT | 10001-@ | |
| 22 | 01643-31032 | WASHER | 10001-@ |
