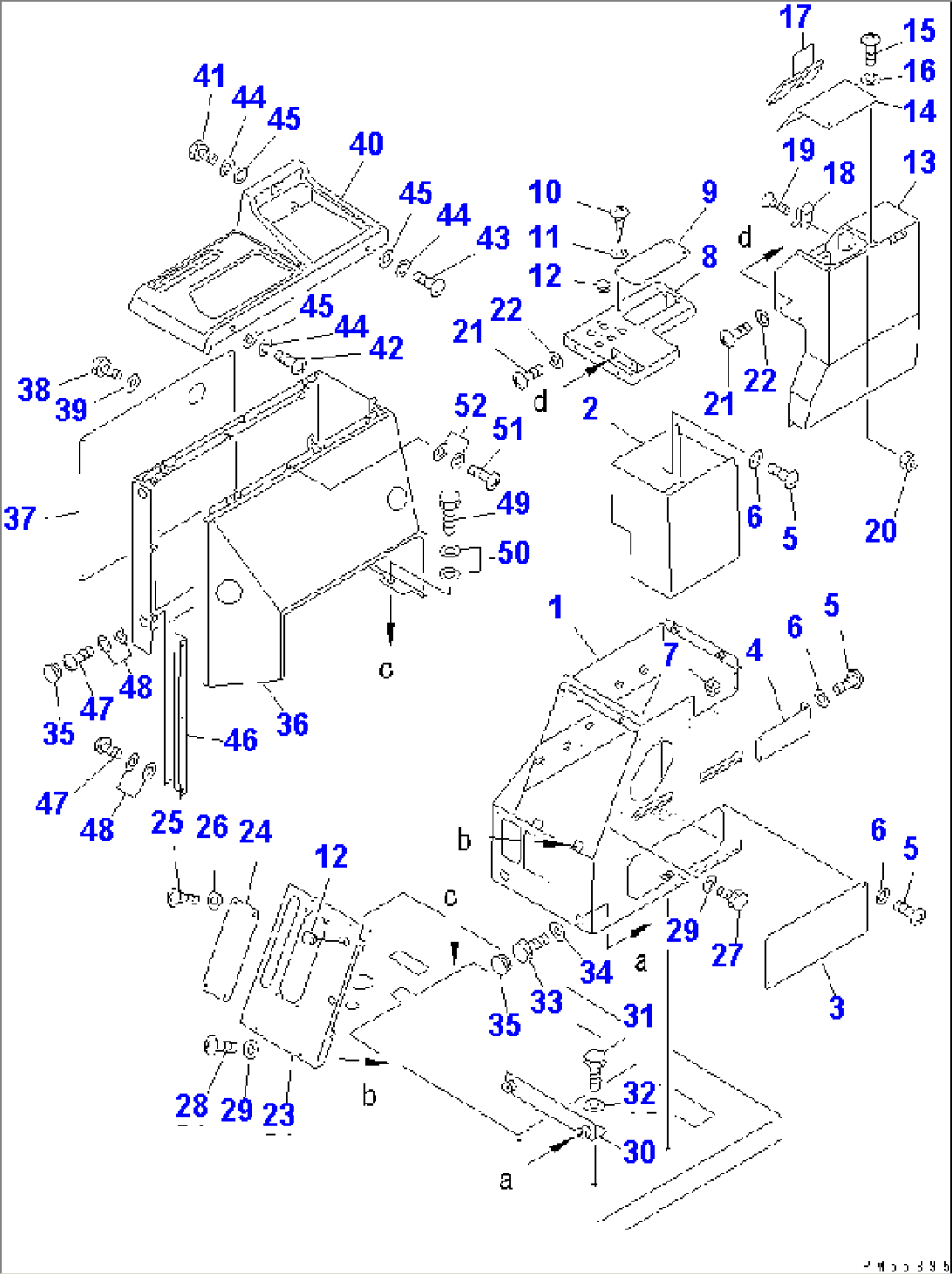

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-54-12310 | BOX | 1001-@ | |
| 2 | 23B-54-12370 | BOX | 1001-@ | |
| 3 | 23B-54-12390 | PLATE | 1001-@ | |
| 4 | 23B-54-12410 | PLATE | 1001-@ | |
| 5 | 01220-40612 | SCREW | 1001-1999 | |
| 6 | 01643-30623 | WASHER | 1001-1999 | |
| 7 | 01580-10605 | NUT | 1001-1999 | |
| 8 | 23B-950-2950 | COVER | 1001-1999 | |
| 9 | 23B-950-2980 | PLATE | 1001-1999 | |
| 10 | 01370-00512 | SCREW | 1001-1999 | |
| 11 | 01601-20513 | WASHER,SPRING | 1001-1999 | |
| 12 | 09415-00706 | CAP | 1001-1999 | |
| 13 | 23B-950-2940 | BOX | 1001-1999 | |
| 14 | 23B-950-2960 | PLATE | 1001-. | |
| 15 | 01220-40412 | SCREW | 1001-. | |
| 16 | 01601-20410 | WASHER,SPRING | 1001-. | |
| 17 | 142-979-3221 | GRILLE ASS'Y | 1001-1999 | |
| 18 | 23B-950-2970 | HINGE | 1001-1999 | |
| 19 | 01224-40306 | SCREW | 1001-1999 | |
| 20 | 01580-10302 | NUT | 1001-1999 | |
| 21 | 01220-40612 | SCREW | 1001-1999 | |
| 22 | 01643-30623 | WASHER | 1001-1999 | |
| 23 | 23B-54-12320 | COVER | 1001-@ | |
| 24 | 23B-54-12350 | PLATE | 1001-@ | |
| 25 | 01220-40812 | SCREW | 1001-@ | |
| 26 | 01643-30823 | WASHER | 1001-@ | |
| 27 | 01010-50612 | BOLT | 1001-@ | |
| 28 | 01220-40612 | SCREW | 1001-@ | |
| 29 | 01643-30623 | WASHER | 1001-@ | |
| 30 | 23B-54-12360 | BRACKET | 1001-@ | |
| 31 | 01010-51220 | BOLT | 1001-@ | |
| 32 | 01643-31232 | WASHER | 1001-@ | |
| 33 | 01010-51020 | BOLT | 1001-@ | |
| 34 | 01643-31032 | WASHER | 1001-@ | |
| 35 | 09415-02512 | CAP | 1001-@ | |
| 36 | 23B-54-12211 | BOX | 1226-1999 | |
| 23B-54-12210 | BOX | 1001-1225 | ||
| 37 | 23B-54-12240 | COVER | 1001-@ | |
| 38 | 01010-50625 | BOLT | 1001-@ | |
| 39 | 01643-30623 | WASHER | 1001-@ | |
| 40 | 23B-54-12221 | COVER,CONSOLE | 1220-@ | |
| 23B-54-12220 | COVER,CONSOLE | 1001-1219 | ||
| 41 | 01010-50630 | BOLT | 1143-@ | |
| 01010-50625 | BOLT | 1001-1142 | ||
| 42 | 01220-40620 | SCREW | 1143-@ | |
| 01220-40616 | SCREW | 1001-1142 | ||
| 43 | 01220-40630 | SCREW | 1001-@ | |
| 44 | 23D-54-21310 | SEAT | 1356-@ | |
| 01602-20619 | WASHER,SPRING | 1001-1355 | ||
| 45 | 01642-20608 | WASHER | 1356-@ | |
| 01643-30623 | WASHER | 1001-1355 | ||
| 46 | 23B-54-12230 | PLATE | 1001-@ | |
| 47 | 01220-40620 | SCREW | 1001-@ | |
| 48 | 01643-30623 | WASHER | 1001-1999 | |
| 49 | 01010-51225 | BOLT | 1001-@ | |
| 50 | 01643-31232 | WASHER | 1001-1999 | |
| 51 | 01220-40620 | SCREW | 1001-@ | |
| 52 | 01643-30623 | WASHER | 1001-1999 |
