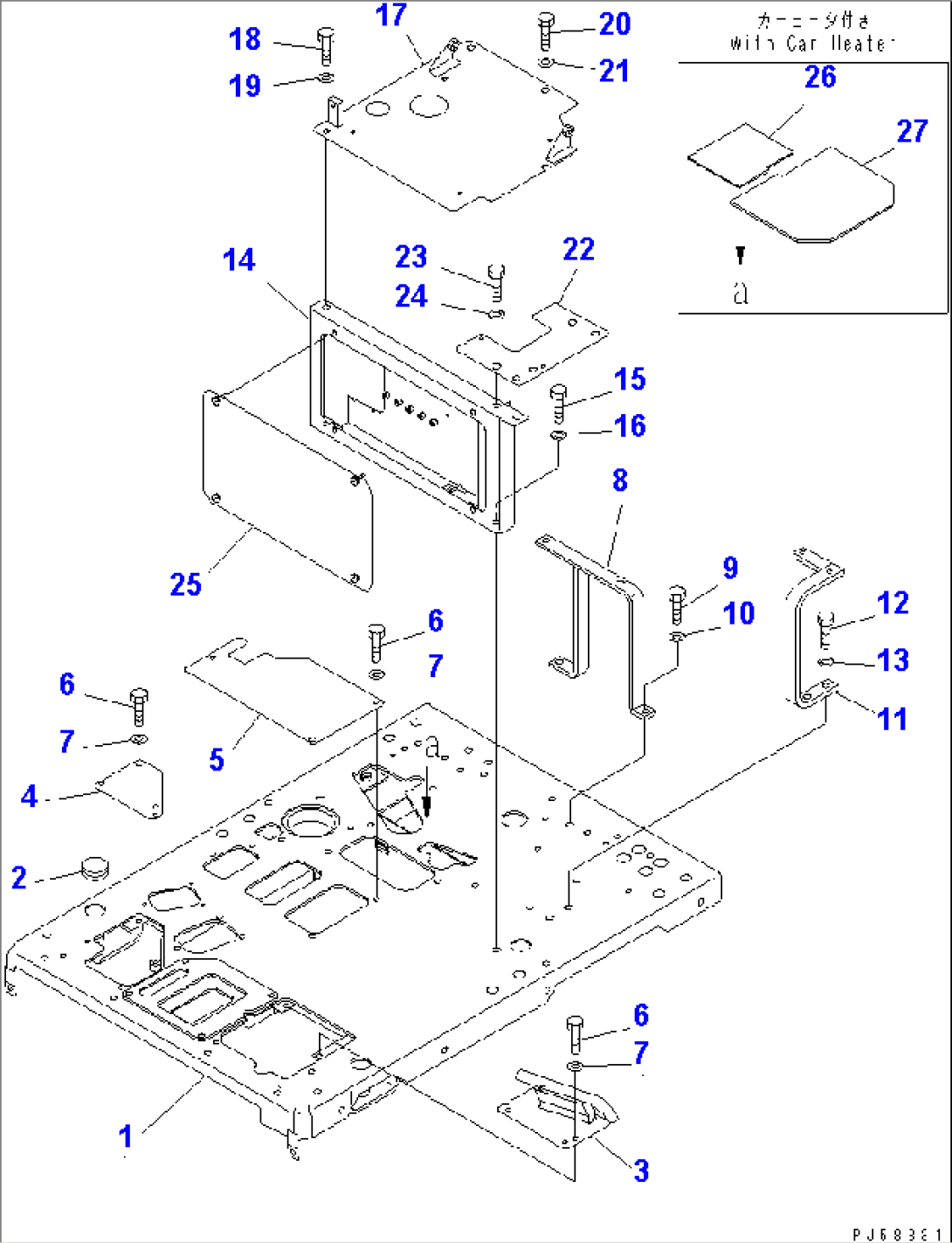

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-54-31113 | FRAME,FLOOR | 7042- | |
| 1 | 23D-54-31112 | FRAME,FLOOR | 7001-7041 | |
| 2 | 09415-03614 | CAP | 7001- | |
| 3 | 23D-54-31521 | BRACKET | 7001- | |
| 4 | 23D-54-31541 | PLATE | 7001- | |
| 5 | 23D-54-31121 | COVER | 7001- | |
| 6 | 01010-81025 | BOLT | 7001- | |
| 7 | 01643-31032 | WASHER | 7001- | |
| 8 | 23D-54-31371 | BRACKET | 7001- | |
| 9 | 01010-81230 | BOLT | 7001- | |
| 10 | 01643-31232 | WASHER | 7001- | |
| 11 | 23D-54-31381 | BRACKET | 7001- | |
| 12 | 01010-81235 | BOLT | 7001- | |
| 13 | 01643-31232 | WASHER | 7001- | |
| 14 | 23D-54-31362 | BRACKET | 7001- | |
| 15 | 01010-81225 | BOLT | 7001- | |
| 16 | 01643-31232 | WASHER | 7001- | |
| 17 | 23D-54-31342 | COVER | 7001- | |
| 18 | 01010-81225 | BOLT | 7001- | |
| 19 | 01643-31232 | WASHER | 7001- | |
| 20 | 01010-81020 | BOLT | 7001- | |
| 21 | 01643-31032 | WASHER | 7001- | |
| 22 | 23D-54-31490 | COVER | 7001- | |
| 23 | 01010-81225 | BOLT | 7001- | |
| 24 | 01643-31232 | WASHER | 7001- | |
| 25 | 23D-54-31351 | COVER | 7001- | |
| 235-54-11540 | KNOB | 7001- | ||
| 26 | 23D-807-3320 | PLATE,RUBBER | 7001- | |
| 27 | 23D-807-3330 | PLATE,RUBBER | 7001- |
