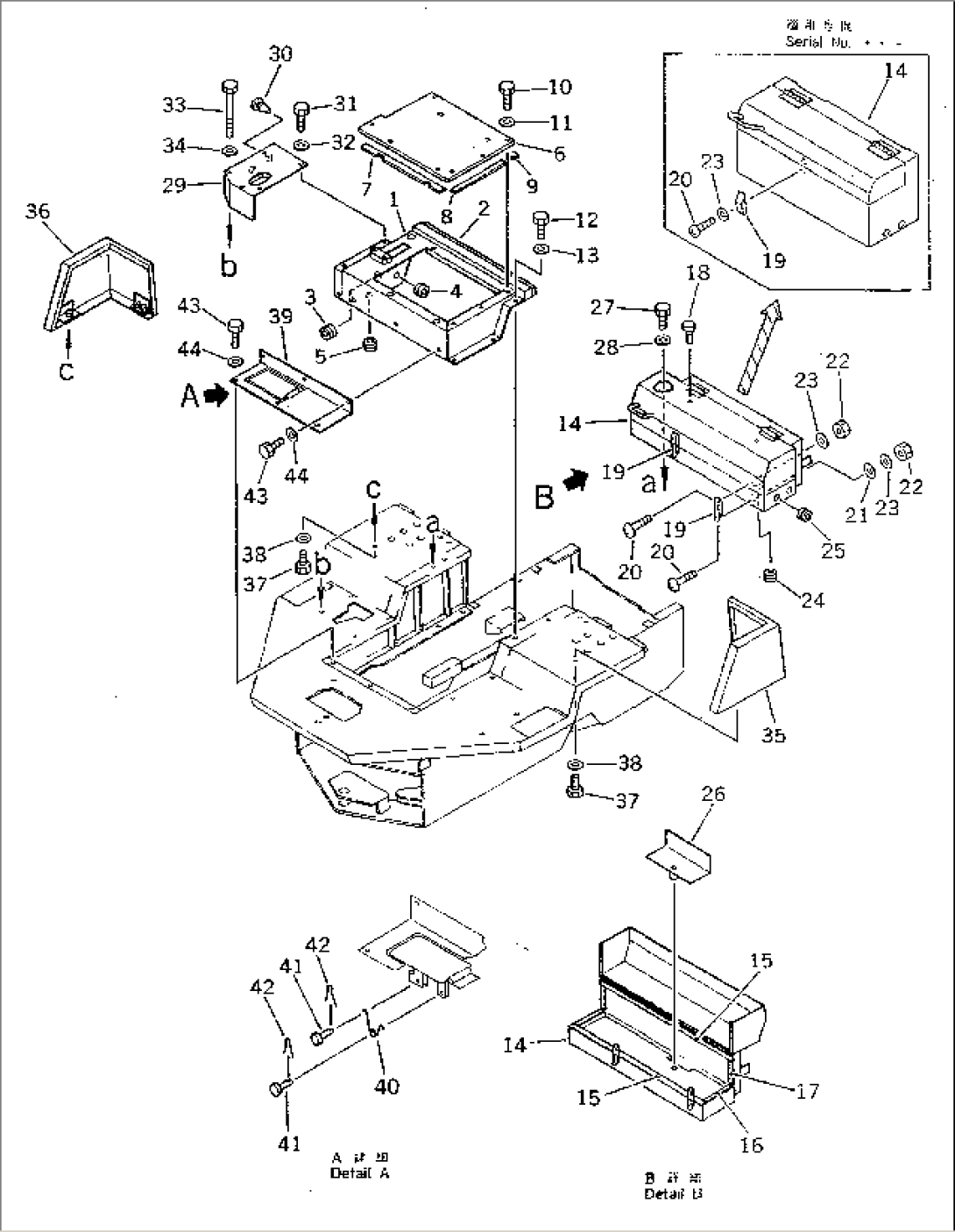

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-54-12123 | FRAME,SEAT | 10001-11999 | |
| 2 | 415-54-12271 | SHEET | 10001-11999 | |
| 3 | 08037-03614 | GROMMET | 10001-11999 | |
| 4 | 415-06-12320 | GROMMET | 10001-11999 | |
| 5 | 415-22-16210 | GROMMET | 10001-11999 | |
| 6 | 415-54-12172 | PLATE | 10001-11999 | |
| 7 | 415-54-13230 | SHEET | 10001-11999 | |
| 8 | 415-54-12220 | SHEET | 10001-11999 | |
| 9 | 415-54-12210 | SHEET | 10001-11999 | |
| 10 | 01010-51225 | BOLT | 10001-11999 | |
| 11 | 01643-31232 | WASHER | 10001-11999 | |
| 12 | 01010-51225 | BOLT | 10001-11999 | |
| 13 | 01643-31232 | WASHER | 10001-11999 | |
| 14 | 415-54-12136 | BOX | ..-11999 | |
| 14 | 415-54-13212 | BOX | .-.. | |
| 14 | 415-54-13211 | BOX | 10001-. | |
| 15 | 415-54-12251 | SHEET | 10001-. | |
| 16 | 415-54-12240 | SHEET | 10001-. | |
| 17 | 415-54-12231 | SHEET | 10001-. | |
| 18 | 415-54-12680 | CUSHION | 10001-11999 | |
| 19 | 421-09-12321 | HOLDER | ..-11999 | |
| 19 | 424-09-12490 | HOLDER | .-.. | |
| 19 | 362-54-14880 | HOLDER | 10001-. | |
| 20 | 01220-40510 | SCREW | ..-11999 | |
| 20 | 01220-40410 | SCREW | .-.. | |
| 20 | 01220-40408 | SCREW | 10001-. | |
| 21 | 01641-20508 | WASHER | .-.. | |
| 21 | 01641-20508 | WASHER | 10001-. | |
| 22 | 01580-10403 | NUT | 10001-. | |
| 23 | 01641-20508 | WASHER | ..-11999 | |
| 23 | 01641-20405 | WASHER | .-.. | |
| 23 | 01641-20405 | WASHER | 10001-. | |
| 24 | 09415-03614 | CAP | 10001-11999 | |
| 25 | 09415-02512 | CAP | 10001-11999 | |
| 26 | 415-54-12191 | PLATE | 10001-.. | |
| 27 | 01010-51225 | BOLT | 10001-11999 | |
| 28 | 01643-31232 | WASHER | 10001-11999 | |
| 29 | 415-54-12512 | COVER | 10001-11999 | |
| 30 | 415-54-12680 | CUSHION | 10001-11999 | |
| 31 | 01010-50816 | BOLT | 10001-11999 | |
| 32 | 01641-20812 | WASHER | 10001-11999 | |
| 33 | 562-15-17280 | BOLT | 10001-11999 | |
| 34 | 01641-20812 | WASHER | 10001-11999 | |
| 35 | 415-54-12452 | GUARD,L.H. | 10001-11999 | |
| 36 | 415-54-12462 | GUARD,R.H. | 10001-11999 | |
| 37 | 01010-51230 | BOLT | 10001-11999 | |
| 38 | 01643-31232 | WASHER | 10001-11999 | |
| 39 | 415-54-12183 | FLOOR | 10001-11999 | |
| 40 | 09463-00002 | SPRING | 10001-11999 | |
| 41 | 04205-10618 | PIN | 10001-11999 | |
| 42 | 04050-01610 | PIN,COTTER | 10001-11999 | |
| 43 | 01010-51225 | BOLT | 10001-11999 | |
| 44 | 01643-31232 | WASHER | 10001-11999 |
