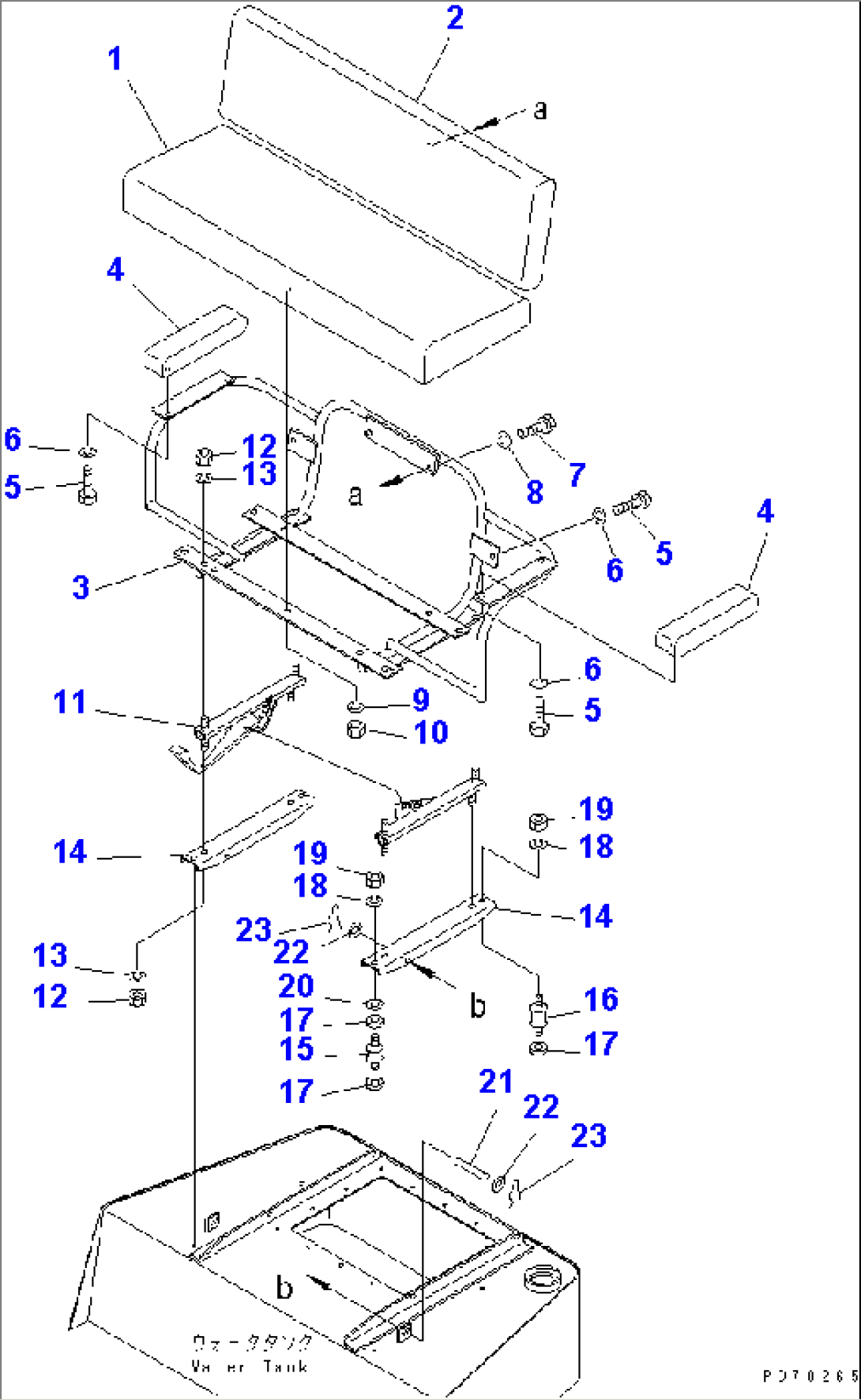

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 259-56-25410 | SEAT,BOTTOM | 7001- | |
| 2 | 259-56-25510 | SEAT,BACK | 7001- | |
| 3 | 259-56-25200 | BASE | 7001- | |
| 4 | 258-60-25610 | CUSHION | 7001- | |
| 5 | 01010-50820 | BOLT | 7001- | |
| 6 | 01602-20825 | WASHER,SPRING | 7001- | |
| 7 | 01010-50825 | BOLT | 7001- | |
| 8 | 01602-20825 | WASHER,SPRING | 7001- | |
| 9 | 01602-21030 | WASHER,SPRING | 7001- | |
| 10 | 01580-11008 | NUT | 7001- | |
| 11 | 258-60-25300 | ADJUSTER | 7001- | |
| 12 | 01580-10806 | NUT | 7001- | |
| 13 | 01602-20825 | WASHER,SPRING | 7001- | |
| 14 | 2691-6-45720 | BRACKET | 7001- | |
| 15 | 258-80-12510 | RUBBER | 7001- | |
| 16 | 257-20-14310 | CUSHION | 7001- | |
| 17 | 268-60-12140 | WASHER | 7001- | |
| 18 | 01602-20825 | WASHER,SPRING | 7001- | |
| 19 | 01580-10806 | NUT | 7001- | |
| 20 | 01643-30823 | WASHER | 7001- | |
| 21 | 2691-6-45730 | PIN | 7001- | |
| 22 | 01640-21023 | WASHER | 7001- | |
| 23 | 265-35-61000 | PIN | 7001- |
