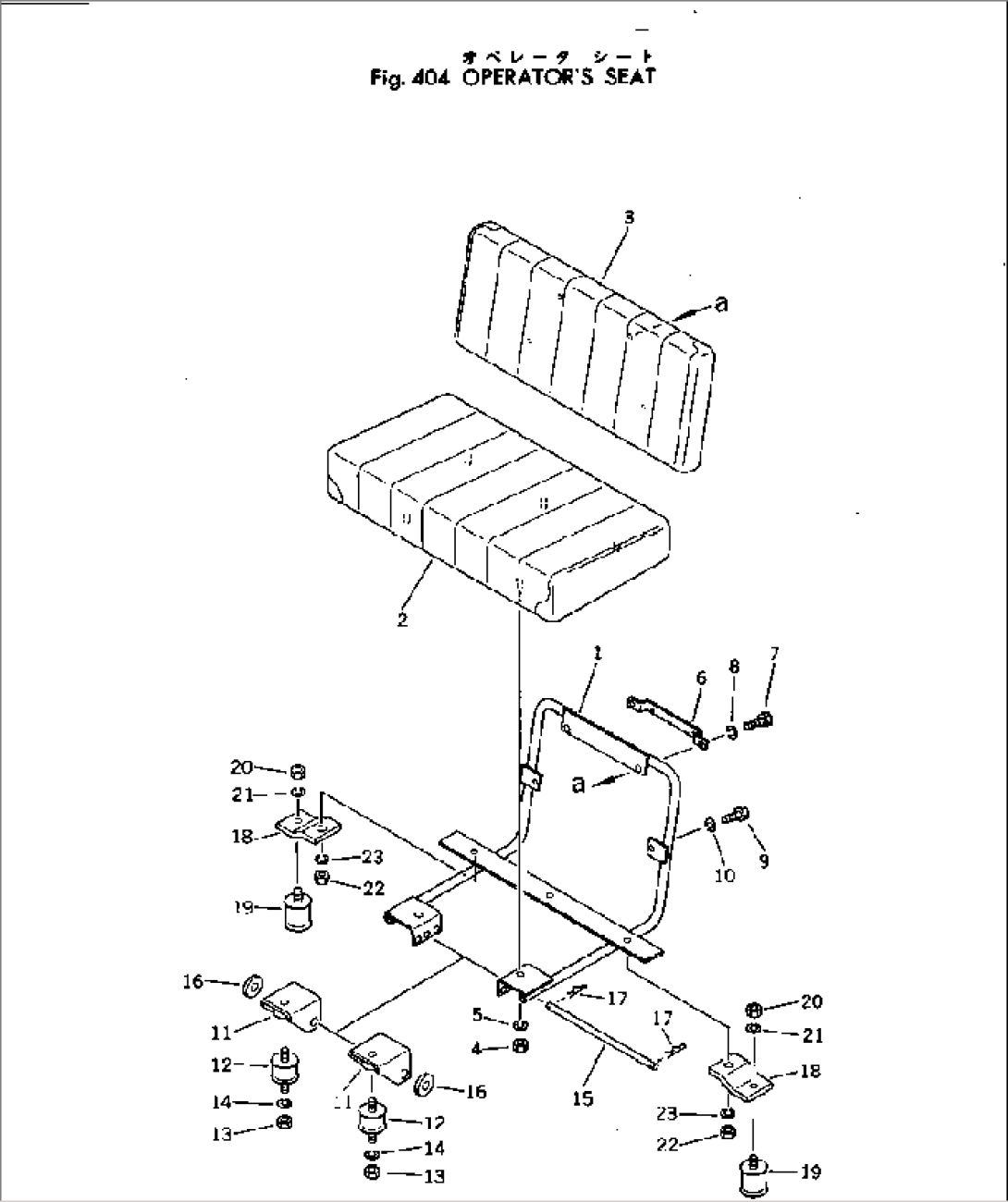

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 257-60-15201 | BASE | 1001- | |
| 2 | 257-60-15410 | SEAT | 1001- | |
| 3 | 257-60-15510 | SEAT | 1001- | |
| 4 | 01580-01008 | NUT | 1001- | |
| 5 | 01602-01030 | WASHER | 1001- | |
| 6 | 258-60-15110 | BRACKET | 1001- | |
| 7 | 01010-30825 | BOLT | 1001- | |
| 8 | 01602-00825 | WASHER | 1001- | |
| 9 | 01010-30820 | BOLT | 1001- | |
| 10 | 01602-00825 | WASHER | 1001- | |
| 11 | 259-60-16100 | BRACKET | 1001- | |
| 12 | 259-60-16210 | CUSHION | 1001- | |
| 13 | 01580-00806 | NUT | 1001- | |
| 14 | 01602-00825 | WASHER | 1001- | |
| 15 | 257-10-16910 | PIN | 1001- | |
| 16 | 259-60-16230 | SEAL | 1001- | |
| 17 | 266-60-44321 | PIN | 1001- | |
| 18 | 259-60-16240 | BRACKET | 1001- | |
| 19 | 259-60-16220 | CUSHION | 1001- | |
| 20 | 01580-00806 | NUT | 1001- | |
| 21 | 01602-00825 | WASHER | 1001- | |
| 22 | 01580-01008 | NUT | 1001- | |
| 23 | 01602-01030 | WASHER | 1001- |
