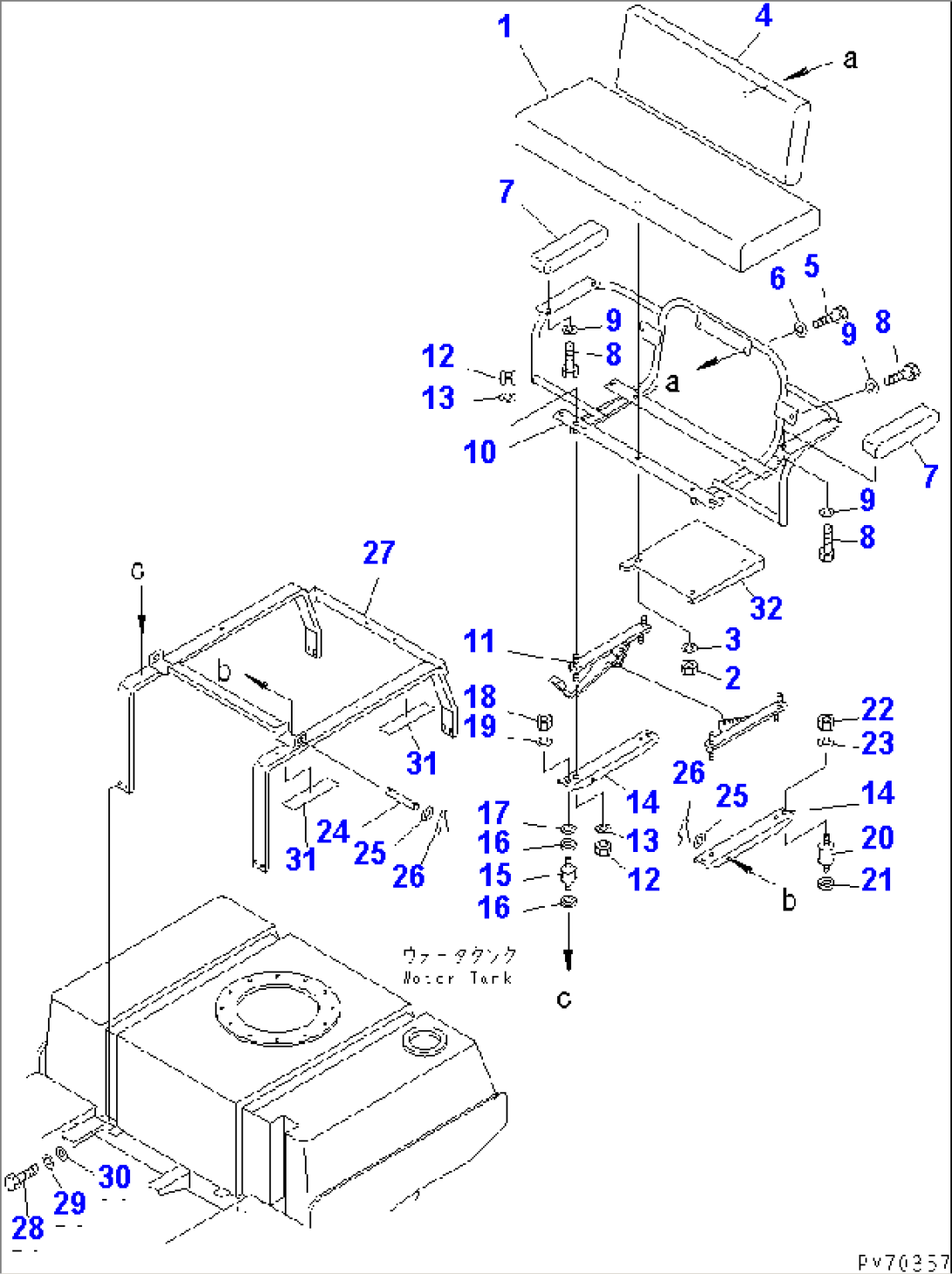

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-60-65410 | SEAT,BOTTOM | .- | |
| 1 | \0\258-60-25410 | SEAT,BOTTOM | 5001-. | |
| 2 | 01010-80820 | BOLT | .- | |
| 2 | 01580-31008 | NUT | 5001-. | |
| 3 | 01602-20825 | WASHER,SPRING | .- | |
| 3 | 01602-21030 | WASHER,SPRING | 5001-. | |
| 4 | 259-56-25510 | SEAT,BACK | 5001- | |
| 5 | 01010-80825 | BOLT | 5001- | |
| 6 | 01602-20825 | WASHER,SPRING | 5001- | |
| 7 | 258-60-25610 | CUSHION | 5001- | |
| 8 | 01010-80820 | BOLT | 5001- | |
| 9 | 01602-20825 | WASHER,SPRING | 5001- | |
| 10 | 258-60-25200 | BASE | 5001- | |
| 11 | 258-60-25300 | ADJUSTER | 5001- | |
| 12 | 01580-30806 | NUT | 5001- | |
| 13 | 01602-20825 | WASHER,SPRING | 5001- | |
| 14 | 2691-6-45720 | BRACKET | 5001- | |
| 15 | 258-80-12510 | RUBBER | 5001- | |
| 16 | 268-60-12140 | WASHER | 5001- | |
| 17 | 01643-30823 | WASHER | 5001- | |
| 18 | 01580-20806 | NUT | 5001- | |
| 19 | 01602-20825 | WASHER,SPRING | 5001- | |
| 20 | 257-20-14310 | CUSHION | 5001- | |
| 21 | 268-60-12140 | WASHER | 5001- | |
| 22 | 01580-10806 | NUT | 5001- | |
| 23 | 01602-20825 | WASHER,SPRING | 5001- | |
| 24 | 2691-6-45730 | PIN | 5001- | |
| 25 | 01640-21016 | WASHER | 5001- | |
| 26 | 265-35-61000 | PIN | 5001- | |
| 27 | 258-56-35900 | BRACKET | 5001- | |
| 28 | 01010-81035 | BOLT | 5001- | |
| 29 | 01602-21030 | WASHER,SPRING | 5001- | |
| 30 | 01643-31032 | WASHER | 5001- | |
| 31 | 258-80-35730 | SEAT | 5001- | |
| 32 | 258-60-36101 | BOX | 5101- |
