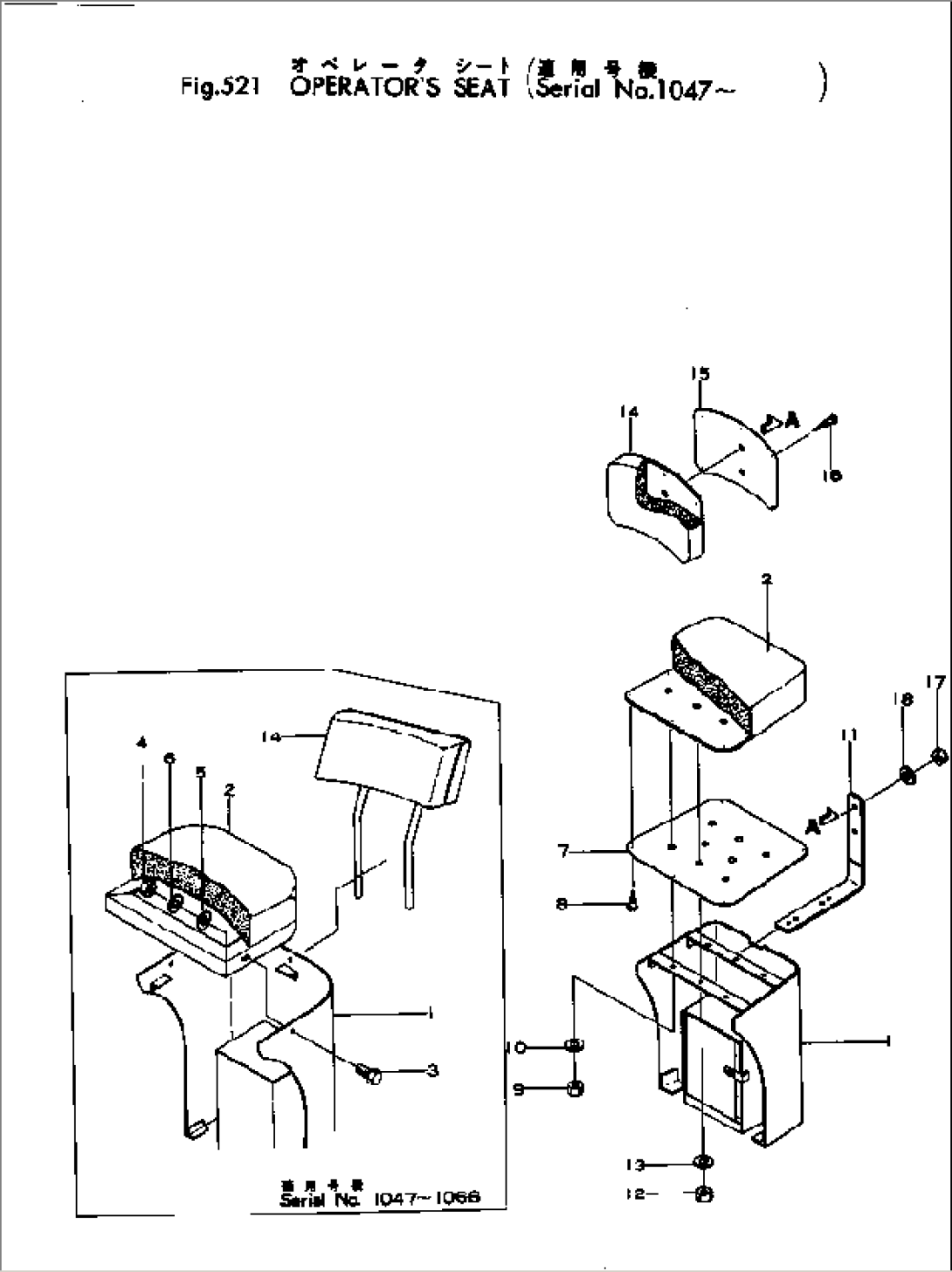

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 267-10-16301 | BASE | 1067- | |
| 267-10-16300 | BASE | 1047-1066 | ||
| 2 | 266-60-14100 | SEAT | 1067- | |
| 267-10-16700 | SEAT | 1047-1066 | ||
| 3 | 01000-00820 | BOLT | 1047-1066 | |
| 4 | 01500-00807 | NUT | 1047-1066 | |
| 5 | 01642-00810 | WASHER | 1047-1066 | |
| 6 | 01601-00820 | WASHER | 1047-1066 | |
| 7 | 266-60-14320 | PLATE | 1067- | |
| 8 | 266-19-45020 | SCREW | 1067- | |
| 9 | 01500-01008 | NUT | 1067- | |
| 10 | 01601-01025 | WASHER | 1067- | |
| 11 | 266-60-14330 | SUPPORT | 1067- | |
| 12 | 01500-01008 | NUT | 1067- | |
| 13 | 01601-01025 | WASHER | 1067- | |
| 14 | 266-60-14200 | SEAT | 1067- | |
| 267-10-16900 | SEAT | 1047-1066 | ||
| 15 | 266-60-14340 | PLATE | 1067- | |
| 16 | 266-19-45020 | SCREW | 1067- | |
| 17 | 01500-01008 | NUT | 1067- | |
| 18 | 01601-01025 | WASHER | 1067- |
