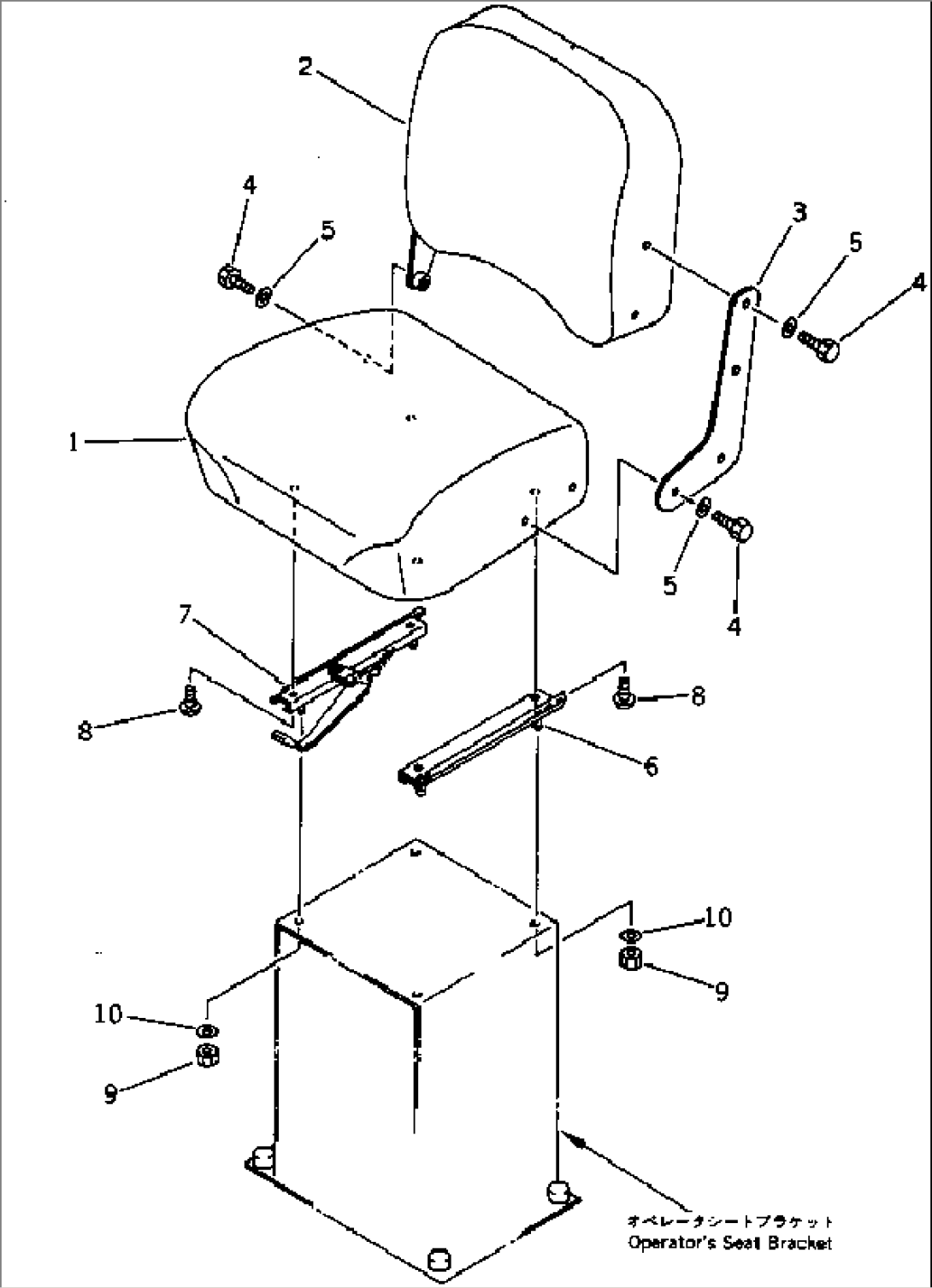

| Item | Part No. | Part Name | Qty | Serial No. |
| 262-57-51110 | OPERATOR'S SEAT A. | 11009- | ||
| 1 | 23A-57-11110 | SEAT,CUSHION | 11009- | |
| 2 | 120-57-31221 | SEAT,BACK | 11009- | |
| 3 | 120-57-31461 | PLATE | 11009- | |
| 4 | 01010-51025 | BOLT | 11009- | |
| 5 | 01643-31032 | WASHER | 11009- | |
| 6 | 236-54-22331 | ADJUSTER ASS'Y,L.H. | 11009- | |
| 7 | 236-54-22351 | ADJUSTER ASS'Y,R.H. | 11009- | |
| 8 | 01220-40816 | SCREW | 11009- | |
| 9 | 01580-10806 | NUT | 11009- | |
| 10 | 01643-30823 | WASHER | 11009- |
