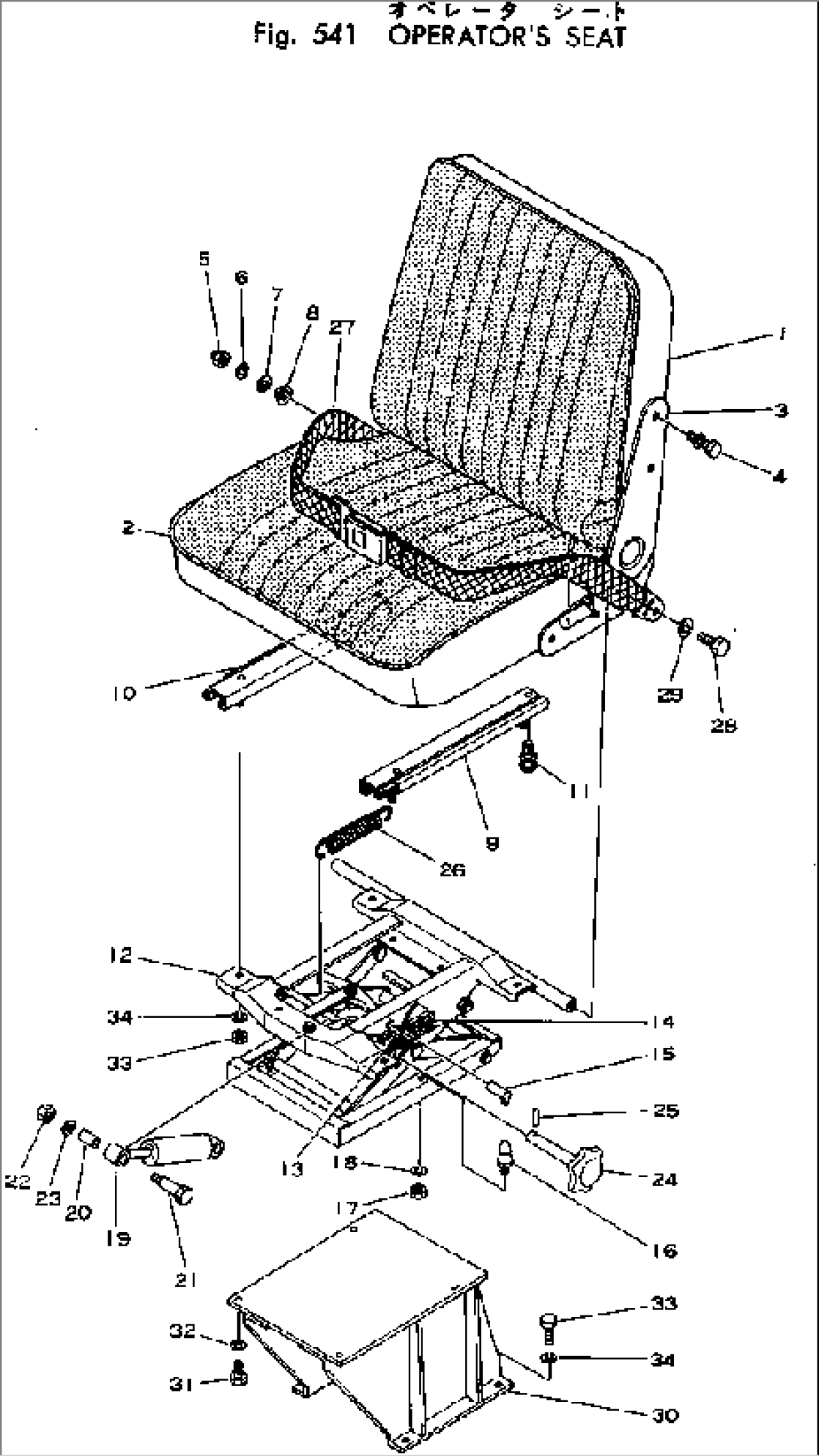

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-57-11100 | SEAT ASS'Y | 1002- | ||
| 1 | 569-57-11020 | SEAT ASS'Y | 1002- | |
| 2 | 569-57-11200 | CUSHION ASS'Y | 1002- | |
| 3 | 569-57-11110 | RECLINING | 1002- | |
| 4 | 569-57-11120 | BOLT | 1002- | |
| 5 | 569-57-11130 | NUT | 1002- | |
| 6 | 01602-20825 | WASHER | 1002- | |
| 7 | 01641-20812 | WASHER | 1002- | |
| 8 | 569-57-11140 | BUSHING | 1002- | |
| 9 | 569-57-11150 | RAIL | 1002- | |
| 10 | 569-57-11160 | RAIL | 1002- | |
| 11 | 569-57-11170 | SCREW | 1002- | |
| 569-57-11030 | SUSPENSION ASS'Y | 1002- | ||
| 12 | 569-57-11300 | SUSPENSION ASS'Y | 1002- | |
| 13 | 569-57-11180 | PLATE | 1002- | |
| 14 | 569-57-11190 | PLATE | 1002- | |
| 15 | 569-57-11220 | INDICATOR | 1002- | |
| 16 | 569-57-11230 | STOPPER | 1002- | |
| 17 | 01580-10806 | NUT | 1002- | |
| 18 | 01602-20825 | WASHER | 1002- | |
| 19 | 569-57-11240 | ABSORBER | 1002- | |
| 20 | 569-57-11250 | BUSHING | 1002- | |
| 21 | 569-57-11260 | BOLT | 1002- | |
| 22 | 569-57-11270 | NUT | 1002- | |
| 23 | 01602-20619 | WASHER | 1002- | |
| 24 | 569-57-11280 | HANDLE | 1002- | |
| 25 | 04025-00324 | PIN | 1002- | |
| 26 | 569-57-11290 | SPRING | 1002- | |
| 27 | 569-57-11310 | BELT | 1002- | |
| 28 | 02030-70722 | BOLT | 1002- | |
| 29 | 01602-21134 | WASHER | 1002- | |
| 30 | 566-57-11320 | BRACKET | 1002- | |
| 31 | 01010-50820 | BOLT | 1002- | |
| 32 | 01602-20825 | WASHER | 1002- | |
| 33 | 01010-51025 | BOLT | 1002- | |
| 34 | 01602-21030 | WASHER | 1002- |
