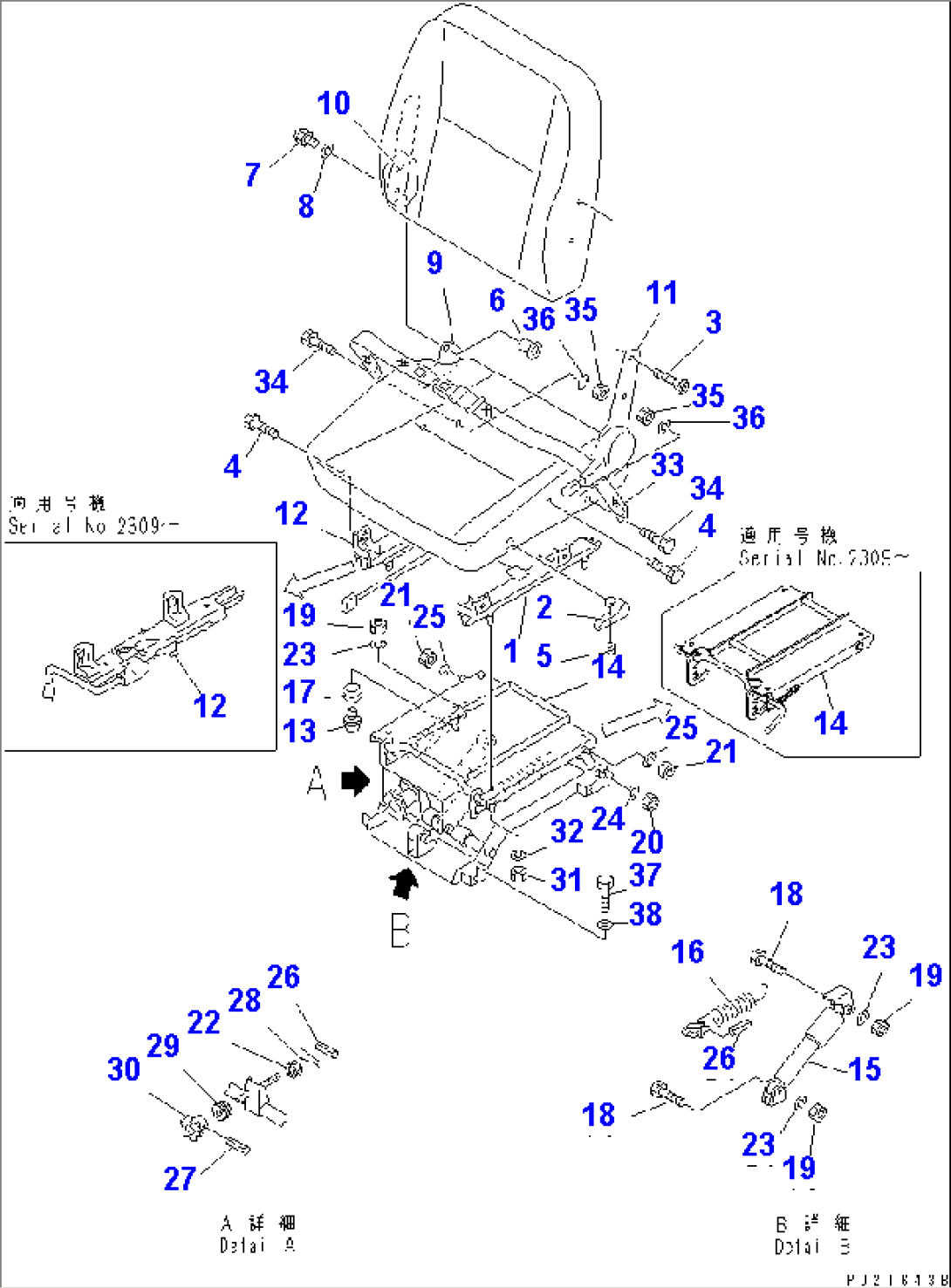

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-57-62302 | SEAT ASS'Y,(DELUXE) | 2309- | ||
| 561-57-62301 | SEAT ASS'Y,(DELUXE) | 2001-2308 | ||
| 561-57-61304 | SEAT ASS'Y | 2309- | ||
| 561-57-61303 | SEAT ASS'Y | 2001-2308 | ||
| 561-57-62401 | CUSHION ASS'Y,(DELUXE) | 2309- | ||
| 561-57-62400 | CUSHION ASS'Y,(DELUXE) | 2001-2308 | ||
| 561-57-61403 | CUSHION ASS'Y | 2309- | ||
| 561-57-61402 | CUSHION ASS'Y | 2001-2308 | ||
| 1 | 423-57-11350 | SLIDE | 2001- | |
| 2 | 423-57-11360 | LEVER | 2001- | |
| 3 | 423-57-11380 | BOLT | 2001- | |
| 4 | 423-57-11390 | BOLT | 2001- | |
| 5 | 423-57-11410 | SCREW | 2001- | |
| 6 | 423-57-11420 | BUSHING | 2001- | |
| 7 | 423-57-11430 | SCREW | 2001- | |
| 8 | 423-57-11440 | WASHER | 2001- | |
| 9 | 423-57-11450 | BRACKET | 2001- | |
| 10 | 423-57-11490 | BRACKET | 2001- | |
| 11 | 561-57-61330 | RECLINING | 2001- | |
| 12 | 423-57-11340 | SLIDE | 2309- | |
| 12 | 561-57-61340 | ADJUSTER,SLIDE | 2001-2308 | |
| 561-57-61503 | SUSPENSION ASS'Y | 2309- | ||
| 561-57-61502 | SUSPENSION ASS'Y | 2001-2308 | ||
| 13 | 561-57-61480 | CUSHION | 2001- | |
| 14 | 423-57-11530 | ADJUSTER | 2309- | |
| 14 | 561-57-61470 | ADJUSTER,TILT | 2001-2308 | |
| 15 | 566-57-15320 | ABSORBER | 2001- | |
| 16 | 561-57-61521 | SPRING | 2001- | |
| 17 | 561-57-61490 | SPRING | 2001- | |
| 18 | 01010-50840 | BOLT | 2001- | |
| 19 | 01580-10806 | NUT | 2001- | |
| 20 | 01580-11008 | NUT | 2001- | |
| 21 | 01580-11210 | NUT | 2001- | |
| 22 | 01592-11215 | NUT | 2001- | |
| 23 | 01602-20825 | WASHER,SPRING | 2001- | |
| 24 | 01602-21030 | WASHER,SPRING | 2001- | |
| 25 | 01602-21236 | WASHER,SPRING | 2001- | |
| 26 | 04025-00316 | PIN,SPRING | 2001- | |
| 27 | 04025-00424 | PIN,SPRING | 2001- | |
| 28 | 04050-13022 | PIN,COTTER | 2001- | |
| 29 | 06000-51101 | BEARING | 2001- | |
| 30 | 423-57-11630 | KNOB | 2001- | |
| 31 | 01580-10806 | NUT | 2001- | |
| 32 | 01602-20825 | WASHER,SPRING | 2001- | |
| 33 | 566-57-15400 | SEAT BELT ASS'Y | 2001- | |
| 34 | 02030-70738 | BOLT | 2001- | |
| 35 | 02205-10711 | NUT | 2001- | |
| 36 | 01602-21134 | WASHER,SPRING | 2001- | |
| 37 | 01010-51225 | BOLT | 2001- | |
| 38 | 01643-31232 | WASHER | 2001- |
