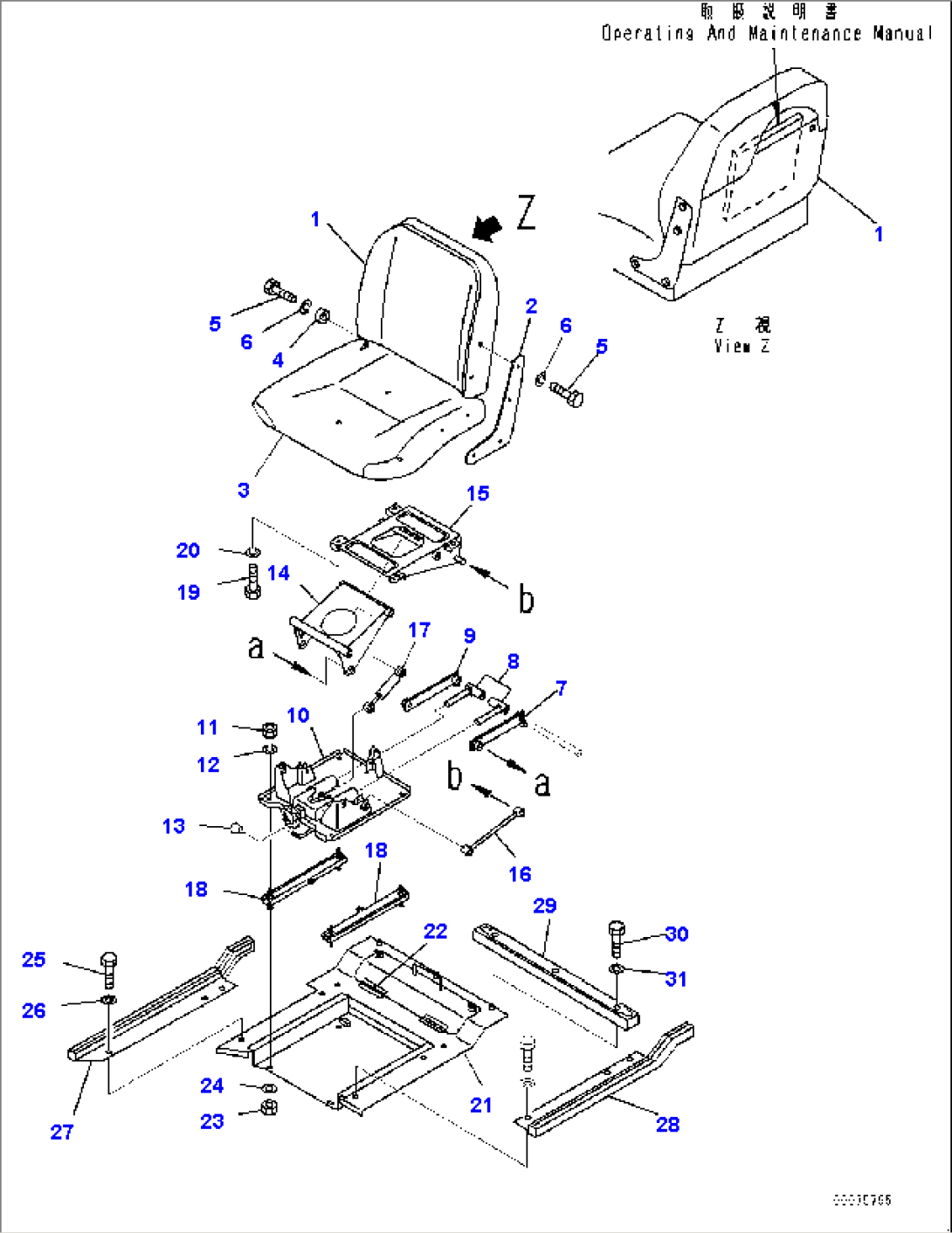

| Item | Part No. | Part Name | Qty | Serial No. |
| 103-57-31402 | Seat Assembly | 90210- | ||
| 120-57-31314 | Cushion Assembly | 90210- | ||
| 1 | 120-57-31252 | Cushion | 90210- | |
| 2 | 120-57-31461 | Plate | 90210- | |
| 3 | 120-57-31322 | Cushion | 90210- | |
| 4 | 120-57-31241 | Spacer | 90210- | |
| 5 | 01010-81020 | Bolt | 90210- | |
| 6 | 01602-21030 | Washer | 90210- | |
| 6 | 103-57-39130 | Suspension Assembly | 90210- | |
| 7 | Link | 90210- | ||
| 8 | Guide | 90210- | ||
| 9 | Link | 90210- | ||
| 10 | Base | 90210- | ||
| 11 | 01580-11210 | Nut | 90210- | |
| 12 | 01602-21236 | Washer, Spring | 90210- | |
| 13 | 09304-00835 | Knob, Black | 90210- | |
| 14 | Bracket | 90210- | ||
| 15 | Bracket | 90210- | ||
| 16 | Link | 90210- | ||
| 17 | 120-57-31411 | Damper, Oil | 90210- | |
| 18 | 155-57-12150 | Adjuster | 90210- | |
| 19 | 01010-81020 | Bolt | 90210- | |
| 20 | 01602-21030 | Washer | 90210- | |
| 21 | 103-57-51210 | Cover | 90210- | |
| 22 | 113-54-24190 | Hinge, Welded | 90210- | |
| 23 | 01580-11210 | Nut | 90210- | |
| 24 | 01643-31232 | Washer | 90210- | |
| 25 | 01010-81030 | Bolt | 90210- | |
| 26 | 01643-31032 | Washer | 90210- | |
| 27 | 104-54-33420 | Cover | 90210- | |
| 28 | 104-54-33430 | Cover | 90210- | |
| 29 | 104-54-33440 | Cover | 90210- | |
| 30 | 01010-80816 | Bolt | 90210- | |
| 31 | 01643-30823 | Washer | 90210- |
