| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (426-57-21211) | SEAT ASS'Y | 52001- | |
| 2 | 426-57-21121 | BRACKET | 52001- | |
| 3 | 01252-70820 | BOLT | .- | |
| 3 | \1\01252-40820 | BOLT | 52001-. | |
| 4 | 01584-00806 | NUT | 52001- | |
| 5 | 01435-01230 | BOLT | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Operator's compartment and control system
- Operator's seat (air suspension type¤ 1/2)(#52001 )
Поиск по каталогу

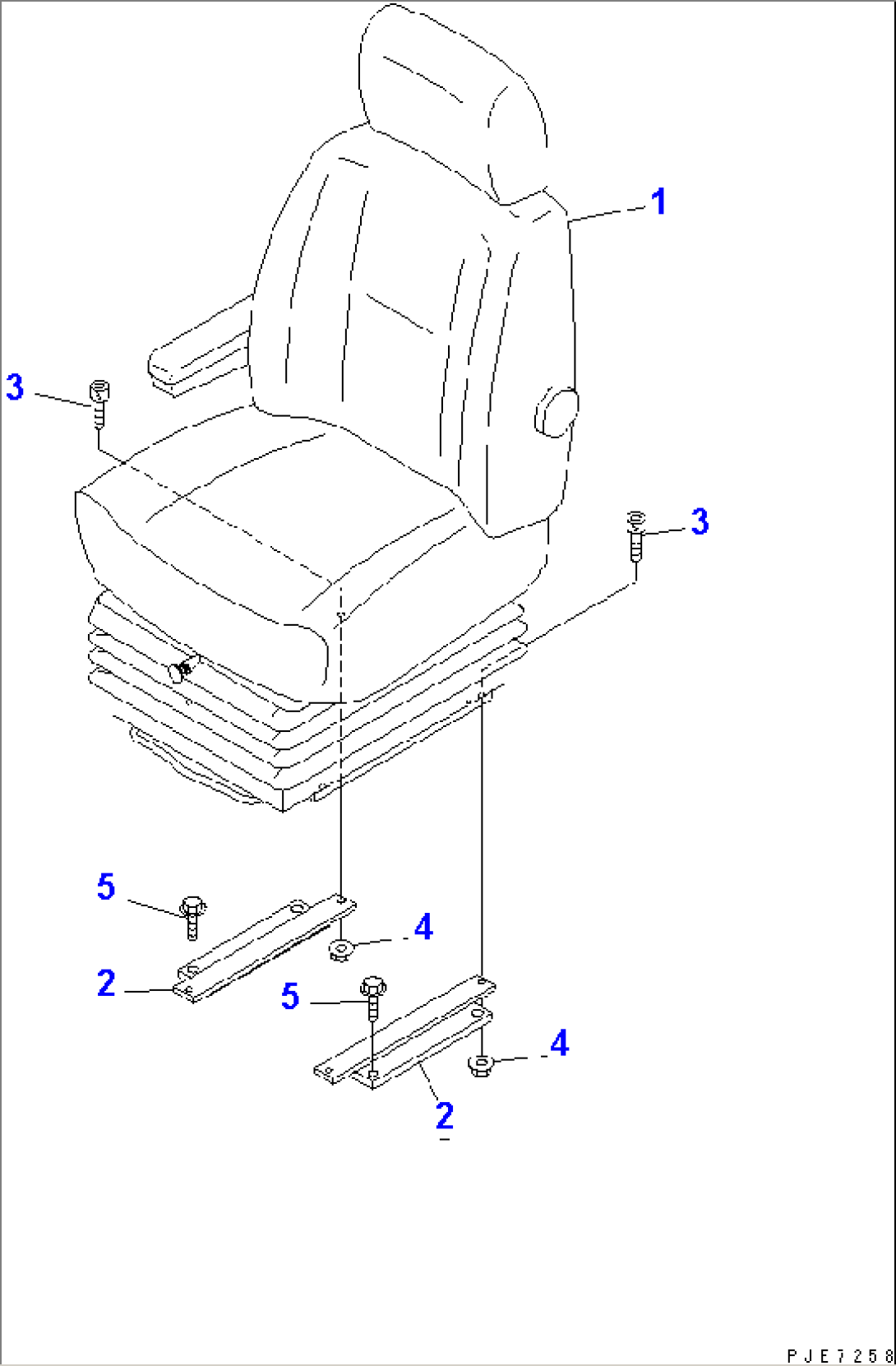

OPERATOR'S SEAT (AIR SUSPENSION TYPE¤ 1/2)(#52001-)
