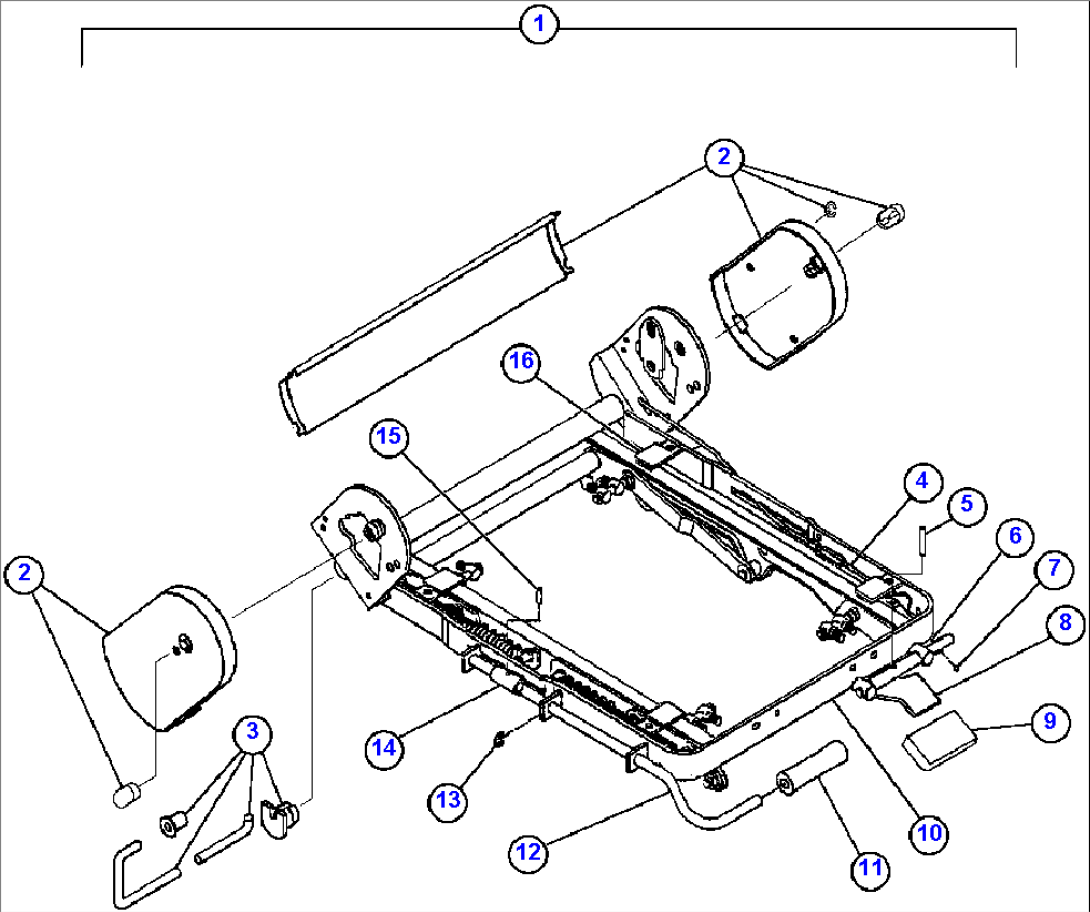

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE8861 | SEAT FRAME ASSEMBLY | ||
| 2 | BF0090 | KIT, SIDE PLATE | ||
| 3 | VE4569 | KIT, TORSION BAR | ||
| 4 | BF0463 | CABLE, BACK RELEASE | ||
| 5 | BF0464 | PIN, BACK ADJUST | ||
| 6 | BF0465 | ROD, BACK ADJUST | ||
| 7 | PLUG, BACK (1) | |||
| 8 | BF0467 | LEVER, BACK ADJUST | ||
| 9 | BF0089 | HANDLE, BACK ADJUST | ||
| 10 | BF0445 | FRAME, SEAT | ||
| 11 | BF0444 | HANDLE | ||
| 12 | BF0469 | ROD | ||
| 13 | VE4582 | RING, SNAP | ||
| 14 | BF0468 | LATCH | ||
| 15 | BF0470 | PIN | ||
| 16 | LA0344 | PAD, FELT | ||
| NS|17 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|18 | (SEE PRECEDING & FOLLOWING PAGES FOR BALANCE OF PARTS.) |
