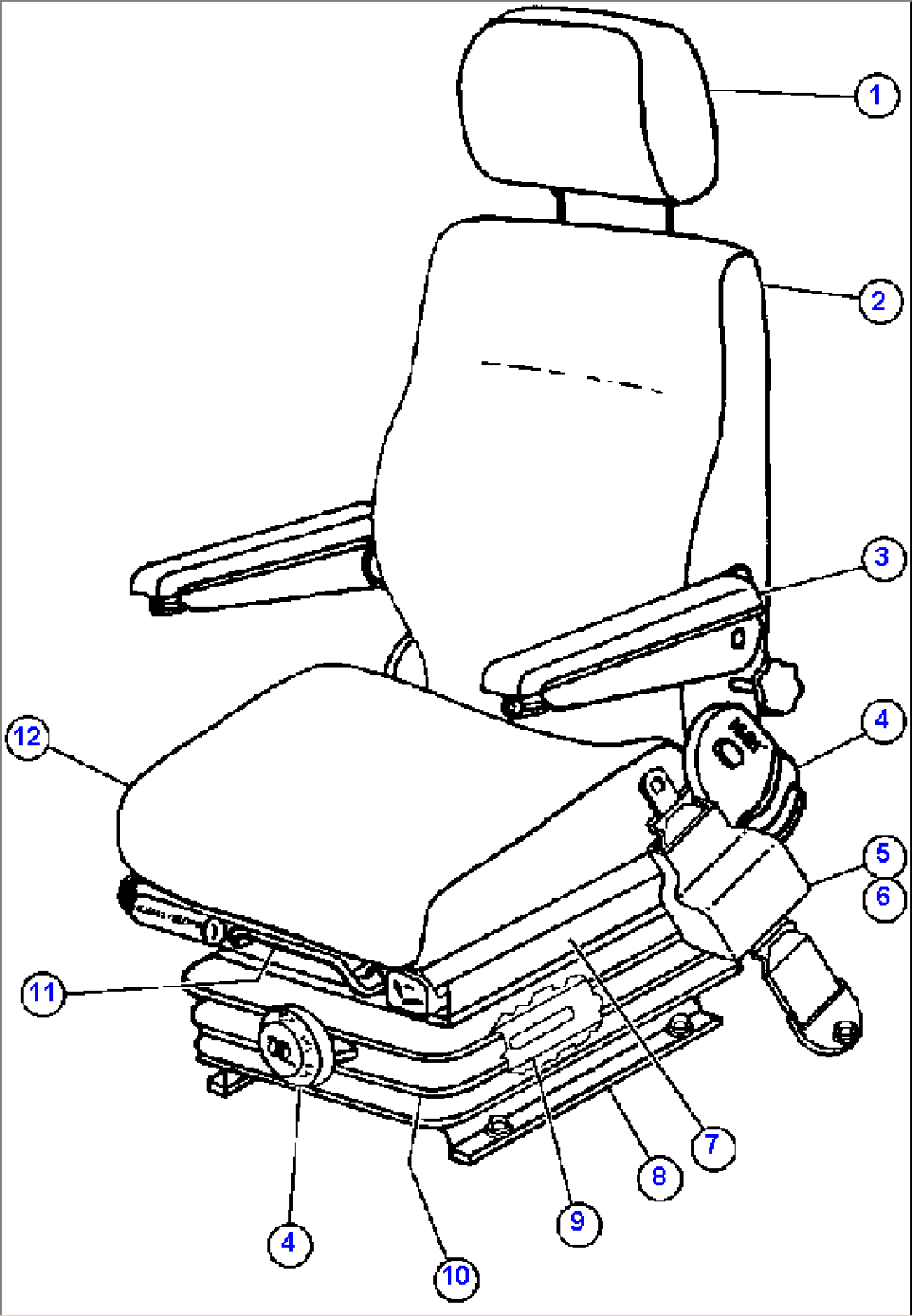

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE2962 | HEADREST (1) | ||
| 2 | BF2745 | BACKREST ASSM (1) | ||
| 3 | VE4557 | ARMREST SET (1) | ||
| 4 | BF2746 | SEAT FRAME ASSM (1) | ||
| 5 | BF2753 | KIT, SEAT BELT | ||
| 6 | BF2750 | BAR, ICP (1) | ||
| 7 | BF2747 | SPACER, STATIC (1) | ||
| 8 | BF2752 | RISER | ||
| 9 | BF2749 | SUSPENSION ASSM (1) | ||
| 10 | BF2751 | KIT, BOOT (1) | ||
| 11 | BF2748 | KIT, SLIDE (1) | ||
| 12 | VE8860 | SEAT PAN ASSM (1) | ||
| NS|13 | NOTE: NS = NOT SHOWN | |||
| NS|14 | LA0323 | BOLT, HEX HEAD | ||
| NS|15 | LA0324 | SCREW, SEAT PAN | ||
| NS|16 | LA0325 | LOCKNUT, NYLON HEX | ||
| NS|17 | VE8707 | SPACER | ||
| NS|18 | VE8871 | BOLT, HEX HEAD - M8 X 25 | ||
| NS|19 | VE8872 | WASHER, SPLIT LOCK | ||
| NS|20 | NOTE: (1) INCLUDED IN PB9771 SEAT ASSEMBLY. | |||
| NS|21 | SEE FOLLOWING PAGES. |
