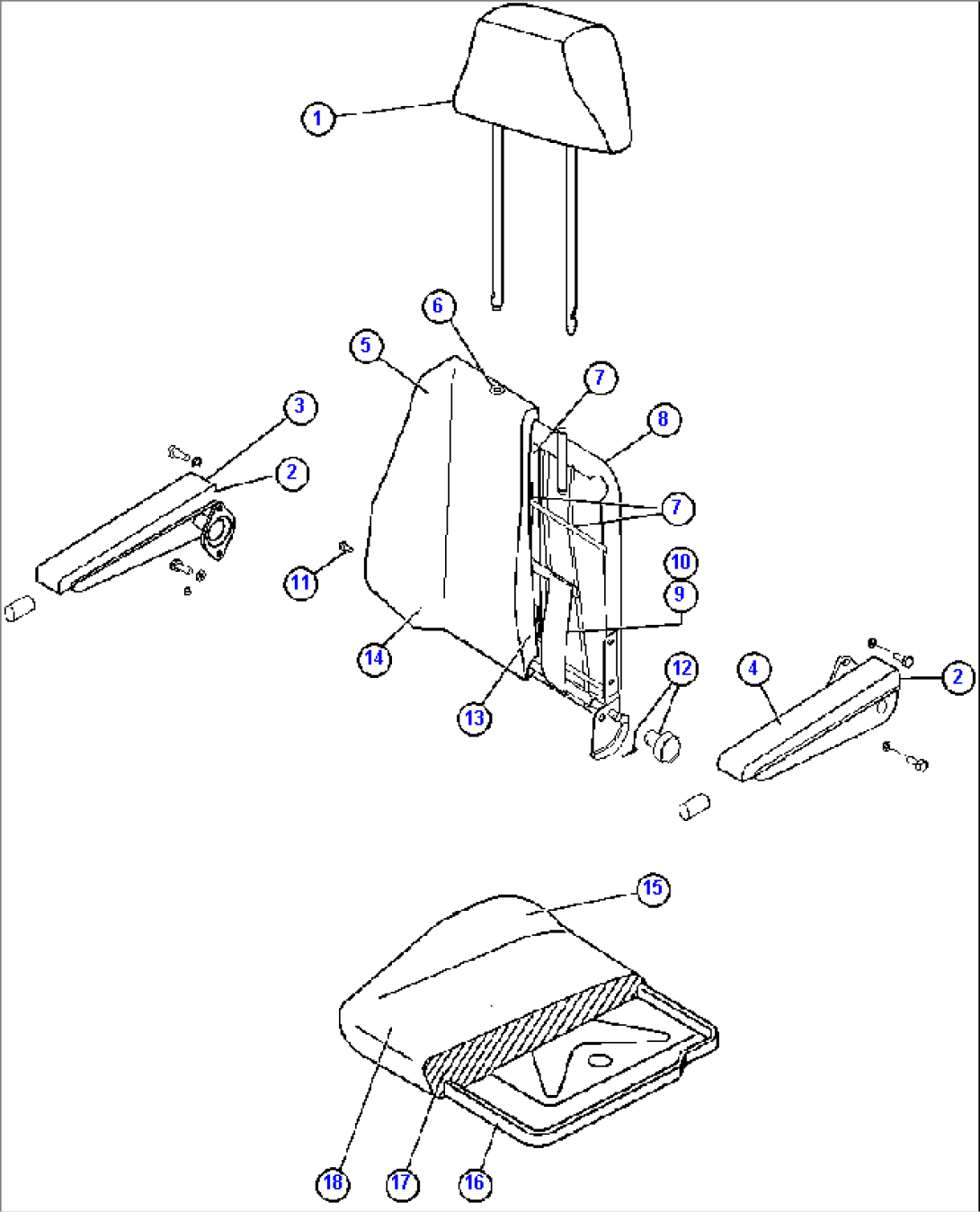

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE2962 | HEADREST | ||
| 2 | VE4557 | ARMREST SET | ||
| 3 | VE8728 | KIT, ARMREST - R.H. | ||
| 4 | VE8727 | KIT, ARMREST - L.H. | ||
| 5 | BF2745 | BACKREST ASSM | ||
| 6 | FERRULE (1) | |||
| 7 | LA0335 | KIT, HARDWARE | ||
| 8 | VE4566 | FRAME, BACKER | ||
| 9 | BF2756 | KIT, MECHANICAL LUMBAR | ||
| 10 | BF2807 | MECHANICAL LUMBAR - L.H. | ||
| 11 | VE8707 | BOLT | ||
| 12 | BF2757 | KIT, KNOB | ||
| 13 | BF2754 | FOAM, BACKREST | ||
| 14 | BF2755 | BACKREST, UPPER | ||
| 15 | VE8860 | SEAT PAN ASSM | ||
| 16 | PAN, SEAT (1) | |||
| 17 | FOAM, SEAT (1) | |||
| 18 | UPHOLSTERY, SEAT (1) | |||
| NS|19 | NOTE: (1) NOT SERVICED SEPARATELY |
